On And Off Grid Solar Mounting Bracket Solar System Ground PV Solar Bracket
Contact Person : Hanna
Phone Number : 86-18702773499
WhatsApp : +8618702773499
| Minimum Order Quantity : | 1000 Watt/Watts | Price : | US $0.05-0.18 / Watts |
|---|---|---|---|
| Packaging Details : | 1.Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safety and waterproof. 2.Customized packing | Delivery Time : | within 15-25 work days after receipt deposit |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 100000 Watt/Watts per Week |
| Place of Origin: | China | Brand Name: | TIANFON |
|---|---|---|---|
| Certification: | SGS,ISO 9001,ISO 14001,OHSAS 18001 | Model Number: | Solar Panel Ground Mounting Systems |
|
Detail Information |
|||
| Name: | Ground Base Solar Panel Mounting System Installation | Specification: | As Required |
|---|---|---|---|
| Application: | Utility-scale Solar Mounting System | Material: | Q235B,Q345B |
| Tilt Angle: | 10/15/20/30/ Customized | Color: | Natural Or Customized |
| High Light: | solar panel power system,solar panel mounting system |
||
Product Description

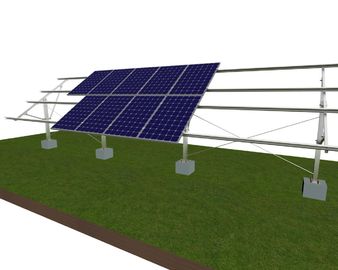

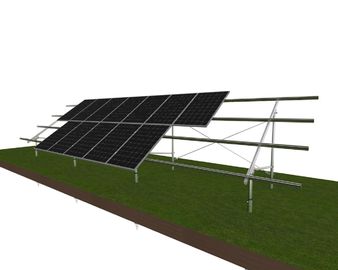

Screw Foundation Ground Base Solar Panel Mounting System Installation

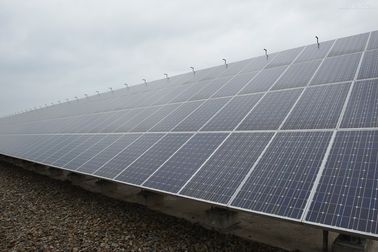

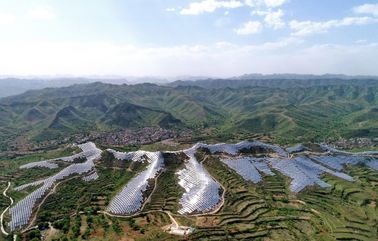

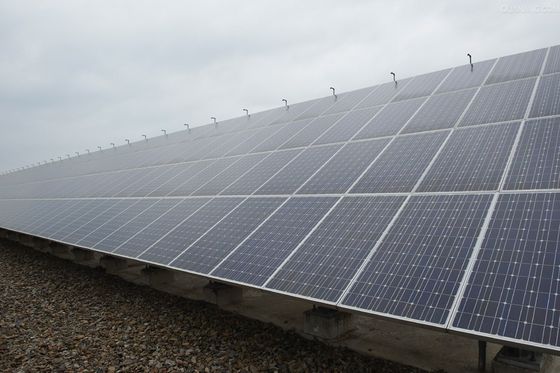

Solar Ground Mounting System is suitable for flat concrete roof and a large array PV system in open terrain. The system is designed to minimize the number of footings installed, and greatly reduce labor.
The special tilt-in module, the clamp, and the system can be modified to be installed that make the installation easy and quick. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.
Parameter:
| Product Name | Solar Ground Mounting System |
| Installation Site | Open Field/ Ground / Earth / Concrete Ground |
| Material | Steel Q235, Q245, Aluminum 6005-T5 |
| Color | Silver Or Customized |
| Wind Speed | 60m/s |
| Snow Load | 1.4KN/m2 |
| Module Angle | 10-60 Degrees According to Your Requirement or Latitude |
| Warranty | 10 Years |
| Service Life | 25 Years |
| Components Parts | Leg Cap; Front/Rear Leg; Fix Ring; Cross Pipe; U Connector; Rail; Mid Clamp; End Clamp;Enforcement Pipe |
Benefits:
►Easy Installation
Parts have been high pre-assembly on the factory to save your installation time.
►Flexibility and Adjustable
Smart design reduces the difficulty of the installation on the most condition.
►Maximum Lifespan
All components are made of quality extruded aluminum, C-steel, and stainless steel. The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.
