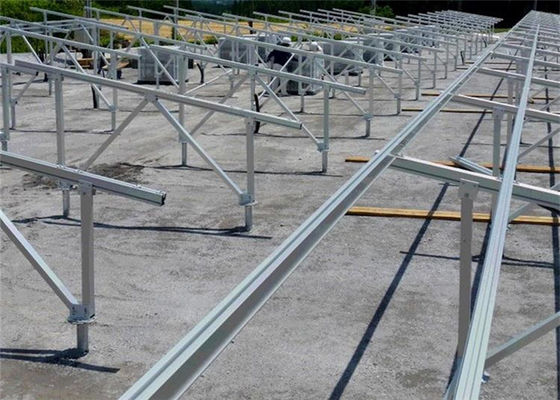

Steel Foundation Ground Screw Piles Solar Arrays PV Racking Ground Mounts

Basic Information
Place of Origin: CHINA
Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000
Model Number: Ground Screw Piles
Minimum Order Quantity: 5 set
Price: USD800-2000/set
Packaging Details: standard export packing
Delivery Time: 15-25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30MW/month
Contact Now
Detail Information
Name: Solar Arrays PV Racking Ground Mounts Material: Steel Q235B
Thickness: 3~3.5mm Diameters: 76 Mm~200 Mm
Length: 500~2500 Mm Install Site: All Types Of Soil

Product Description

Steel Foundation Ground Screw Piles Solar Arrays PV Racking Ground Mounts



Ground Screw Piles is the preferred foundation in many applications, such as Photovoltaic Solar Farm construction, Timber-frame Housing, Timber Decking, Street Light and Fence construction, Temporary Site Accommodation, Bill Board/Advertising Signs and many more applications.



Features

  •  Can be removed for temporary applications
  •  Are easily transported to remote sites
  •  Torque is a strong verification of capacity
  •  Can be installed through ground water without casing
  •  Typically required less time to install
  •  Can be installed at a better angle for added laterial risistance
  •  Can be installed with smaller more accessible equipment
  •  Are installed with low noise and minimal vibrations
  •  Can be grouted in place after installation
  •  Can be galvanized for corrosion resistance
  •  Eliminate concrete curing and formwork
  •  Do not produce drill spoil
  •  Minimize disturbance to environmentally sensitive sites
  •  Reduce the number of truck trips to a site
  •  Are cost effective



Name

Size(mm)

Thickness(mm)

Material

Surface treatment


Piles with flange

φ 76/89,1000-2000mm(Length)

4

Q235B

Hot-Dip Galvanizing

Steel Foundation Ground Screw Piles Solar Arrays PV Racking Ground Mounts

Piles without flange

φ 76/89,1000-2000mm(Length)

4

Q235B

Hot-Dip Galvanizing

Steel Foundation Ground Screw Piles Solar Arrays PV Racking Ground Mounts

Steel pipe piles

φ 76/89,1000-2000mm(Length)

4

Q236B

Hot-Dip Galvanizing

Steel Foundation Ground Screw Piles Solar Arrays PV Racking Ground Mounts



Products can be customized according to customer requirement.



Steel Foundation Ground Screw Piles Solar Arrays PV Racking Ground Mounts



Steel Foundation Ground Screw Piles Solar Arrays PV Racking Ground Mounts
