Q235 Galvanized Steel Profile Mounting Stand Racking Brackets For Solar Panel Mount System

Basic Information
Place of Origin: CHINA
Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000
Model Number: Mounting Stand Racking
Minimum Order Quantity: 2000 pcs
Price: USD50-300/pcs
Packaging Details: standard export packing
Delivery Time: 15-25 work days
Supply Ability: 200000 pcs/month
Detail Information
Grade: Q235,Q345 Application: PV Mounting Structure
Technique: Hot Rolled Steel Channel Surface Treatment: Galvanized Coated
Certificates: ISO Length: 1-6m Customer's Requiremnts
High Light:

steel channel sections

,

steel extrusion profiles


Product Description

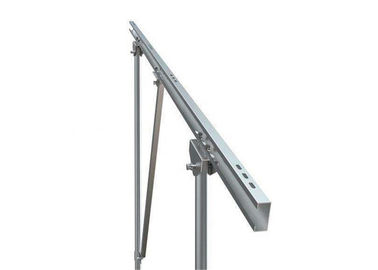

Mounting Stand Racking, Brackets For Solar Panel Mount System



Strut channel is used to mount, brace, support, and connect lightweight structural loads in building construction. These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems. Strut channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment racks, etc. Specially made sockets are available to tighten nuts; bolts etc.

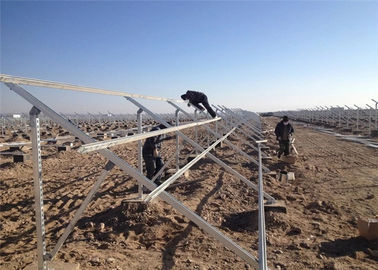

As the main structure of the pv mounting system,the galvnized steel are made by good quality Q235B and Q345B.The performance of load-bearing,wind resistance and seismic resistance has been given sufficient consideration,which will ensure the safety of the system.



Product feature:

High strength

Easy to install

Corrosion resistant

Long lifetime



Name



Size(mm)



Thickness(mm)



Material



Surface treatment



Photo 1



Photo 2

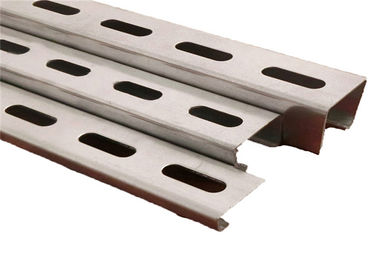

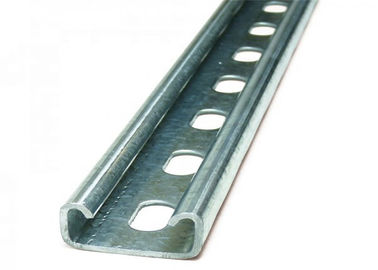

C type steel

C40*40*10

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

Q235 Galvanized Steel Profile Mounting Stand Racking Brackets For Solar Panel Mount System 0

Q235 Galvanized Steel Profile Mounting Stand Racking Brackets For Solar Panel Mount System 1

C60*40*15

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

C80*40*15

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

C100*50*15

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

C120*50*20

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

U type steel

U41*21

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

Q235 Galvanized Steel Profile Mounting Stand Racking Brackets For Solar Panel Mount System 2

Q235 Galvanized Steel Profile Mounting Stand Racking Brackets For Solar Panel Mount System 3

U41*41

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

U52*41

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

U62*41

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

U72*41

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

Round tube

φ60

2.5

Q235B/Q345B

Hot-Dip Galvanizing

Q235 Galvanized Steel Profile Mounting Stand Racking Brackets For Solar Panel Mount System 4

Q235 Galvanized Steel Profile Mounting Stand Racking Brackets For Solar Panel Mount System 5

φ60

3.0

Q235B/Q345B

Hot-Dip Galvanizing

φ76

4.0

Q235B/Q345B

Hot-Dip Galvanizing

φ89

4.0

Q235B/Q345B

Hot-Dip Galvanizing

Square tube

40*40

2.0-2.5

Q235B/Q345B

Hot-Dip Galvanizing

Q235 Galvanized Steel Profile Mounting Stand Racking Brackets For Solar Panel Mount System 6

Q235 Galvanized Steel Profile Mounting Stand Racking Brackets For Solar Panel Mount System 7

Rectangular tube



60*40

2.0-3.0

Q235B

Hot-Dip Galvanizing

Q235 Galvanized Steel Profile Mounting Stand Racking Brackets For Solar Panel Mount System 8

Q235 Galvanized Steel Profile Mounting Stand Racking Brackets For Solar Panel Mount System 9

80*40

2.0-3.0

Q235B

Hot-Dip Galvanizing



Products can be customized according to customer requirement.
