Al 6005 T5 End Solar Panel Clamps Mounted Middle Commercial Roof Ground Installation Site

Basic Information
Place of Origin: CHINA
Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000
Model Number: Solar Panel Clamps
Minimum Order Quantity: 2000 set
Price: USD5-50/set
Packaging Details: standard export packing
Delivery Time: 15-25 work days
Supply Ability: 200000 set/month
Detail Information
Specification: Normal Application: Commercial
Type: Solar End Clamp Installation Site: Roof & Ground
Max Wind Load: 60m/s Max Snow Load: 1.4 KN/m2
High Light:

solar panel mounting clamps

,

solar mounting clamps


Product Description

Al 6005 T5 Solar Panel Mounted Middle Clamp End Clamp Solar Panel Clamps



Short Description:



The mid clamp and end clamp for solar module for solar mount racking structure made of extruded anodized aluminum,with universal and adjustable clamp to realize 30-50mm framed and 5~7.5mm thin film solar panel installation.



Product Feature:



Flexibility: roof mount, pole mount, ground mount, ballasted mount, etc both for on grid and off-grid systems, for framed and frameless panels

Easy Installation: All kits are highly assembled in factory. The tilt in module can be located in any location of rails

MOQ: Sample orders are allowed

Delivery Time: 7-15 days when orders are confirmed



Name



Size



Material



Surface treatment



Photo 1



Photo 2

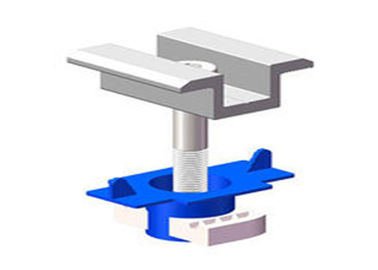

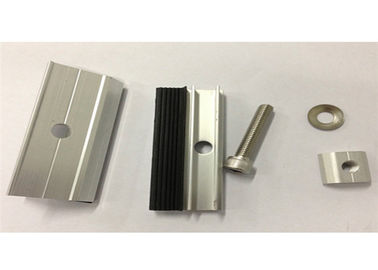

Middel clamp

35/40/45/50mm

Aluminum 6063-T5

Anodizing

Al 6005 T5 End Solar Panel Clamps Mounted Middle Commercial Roof Ground Installation Site 0

Al 6005 T5 End Solar Panel Clamps Mounted Middle Commercial Roof Ground Installation Site 1

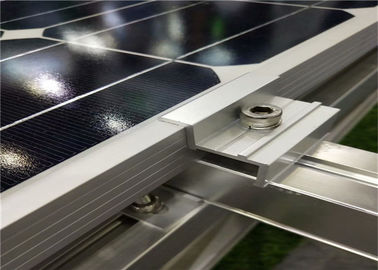

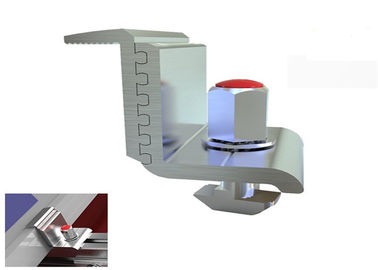

End clmap

35/40/45/50mm

Aluminum 6063-T5

Anodizing

Al 6005 T5 End Solar Panel Clamps Mounted Middle Commercial Roof Ground Installation Site 2

Al 6005 T5 End Solar Panel Clamps Mounted Middle Commercial Roof Ground Installation Site 3

Middle clamp for thin module

80/100/120mm

Aluminum 6063-T5

Anodizing

Al 6005 T5 End Solar Panel Clamps Mounted Middle Commercial Roof Ground Installation Site 4

Al 6005 T5 End Solar Panel Clamps Mounted Middle Commercial Roof Ground Installation Site 5

End clamp for thin module

80/100/120mm

Aluminum 6063-T5

Anodizing

Al 6005 T5 End Solar Panel Clamps Mounted Middle Commercial Roof Ground Installation Site 6

Al 6005 T5 End Solar Panel Clamps Mounted Middle Commercial Roof Ground Installation Site 7

Trapezoidal clamp

345mm

Aluminum 6063-T5

Anodizing

Al 6005 T5 End Solar Panel Clamps Mounted Middle Commercial Roof Ground Installation Site 8



Lysaght clamp

345mm

Aluminum 6063-T5

Anodizing

Al 6005 T5 End Solar Panel Clamps Mounted Middle Commercial Roof Ground Installation Site 9



Standing seam roof clamp

345mm

Aluminum 6063-T5

Anodizing

Al 6005 T5 End Solar Panel Clamps Mounted Middle Commercial Roof Ground Installation Site 10



Al 6005 T5 End Solar Panel Clamps Mounted Middle Commercial Roof Ground Installation Site 11
