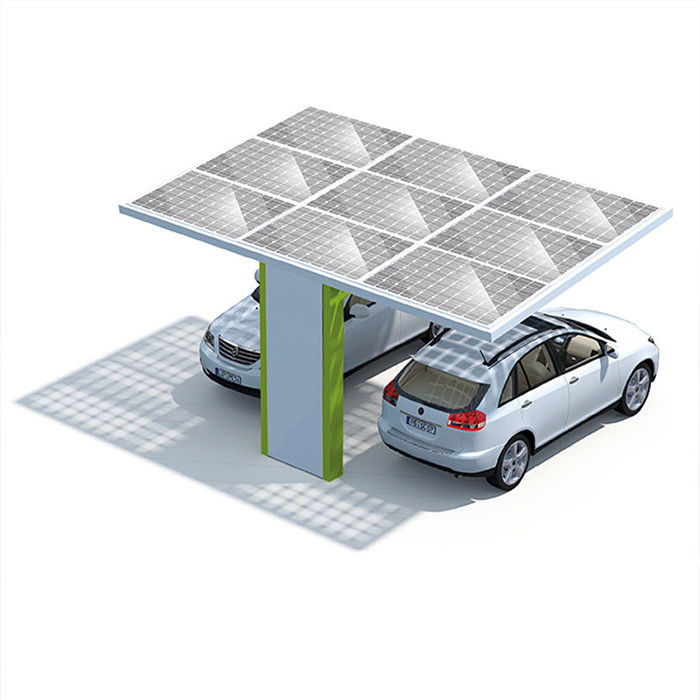

On Off Grid Thickness 15mm PV Carport Solar Systems For Private Parking Lot

Minimum Order Quantity : 5 set Price : USD500-1000/set
Packaging Details : standard export packing Delivery Time : 15-25 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 30MW/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Carport Solar Systems

Detail Information

Type: On/off Grid Surface Treatment: Galvanized,Anodized
Feature: Easy & Quick Installation Installation Angle: Customized
Engineering Service: Acceptable Thickness: 0.5mm-15mm
High Light:

15mm PV Carport Solar Systems

,

On Grid Carport Solar Systems

,

Off Grid Carport PV System

Product Description

On/off grid Thickness 0.5mm-15mm PV Carport Solar Systems For Private Parking Lot



Photovoltaic carport is a new type of power generation method, and it is also a development trend in the future. It is mainly composed of a bracket system, a battery component array, a lighting and control inverter system, a charging device system, and a lightning protection and grounding system.


Using solar energy to generate electricity, no emissions, no noise, no pollution, is a green and environmentally friendly clean energy.
This system uses high-strength carbon steel photovoltaic bracket, and the surface is treated with high-quality hot-dip galvanizing, which has strong corrosion resistance and is suitable for various natural environments.



Data:



Wind Load: 30m/s~60m/s


Snow Load: 0.5KN-1.5KN


Panel array: Landscape



Support system: columns, inclined beams, purlins


Fastener: Stainless steel SS304


Surface Treatment: Hot-Dipped Galvanization or Anodizing


Standard ground clearance: 2500mm



With great flexibility, the carport can be used for both commercial and residential areas.
We offer different design options for your option. They are suitable for both framed and thin film modules in any size.



Product Parameter :



  Application   Private, Government and Enterprise’s Parking Lot
  Material   Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. / Q235 hot dip galvanizing Coating over 65um
  Rows   4/5/6
  Span(E-W)   5000mm
  Tilt Angle   5~15 degree
  Lowest height   2.5m
  Width of space   2.5~3m
  Length of space   6m
  Warranty   10 years
  Duration   More than 25 years



Product Feature:



1. Good heat absorption, convenient installation, and low cost.


2. Lightweight, high strength and recyclable material


3. Faster/ Quick/secure installation, saving schedule


4. All products are made by experienced skilled staffs to operate quality. With strictly full inspected and controlled by Qc department


5. High reliability, 10-year quality Assurance


6. According to the practical requirement, The system could be planed and customized on the factory to eliminate the welding and cut onsite to save your time and money.

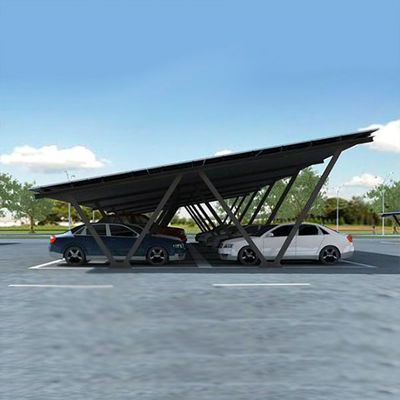

Installation & Application:



On Off Grid Thickness 15mm PV Carport Solar Systems For Private Parking Lot 0



On Off Grid Thickness 15mm PV Carport Solar Systems For Private Parking Lot 1



On Off Grid Thickness 15mm PV Carport Solar Systems For Private Parking Lot 2



Packaging & Delivery:



On Off Grid Thickness 15mm PV Carport Solar Systems For Private Parking Lot 3



► Payment Terms: L/C,D/A,D/P,T/T



Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface



► Port: Tianjin, Shanghai, Qingdao



Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits



Certification:



On Off Grid Thickness 15mm PV Carport Solar Systems For Private Parking Lot 4

On Off Grid Thickness 15mm PV Carport Solar Systems For Private Parking Lot 5
