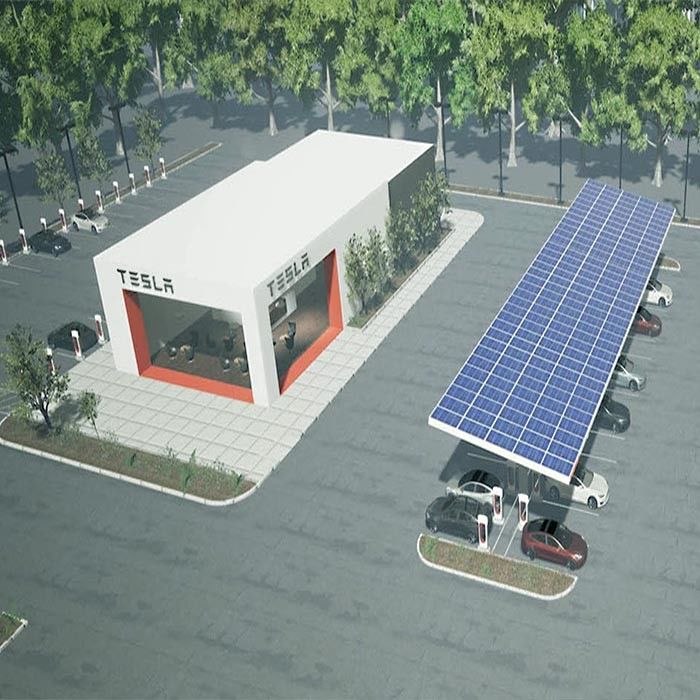

Anodized Photovoltaic Panel Structure For Carport

Minimum Order Quantity : 5 set Price : USD500-1000/set
Packaging Details : standard export packing Delivery Time : 15-25 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 30MW/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Carport Solar Systems

Detail Information

Install Site: Open Ground Tilt Angle: 10-60°
Max.Wind Speed: 60m/s Max. Snow Load: 1.4KN/m2
Material: Al 6005-T5 & SUS 304 & Q235,Q345 Anticorrosive: Anodized Aluminum & Galvanized & Stainless Steel
High Light:

Anodized Photovoltaic Panel Structure

,

Carport Photovoltaic Panel Structure

,

Anodized PV Mounting Structure

Product Description



Anodized Photovoltaic Panels Mounting Structures For Carport



Photovoltaic panels replace the membrane structure steel roof of the traditional carport. The blue photovoltaic panels shine in the sun, adding a beautiful scenery.


They make full use of the original site and provide green energy. The construction of parking lots in factory parks, business districts, hospitals, schools and other places can solve the problem of high temperature inside the car in the open-air parking lot in summer.


Generally, steel support is used, because it is simple and elegant, fashionable and beautiful, which is a clean and environmentally friendly new energy and effectively relieves the social environment and energy pressure.



Product Parameter :



Application: Private, Government and Enterprise’s Parking Lot


Width of space: 2.5~3m


Lowest height: 2.5m


Length of space: 6m


Material: Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. / Q235 hot dip galvanizing Coating over 65um



Support system: columns, inclined beams, purlins



Fastener: Stainless steel SS304


Surface Treatment: Hot-Dipped Galvanization or Anodizing


  Panel array:   Landscape
  Span(E-W):   5000mm
  Standard ground clearance:   2500mm
  Installation Angel:   5deg-15deg
  Max Wind Speed:   up to 42m/s
  Max Snow Load:   up to 1.4KN/m2
  Rows:   4/5/6
  Warranty   10 years warranty and 25 years duration
  Duration   More than 25 years



Installation:



Anodized Photovoltaic Panel Structure For Carport 0



Product Feature:



► Professional customized design
Products were designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.



► Flexibility and Adjustable
Smart design reduces the difficulty of the installation on the most condition.



► Easy Installation
Parts have been high pre-assembly on the factory to save your installation time.



► Great Compatibility
The Tianfon mounting system compatible with most of the major framed and frameless PV modules on the market.



► Energy saving and environmental protection. Using solar energy to generate electricity, no emissions, no noise, no pollution, is a green and environmentally friendly clean energy.



► Maximum Lifespan:
All components are made of quality extruded aluminum, C-steel, and stainless steel. The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.



Application:



Anodized Photovoltaic Panel Structure For Carport 1



Anodized Photovoltaic Panel Structure For Carport 2



Packaging & Shipping:



Anodized Photovoltaic Panel Structure For Carport 3



Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits



► Payment Terms: L/C,D/A,D/P,T/T



Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface



► Port: Tianjin, Shanghai, Qingdao



Certificates:



Anodized Photovoltaic Panel Structure For Carport 4

Anodized Photovoltaic Panel Structure For Carport 5
