Solar Power PV Module Mounting Structure Brackets Kit Hot dip galvanizing

Minimum Order Quantity : 1000 Watt/Watts Price : US $0.05-0.18 / Watts
Packaging Details : 1.Carton box,wooden pallet 2.Customized packing Delivery Time : within 15-25 work days after receipt deposit
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100000 Watt/Watts per Week
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000,TUV,CE Model Number: TF-G005

Detail Information

Application: Private, Government And Enterprise's Parking Lot Surface Treatment: Hot Dip Galvanizing And Anodized
Thickness: 0.5mm-15mm Type: On Grid System, Off Grid System
Duration: 25 Years Warranty: 10 Years
Installation Angle: 5~45° Wind Load: ≤60m/s
Snow Load: ≤1.4KN/m² Material: Q235B, Q345B, Component Aluminum Alloy & Stainless Steel Etc., Customized Upon Requirement.
Port: Tianjin, Shanghai, Qingdao,ningbo, Xiamen Payment Terms: L/C,D/A,D/P,T/T
Delivery Detail: Delivery Time:7--25 Days After Receiving Customer’s Deposits
High Light:

Solar Power PV Module Mounting Structure

,

Hot Dip Galvanizing Module Mounting Structure

,

Q235B Solar Module Mounting Structure

Product Description

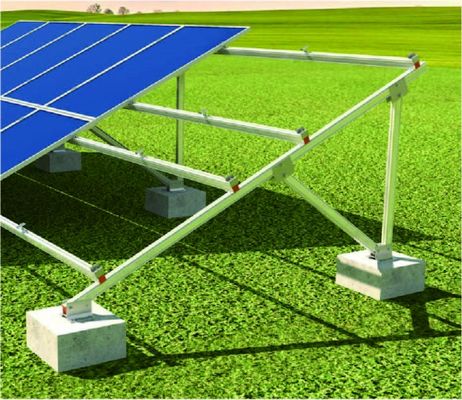

1. solar power plant module mounting structure brackets kit ground mounting system



The Solar Mounting structure is used to fix the solar PV panels and provide support and inclination to the system.
Our ground solar mounting system can be used in desert, glass lands, gobi, ceramic, macadam, shallow sea beach(less than 5m), and other geological environments, the install quality doesn't affect by groundwater.
Depends on the field conditions we come up different foundation design, use the suitable racking post to provide high strength and withstand wind and snow loads and save the labor cost.



2. Benefits:

► The Tianfon mounting system compatible with most of the major framed and frameless PV modules on the market.

► Products were designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.

► The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.

► Reduced installatin times due to high pre-fabrication leve; MInimized assembly time and effort (up to 40%).

► The racking systems can withstand extreme weather condition. The main supporting components have also been tested to ensure their structure and bearing capacity.

► The mounting system suitable for various kinds of project, including residential project, commercial project, utility project and so on.





3. Technical Parameters :



Item Parameter
Application Mountain, Plain, Highland, Desert
Installation Angle Fixed degree,5-45°
Wind Load ≤60m/s
Snow Load ≤1.4KN/m²
Applicable Module Framed or Frameless
Material Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement.
Module Orientation portrait or landscape
Module type Any type of PV moduels
Surface Treatment Hot Dip Galvanizing & Anodized
Warranty 10 years warranty and 25 years duration



4. Detailed Introduction:​​

Solar Power PV Module Mounting Structure Brackets Kit Hot dip galvanizing 0



5. Project Display:

Solar Power PV Module Mounting Structure Brackets Kit Hot dip galvanizing 1Solar Power PV Module Mounting Structure Brackets Kit Hot dip galvanizing 2Solar Power PV Module Mounting Structure Brackets Kit Hot dip galvanizing 3Solar Power PV Module Mounting Structure Brackets Kit Hot dip galvanizing 4Solar Power PV Module Mounting Structure Brackets Kit Hot dip galvanizing 5Solar Power PV Module Mounting Structure Brackets Kit Hot dip galvanizing 6



6. Company introduction:

Solar Power PV Module Mounting Structure Brackets Kit Hot dip galvanizing 7



7. Main products:

Solar Power PV Module Mounting Structure Brackets Kit Hot dip galvanizing 8



8. Certificates:

Solar Power PV Module Mounting Structure Brackets Kit Hot dip galvanizing 9

9.Packing and delivery:



► Place of loading: Basic Seaport, China



► Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface



► Payment Terms: L/C,D/A,D/P,T/T



► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits

Solar Power PV Module Mounting Structure Brackets Kit Hot dip galvanizing 10

10. Cooperate customers:

Solar Power PV Module Mounting Structure Brackets Kit Hot dip galvanizing 11

11. Projects Gallery:

Solar Power PV Module Mounting Structure Brackets Kit Hot dip galvanizing 12

12. Necessary information:

For the solution and quotation, we need some details as the following



No. Item Remarks
1 Location, Country of the Projects
2 What's Total Capacity of solar Project ?
3 Max Wind Speed m/s
4 Snow Load (KN/)
5 which type landform the ground is ?
  A. Offshore Sea and island, coast, lake shore and desert area YES / NO
B. Fields, villages, jungles, hills and sparse houses and suburbs YES / NO
C. Urban areas with dense clusters of buildings YES / NO
D. Urban areas with dense buildings and high houses YES / NO
6 Foundation Forms
  A. PHC Pile (pretensioned spun high-strength concrete pile) YES / NO
B. Ramming Pile; YES / NO
C. Concrete; YES / NO
D. Bored Pile; YES / NO
E. Others
7 Layout of Solar Panels
8 how many modules per array
9 Size of solar panels
10 Installation angle of solar panels
11 Panel Weight
12 Watts per Solar Panel
13 Requirements on Main Materials of Structure
14 Requirement on the lowest height between solar panels and ground mm
15 How many arrays / units
16 other information
