Aluminium Carport Solar Racking Ground Mounted Solar structure carport solar mounting system

Minimum Order Quantity : 1000 Watt/Watts Price : US $0.05-0.18 / Watts
Packaging Details : 1.Carton box,wooden pallet 2.Customized packing Delivery Time : within 15-25 work days after receipt deposit
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100000 Watt/Watts per Week
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000,TUV,CE Model Number: TF-G025

Detail Information

Application: Private, Government And Enterprise's Parking Lot Surface Treatment: Hot Dip Galvanizing And Anodized
Thickness: 0.5mm-15mm Type: On Grid System, Off Grid System
Duration: 25 Years Warranty: 10 Years
Installation Angle: 5~30° Wind Load: ≤60m/s
Snow Load: ≤1.4KN/m² Material: Q235B, Q345B, Component Aluminum Alloy & Stainless Steel Etc., Customized Upon Requirement.
Port: Tianjin, Shanghai, Qingdao,ningbo, Xiamen Payment Terms: L/C,D/A,D/P,T/T
Delivery Detail: Delivery Time:7--25 Days After Receiving Customer’s Deposits
High Light:

Aluminium Carport Solar Racking

,

Ground Mounted Carport Solar Racking

,

Q235B Ground Mounted Solar Structure

Product Description

1. Carport Solar Racking Mount System Ground Solar Energy Mounting Structures System Aluminium carport



Photovoltaic carport solar mounting system appeared more and more around us, the main function of PV carport is to make use of the solar energy to generate electricity. It can be used to charge the electric vehicles and portable devices; at the night, electricity can also provide energy-efficient lighting, energy conservation and environmental protection, reduce carbon dioxide emissions, in line with the global trend of low-carbon economy, green environmental protection.



2. Benefits:

► The Tianfon mounting system compatible with most of the major framed and frameless PV modules on the market.

► Products were designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.

► The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.

► Reduced installatin times due to high pre-fabrication leve; MInimized assembly time and effort (up to 40%).

► The racking systems can withstand extreme weather condition. The main supporting components have also been tested to ensure their structure and bearing capacity.

► The mounting system suitable for various kinds of project, including residential project, commercial project, utility project and so on.





3. Technical Parameters :



Item Parameter
Application Mountain, Plain, Highland, Desert
Installation Angle Fixed degree,5-45°
Wind Load ≤60m/s
Snow Load ≤1.4KN/m²
Applicable Module Framed or Frameless
Material Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement.
Module Orientation portrait or landscape
Module type Any type of PV moduels
Surface Treatment Hot Dip Galvanizing & Anodized
Warranty 10 years warranty and 25 years duration



4. Detailed Introduction:​​

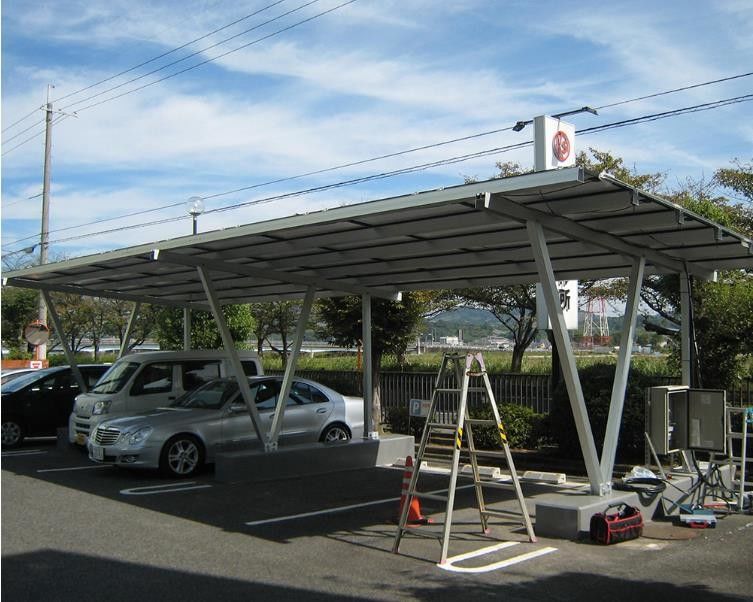

Aluminium Carport Solar Racking Ground Mounted Solar structure carport solar mounting system 0



5. Project Display:

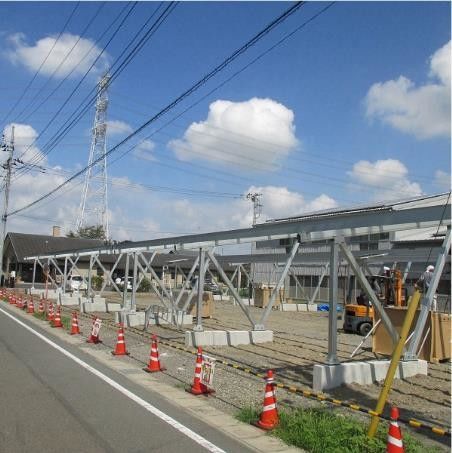

Aluminium Carport Solar Racking Ground Mounted Solar structure carport solar mounting system 1Aluminium Carport Solar Racking Ground Mounted Solar structure carport solar mounting system 2Aluminium Carport Solar Racking Ground Mounted Solar structure carport solar mounting system 3Aluminium Carport Solar Racking Ground Mounted Solar structure carport solar mounting system 4

6. Company introduction:

Aluminium Carport Solar Racking Ground Mounted Solar structure carport solar mounting system 5



7. Main products:

Aluminium Carport Solar Racking Ground Mounted Solar structure carport solar mounting system 6

8. Certificates:

Aluminium Carport Solar Racking Ground Mounted Solar structure carport solar mounting system 7



9.Packing and delivery:



► Place of loading: Basic Seaport, China



► Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface



► Payment Terms: L/C,D/A,D/P,T/T



► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits



10. Cooperate customers:

Aluminium Carport Solar Racking Ground Mounted Solar structure carport solar mounting system 8

11. Necessary information:

For the solution and quotation, we need some details as the following



No. Item Remarks
1 Location, Country of the Projects
2 What's Total Capacity of solar Project ?
3 Max Wind Speed m/s
4 Snow Load (KN/)
5 which type landform the ground is ?
  A. Offshore Sea and island, coast, lake shore and desert area YES / NO
B. Fields, villages, jungles, hills and sparse houses and suburbs YES / NO
C. Urban areas with dense clusters of buildings YES / NO
D. Urban areas with dense buildings and high houses YES / NO
6 Foundation Forms
  A. PHC Pile (pretensioned spun high-strength concrete pile) YES / NO
B. Ramming Pile; YES / NO
C. Concrete; YES / NO
D. Bored Pile; YES / NO
E. Others
7 Layout of Solar Panels
8 how many modules per array
9 Size of solar panels
10 Installation angle of solar panels
11 Panel Weight
12 Watts per Solar Panel
13 Requirements on Main Materials of Structure
14 Requirement on the lowest height between solar panels and ground mm
15 How many arrays / units
16 other information
