Customized Degree Solar PV Ground Mounting Systems Support Frame

Minimum Order Quantity : 1000 Watt/Watts Price : US $0.05-0.18 / Watts
Packaging Details : 1.Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safety and waterproof. 2.Customized packing Delivery Time : within 15-25 work days after receipt deposit
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100000 Watt/Watts per Week
Place of Origin: China Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18001 Model Number: Solar Panel Ground Mounting Systems

Detail Information

Name: Solar PV Ground Mounting Systems Support Frame Application: Utility-scale
Color: Customized Material: Galvanized Q235B,Q345B
Tilt Angle: Customized Installation Time: 7~15working Days (1MW Project)
High Light:

solar panel power system

,

solar panel mounting system

Product Description

Customized Degree Solar PV Ground Mounting Systems Support Frame

The solar mounting is a solution including steel structure and aluminum rails. It is suitable for both small and large-scale solar plants.
It delivers the easy installation and long-term durability that set a solid foundation for successful PV mounting projects.
These products provide the flexibility which makes them be the first choice for a broad range of residential, commercial & industrial installations.

Data:


Usage: Support Solar Modules
Capacity: Strong
Feature: Super quality;Great Compatibility; Quick Installation
Application: Residential project, commercial project, utility project and so on
Technique: Hot Rolled
Processing Service: Bending, Welding, Decoiling, Punching, Cutting
Surface: Hot Dip Galvanizing & Anodized


Parameter:


 Application Mountain, Plain, Highland, Desert
 Installation Site Open Field/ Ground / Earth / Concrete Ground
 Module type Any type of PV moduels
 Color Silver Or Customized
 Wind Speed 60m/s
 Snow Load 1.4KN/m2
 Module Angle 10-60 Degrees According to Your Requirement or Latitude
 Array Layout According to the actual situation
 Material Steel Q235, Q245, Aluminum 6005-T5
 Components Parts Leg Cap; Front/Rear Leg; Fix Ring; Cross Pipe; U Connector; Rail; Mid  Clamp; End Clamp;Enforcement Pipe
 Warranty 10 Years


Benefits:

► Easy Installation
Parts have been highly pre-assembled on the factory to save your installation time.


► Shorten construction period
Due to the high level of prefabrication, installation time is reduced; assembly time and workload are minimized (up to 40%)


► Flexibility and Adjustable
Smart design reduces the difficulty of the installation on the most condition.


►Super quality
All products are made by experienced technicians to ensure quality.With strictly full inspected and controlled by Qc department.


►Customized
According to the project needs, adjust the light transmission rate, and make full use of the land.


► Widely application
The mounting system suitable for various kinds of project, including residential project, commercial project, utility project and so on.

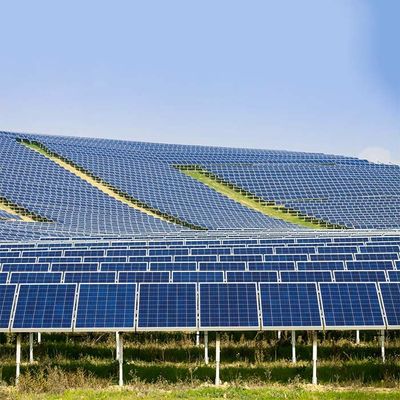

Real Project case:

Customized Degree Solar PV Ground Mounting Systems Support Frame 0

Customized Degree Solar PV Ground Mounting Systems Support Frame 1

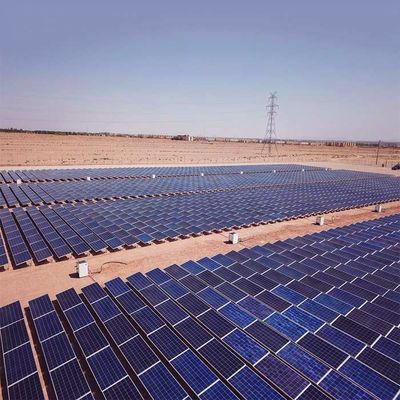

Solar Power Generation Project 81.24MW Located in Pakistan

Packaging & Shipping:

Customized Degree Solar PV Ground Mounting Systems Support Frame 2

Our Certificates:

Customized Degree Solar PV Ground Mounting Systems Support Frame 3
Customized Degree Solar PV Ground Mounting Systems Support Frame 4
