130mph Framed/Frameless Flexible Anodized Solar Panel Ground Mounting Systems
Contact Person : Hanna
Phone Number : 86-18702773499
WhatsApp : +8618702773499
|Minimum Order Quantity :||1000 Watt/Watts||Price :||US $0.05-0.18 / Watts|
|Packaging Details :||1.Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safety and waterproof. 2.Customized packing||Delivery Time :||within 15-25 work days after receipt deposit|
|Payment Terms :||L/C, D/A, D/P, T/T, Western Union, MoneyGram||Supply Ability :||100000 Watt/Watts per Week|
|Place of Origin:||China||Brand Name:||TIANFON|
|Certification:||SGS,ISO 9001,ISO 14001,OHSAS 18001||Model Number:||Solar Panel Ground Mounting Systems|
|Name:||Solar Panel Ground Mounting Systems Racking||Application:||Utility-scale|
|Color:||Natural Or Customized||Material:||Q235B,Q345B Steel|
|Tilt Angle:||10/15/20/30/ Customized||Type:||On/off Grid|
ground mounted pv systems,
solar panel mounting system

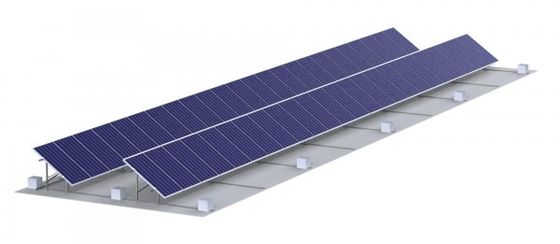

Adjustable Solar Panel Ground Mounting Systems Racking

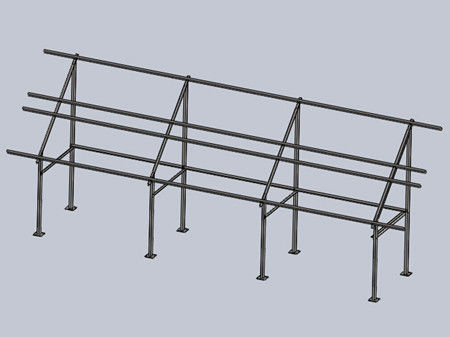

The solar mounting is a solution including steel structure and aluminum rails. It is suitable for both small and large-scale solar plants.
Steel pile mounting system is designed and engineered for each customer’s site specific conditions to minimize the field installation labor and require no field welding, drilling.By using pile driving machine hydraulically push galvanized steel posts into the ground to the required depth without using poured concrete to support a steel racking system, it just takes some seconds to finish a piling pole.
It can be used in desert, glass lands, gobi, crymic, macadam, shallow sea beach(less than 5m), and other geological environments, the install quality doesn't affect by groundwater.
Parts have been high pre-assembly on the factory to save your installation time.
►Flexibility and Adjustable
Smart design reduces the difficulty of the installation on the most condition.
All components are made of quality extruded aluminum, C-steel, and stainless steel.
The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.
|Product Name||Solar Ground Mounting System|
|Installation Site||Open Field/ Ground / Earth / Concrete Ground|
|Material||Steel Q235, Q245, Aluminum 6005-T5|
|Color||Silver Or Customized|
|Module Angle||10-60 Degrees According to Your Requirement or Latitude|
|Service Life||25 Years|
|Components Parts||Leg Cap; Front/Rear Leg; Fix Ring; Cross Pipe; U Connector; Rail; Mid Clamp; End Clamp;Enforcement Pipe|
