Al 6005-T5 & SUS 304 Open Ground Solar Carport Mounting System

Minimum Order Quantity : 5 set Price : USD500-1000/set
Packaging Details : standard export packing Delivery Time : 15-25 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 30MW/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Carport Solar Systems

Detail Information

Specification: As Required Max. Snow Load: 1.4KN/m2
Tilt Angle: 10-60° Max. Wind Speed: 60m/s
Material: Al 6005-T5 & SUS 304 & Hot Galvanized Steel Install Site: Open Ground
High Light:

SUS 304 Solar Carport Mounting System


Al 6005-T5 Solar Carport Mounting System


Open Ground Solar Carport Mounting System

Product Description


5deg-15deg Al 6005-T5 & SUS 304 & Hot Galvanized Open Ground Solar PV Carport


Our carports can defeat strong wind(60m/s) and the high snow load(1.4KN/m2) and can be corrosion resistant(the carport are hot- galvanized finished). It is long life as the solar panel, for 25 years.


Most of the photovoltaic carports are modular in design, which can be used alone or in multiple combinations for easy expansion, ranging from a few parking spaces to hundreds of parking spaces, which is relatively flexible. If ordinary photovoltaic modules are used, the overall cost is lower. If the installed capacity is large, the rate of return is high and the investment recovery period is short.


Solar carports and canopies can be regarded as real, very high ground-mounts. They are very common in commercial settings, especially in schools and business campuses. The reinforced concrete foundation supports huge steel beams and supports the solar panels overhead.


Product Specifications:


  Application   Private, Government and Enterprise’s Parking Lot
  Installation Angel   5deg-15deg
  Color   Natural or Customized
  Fastener   Stainless steel SS304
  Span(E-W)   5000mm
  Standard ground clearance   2500mm
  Panel array   Landscape
  Max Wind Speed   up to 42m/s
  Max Snow Load   up to 1.4KN/m2
  Support system   columns, inclined beams, purlins


The support system mainly includes supporting columns, inclined beams fixed between the supporting columns, purlins connected to the inclined beams for supporting the solar cell module array, and fasteners for fixing the battery module array.


Surface Treatment: Hot-Dipped Galvanization or Anodizing

Material: Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. / Q235 hot dip galvanizing Coating over 65um

Width of space: 2.5~3m

Fastener: Stainless steel SS304

Length of space: 6m

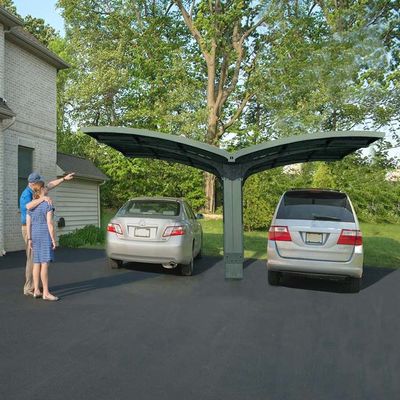

Al 6005-T5 & SUS 304 Open Ground Solar Carport Mounting System 0


Product Feature:


Ⅰ. Competitive price

Ⅱ. Compatible with a variety of foundation and most module types

Ⅲ. Durable, anti-corrosion

Ⅳ. Quick, easy to install while remaing cost competitive

Ⅴ. Complete structural analysis

Ⅵ. Complete documentation and system drawings

Ⅶ. 10 year durability warranty

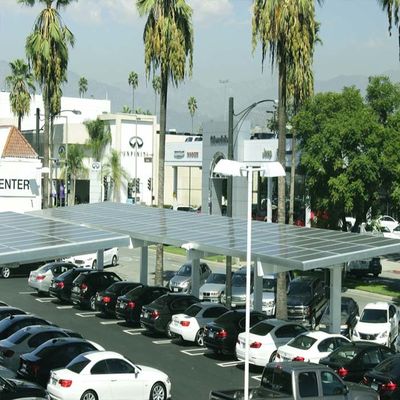

Al 6005-T5 & SUS 304 Open Ground Solar Carport Mounting System 1

Packaging & Delivery:


► Place of loading: Basic Seaport, China


► Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface


► Payment Terms: L/C,D/A,D/P,T/T


► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits

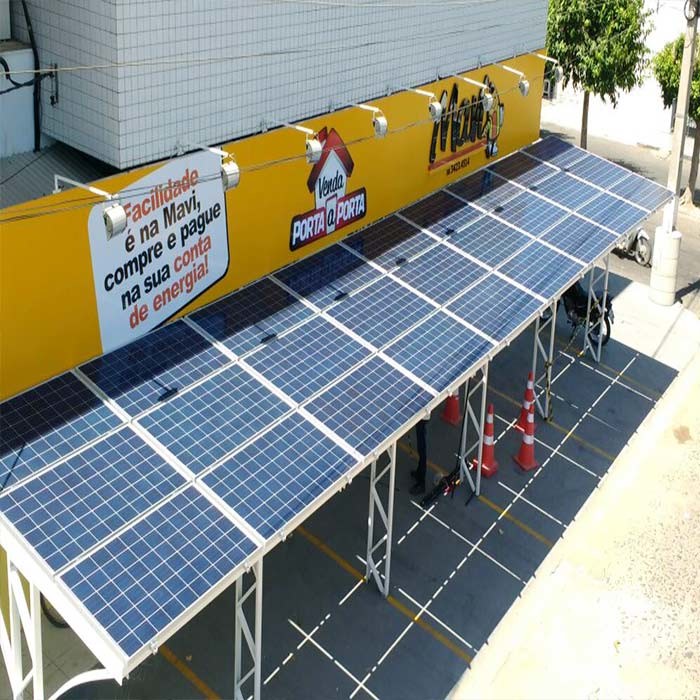

Al 6005-T5 & SUS 304 Open Ground Solar Carport Mounting System 2




Al 6005-T5 & SUS 304 Open Ground Solar Carport Mounting System 3

Al 6005-T5 & SUS 304 Open Ground Solar Carport Mounting System 4
