340 350 360 370 375 380W ERA Mono 72 Cell Advanced Glass Solar Panel

Payment Terms : L/C, T/T Supply Ability : 1000 Watt/Watts
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Solar Panels

Detail Information

Size: 1956x992x40mm Weight: 21.5 Kg
Backsheet (color): TPT In White Company Certificate: ISO9001,ISO14001,ISO18001
Front Cover (material / Thickness): Low-iron Tempered Glass / 3.2mm Cell (quantity / Material / Dimensions): 72 / Monocrystalline Silicon / 156.75x156.75mm
Frame (material / Color): Aluminum Hollow-chamber Frame On Each Side Anodized Aluminum Alloy / Silver Cables & Plug Connectors (protection Degree): 2x900mm / 4mm 2 & MC4 Compatible
Payment Terms: L/C, T/T
High Light:

Advanced Glass Solar Panel

,

ERA Mono Glass Solar Panel

,

Advanced Glass 72 Cell Solar Panel

Product Description

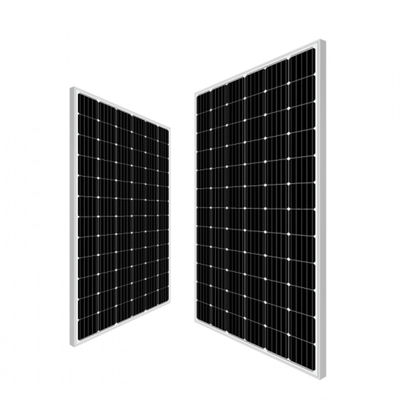

ERA 340W-380W Mono 72 Cells Advanced Glass Solar Panel



We have paced the whole nation in the field of PV industry, not only on its product lines, but also upon its innovation.

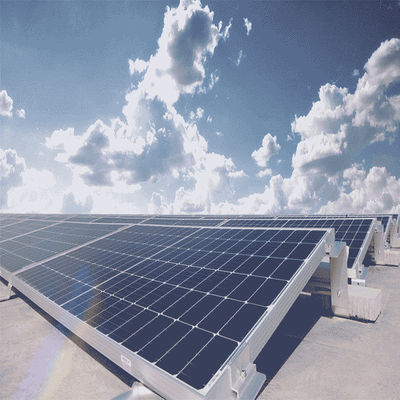

We serves global customers with high-quality products and professional services. The modules can be installed on residential and commercial rooftops, ground-mounted power plants, as floating arrays, and much more.



Other than our competitive prices for pv modules and related solar energy products, we also offer the most comprehensive and accessible customer support for you.



Specifications:



Module type: ESPHSC 340 350 360 370 375 380
Maximum Power(Wp) 340W 350W 360W 370W 375W 380W
Open circuit Voltage(Voc) 46.4V 47.1V 47.7V 48.1V 48.4V 48.7V
Short circuit Current(Isc) 9.45A 9.6A 9.75A 9.85A 9.95A 10A
Maximum Power Voltage(Vm) 38.5V 39.1V 39.6V 40.1V 40.5V 40.8V
Maximum Power Current(Im) 8.84A 8.96A 9.1A 9.23A 9.26A 9.32A
Module efficiency 17.50% 18.00% 18.50% 19.00% 19.30% 19.50%
Maximum Series Fuse 15A
Watts positive tolerance 0~+3%
Number of Diode 3
Standard Test Conditions 1000W/M²,25°C,AM1.5
Maximum System Voltage 1000V/DC
Temperature-Coefficient Isc +0.08558%/°C
Temperature-Coefficient Voc -0.29506%/°C
Temperature-Coefficient Pmpp -0.38001%/°C
Normal Operating Cell Temperature -40°C...+85°C
Load Capacity for the cover of the module (glass) 5400Pa(IEC61215)(snow)
Load Capacity for the front & back of the module 2400Pa(IEC61215)(wind)
Product Certificate TUV(IEC 61215,IEC 61730),CE, ROHS,PID Resisitant,INMETRO
Company Certificate ISO9001,ISO14001,ISO18001



Key Features:



► 5 Busbar Solar Cell:
5 busbar solar cell adopts new technology to improve the efficiency of
modules , offers a better aesthetic appearance, making it perfect for
rooftop installation



► Higher Module Conversion Efficiency:

Higher module output up to 380W with module efficiency up to 20.31%



► Low-light Performance:

Advanced glass and surface texturing allow for excellent performance in low-light environments



Advantages of Solar Energy:



1. Solar energy is kind of universal, decentralized and no -polluting energy.



2. Solar energy is the energy of the sun, which reaches earth in the form of short wave radiation visible light and near ultraviolet light.



3. Solar energy helps considerably in maintaining the ecological balance through the process of photosynthesis and green house effect.



4. Solar energy is bound to achieve great economic importance in future because of depletion trend of convention energy sources.



Project Reference:



340 350 360 370 375 380W ERA Mono 72 Cell Advanced Glass Solar Panel 0



Packaging and delivery:



Container Size Units/Pallet(PCS) Weight/Pallet(KG) Pallet Measurment(mm) Units/Container (PCS)
20GP 26 570 2010x1120x1120 260
40HQ 26 570 2010x1120x1120 649
33 720 2010x1120x1420



340 350 360 370 375 380W ERA Mono 72 Cell Advanced Glass Solar Panel 1



► Package: strong and long distance transportation package



► Place of loading: Basic Seaport, China



► Payment Terms: L/C,D/A,D/P,T/T



► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits



Our Certificates:



340 350 360 370 375 380W ERA Mono 72 Cell Advanced Glass Solar Panel 2

340 350 360 370 375 380W ERA Mono 72 Cell Advanced Glass Solar Panel 3
