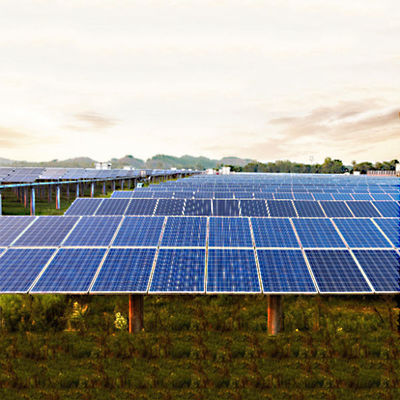

Steel Pile Solar Panel Ground Mounting Systems Rapid Installation 20M Max Building Height

Minimum Order Quantity : 5 set Price : USD800-2000/set
Packaging Details : standard export packing Delivery Time : 15-25 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 30MW/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Solar Panel Ground Mounting Systems

Detail Information

Name: Steel Pile Solar Panel Ground Mounting Systems Thickness: 0.5mm-15mm
Feature: Easy & Quick Installation Engineering Service: Acceptable
Roof Inclination: 0° To 15° Typical Height Clearance: 8' To 15' Typical
High Light:

solar panel power system

,

ground mounted pv systems

Product Description

Steel Pile Solar Panel Ground Mounting Systems Rapid Installation​

Steel pile mounting system is designed and engineered for each customer’s site specific conditions to minimize the field installation labor and require no field welding, drilling.By using pile driving machine hydraulically push galvanized steel posts into the ground to the required depth without using poured concrete to support a steel racking system, it just takes some seconds to finish a piling pole.

Short Description:

► Min.Order Quantity: 5 Set
► Max Building Height: 20m
► Install Angle: 0-60 degree
► Supply Ability: 50000 Set/Sets per Month
► Payment Terms: L/C,D/A,D/P,T/T
► Port : Tianjin,Shanghai,Qingdao


Product Parameter


Type: Ground solar mounting
Material: Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement.
Structural materials: Aluminum Alloy, Hot-Galvanized Steel, Stainless Steel
Module Orientation: Portrait or landscape
Treatment: Anodized, Galvanized
Max Building Height: 20m
Span: As required
Column: Hot rolled plain steel
Beam: C steel

Installation Site: Open Field/ Ground / Earth / Concrete Ground
Components Parts: Leg Cap; Front/Rear Leg; Fix Ring; Cross Pipe; U Connector; Rail; Mid Clamp; End Clamp;Enforcement Pipe



 Application  Mountain, Plain, Highland, Desert
 Installation Angle  5~40°
 Ground Clearance  ≥ 0.15m
 Wind load  130mph(60m/s)
 Snow Load  30psf(1.4kN/m2)
 Module type  Any type of PV moduels
 Surface treatment  Hot Dip Galvanizing & Anodized
 Applicable Module  Framed or Frameless
 Color  Natural or Customized
 Warranty  10 years warranty and 25 years duration
 Array Layout  According to the actual situation



Product feature:

1. Professional Design
Products were designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.


2. Easy Installation
The innovative rail and rail nut have greatly simplified the installation of solar panels. The system can be installed with a single Hexagon Key and standard tool kit. The rail nut and unique rail extension method allow greatly reduced installation times.


3. Safety
The racking systems can stand up to the extreme weather condition. The main support components have also been tested to guarantee its structure and load-carrying capacity.


4. Super quality
All products are made by experienced skilled staffs to operate quality. With strictly full inspected and controlled by Qc department.


5. Flexibility
The flexibility of screw foundation-ground screw or concrete foundation.

Steel Pile Solar Panel Ground Mounting Systems Rapid Installation 20M Max Building Height 0
Packaging & Delivery:

Steel Pile Solar Panel Ground Mounting Systems Rapid Installation 20M Max Building Height 1


► Port: Tianjin, Shanghai, Qingdao

► Payment Terms: L/C,D/A,D/P,T/T



Certification:



Steel Pile Solar Panel Ground Mounting Systems Rapid Installation 20M Max Building Height 2

Steel Pile Solar Panel Ground Mounting Systems Rapid Installation 20M Max Building Height 3
