Frameless Solar Panel Ground Mounting Systems Utility Scale 50 MW Fixed Tilt Anodized Aluminum

Name: Frameless Solar Panel Ground Mounting Systems Utility Scale 50 MW Fixed Tilt Anodized Aluminum
Brand: Henan Tianfon New Energy Tech. Co., Ltd
SKU: Solar Panel Ground Mounting Systems
Price: 0.05 USD
Availability: InStock

Brand Name:	TIANFON
Model Number:	Solar Panel Ground Mounting Systems
MOQ:	1000 Watt/Watts
Price:	US $0.05-0.18 / Watts
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000 Watt/Watts per Week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS,ISO 9001,ISO 14001,OHSAS 18001

Name:

Fixed Tilt Solar Racking And Mounting Systems

Install Site:

Open Ground

Max Wind Speed:

60m/s

Max. Snow Load:

1.4KN/m2

Anticorrosive:

Anodized Aluminum & Galvanized & Stainless Steel

Warranty:

10 Years

Packaging Details:

1.Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safety and waterproof. 2.Customized packing

Supply Ability:

100000 Watt/Watts per Week

Highlight:

ground mounted pv systems

solar panel mounting system

Product Description

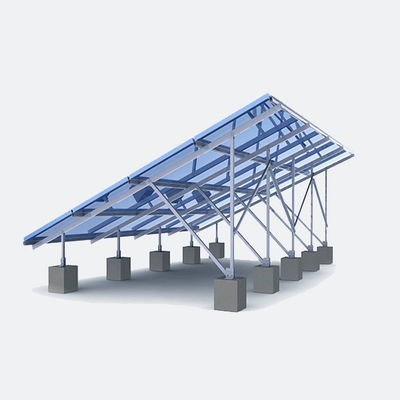

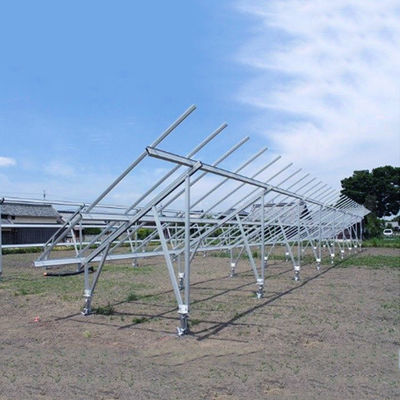

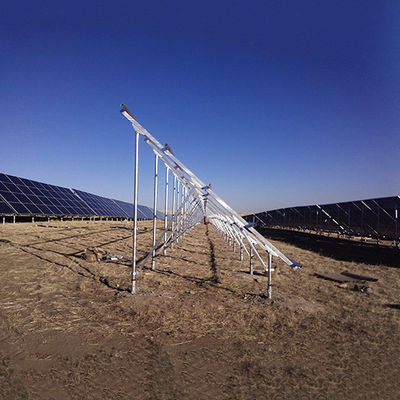

Utility Scale 50 MW Fixed Tilt Solar Racking and Mounting Systems

Solar Ground Mounting System is applicable to flat concrete roof and a large array PV system in open terrain. This system is designed to engineer with a minimum amount of installed footing at greatly reduce labor. The special tilt-in module, the clamp, and the system can be modified to be installed that make the installation easy and quick. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.

Features:

►Suited for both framed and unframed PV modules
►The variable inclination of 0-45 deg and fixed

►Set on both ground screw foundation and concrete foundation. Configuration for both portrait and landscape

Parameter:

Type	Ground solar mounting
Color	Natural or Customized
Treatment	Anodized, Galvanized
Structural materials	Aluminum Alloy, Hot-Galvanized Steel, Stainless Steel
Install Angle	0-60 degree
Ground Clearance	≥0.15m
Wind load	130mph(60m/s)
Snow Load	30psf(1.4kN/m2)
Applicable Module	Framed, frameless
Module Orientation	Portrait, landscape
