EPC Solar Panel Ground Mounting Systems High Strength Horizontal Vertical Installation Angle 10-60°

Name: EPC Solar Panel Ground Mounting Systems High Strength Horizontal Vertical Installation Angle 10-60°
Brand: Henan Tianfon New Energy Tech. Co., Ltd
SKU: Solar Panel Ground Mounting Systems
Price: 0.05 USD
Availability: InStock

Brand Name:	TIANFON
Model Number:	Solar Panel Ground Mounting Systems
MOQ:	1000 Watt/Watts
Price:	US $0.05-0.18 / Watts
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000 Watt/Watts per Week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS,ISO 9001,ISO 14001,OHSAS 18001

Name:

Suitable Solar Module Mounting Solution

Application:

Utility-scale

Material:

Hot Galvanized Steel

Module Orientation:

Horizontal / Vertical

Applicable Module:

Any Size

Warranty:

10 Years

Packaging Details:

1.Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safety and waterproof. 2.Customized packing

Supply Ability:

100000 Watt/Watts per Week

Highlight:

solar panel power system

ground mounted pv systems

Product Description

High Strength Suitable Solar Module Mounting Solution for EPC

The Solar Mounting structure is used to fix the solar PV panels and gives a support and inclination to the system.

These customized mounting structures are manufactured from cold rolled Zn-Al/Zn coated steel that offers high corrosion resistance, weight optimization and quick installation.

They can be mounted on a concrete foundation or ground screws.Customized tilt angles meet the complex requirements of the construction site and use effectively energy of the sun.

Engineering Specifications:

►Installation Site: ground, flat, tilt roof, tile roof, vitreous tile, any suitable area

►Installation Angle: 10-60 °

►Snow Load: up to 1.4 KN/m2 (40psf)

►Wind Load: up to 36.9 m/s (150 km/h)

►Wind Pressure: up to 66.42 KG/m2

►Module Orientation: Horizontal / Vertical

►Applicable Module: Any brand of PV solar power panel module

►Color: Natural, Silver, Gray, or Customized

►Frame material: Hot-dipped Galvanised MS Angles, Stainless Steel 304, aluminum alloy 6063-T5

►Warranty: 10 years

►Standard: GB/T13912-2002 or AS/NZS 1170 or any other International standard

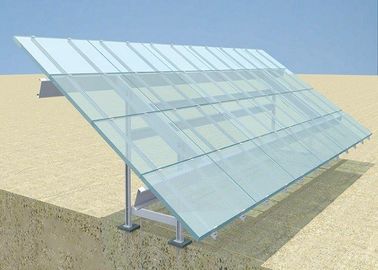

EPC Solar Panel Ground Mounting Systems High Strength Horizontal Vertical Installation Angle 10-60° 0

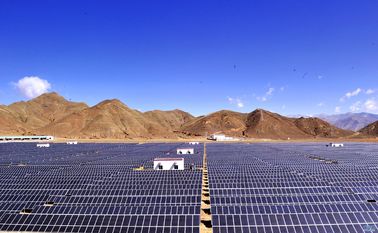

EPC Solar Panel Ground Mounting Systems High Strength Horizontal Vertical Installation Angle 10-60° 1
