Corrugated Metallic Tile Roof Solar Mounting System Standing Seam Trapezoidal Lysaght Aluminum

Minimum Order Quantity : 5 set Price : US $0.05-0.18 / Watts
Packaging Details : Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safty and waterproof. Delivery Time : 15-25 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 30MW/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Solar Panel Roof Mounting Systems

Detail Information

Type: On/off Grid Duration: More Than 25 Years
Warranty: 10 Years Module Orientation: Landscape Or Portrait
Wind Load: Up To130mph(60m/s) Snow Load: Up To 30psf(1.4KN/m2)
High Light:

solar power roof systems


pv roof mounting systems

Product Description

Standing Seam Trapezoidal Lysaght Solar Panel Roof Mounting Systems Corrugated Metallic


The Solar Mounting structure is used to fix the solar pv panels and gives a support and inclination to the system. They are made by galvanized steel, anodized aluminum alloy & stainless steel which featured with lightweight, high strength and recyclable material.


Product feature:



1. Professional customized design

Products were designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.


2. Easy installation

The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.


3. Safety

The racking systems can stand up to the extreme weather condition. The main support components have also been tested to guarantee its structure and load-carrying capacity.


4. Widely application

The mounting system suitable for various kinds of project, including residential project, commercial project, utility project and so on.


5. Great Compatibility

The Tianfon mounting system compatible with most of the major framed and frameless PV modules on the market.



Product Parameter :


Mount Type Solar mounting bracket/ pv solar panel tile roof mount/ bracket/ racking system
Installation Site Roof top
Application Framed solar panel for any size
Structural materials aluminum, stainless steel
Survival wind speed Up to130mph(60m/s)
Design snow pressure Up to 30psf(1.4KN/m2)
Inclination 0 degree (the same angle as roof)
Panel direction vertical or landscape
Warranty Design Life for 25 years, quality assurance for 10 years

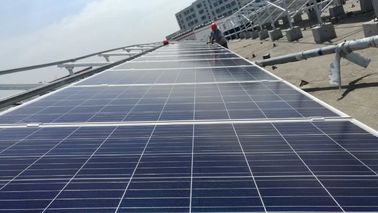

Corrugated Metallic Tile Roof Solar Mounting System Standing Seam Trapezoidal Lysaght Aluminum 0

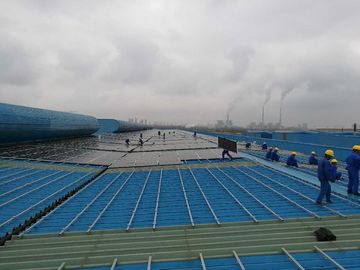

Corrugated Metallic Tile Roof Solar Mounting System Standing Seam Trapezoidal Lysaght Aluminum 1
