Double Row Solar Car Parking SS304 Carport Solar Mounting Structure Waterproof Adjustable Metal PV Panel Support System

Minimum Order Quantity : 5 set Price : USD500-1000/set
Packaging Details : Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safty and waterproof. Delivery Time : 15-25 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 30MW/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Carport Solar Systems

Detail Information

Material: Q235,Q345,6063,6005 Size: Customized
Applicable Module: Framed Or Frameless Panel Module Orientation: Landscape Or Portrait(vertical&horizental)
Wind Load: Up To130mph(60m/s) Snow Load: Up To 30psf(1.4KN/m2)
High Light:

solar carport structures

,

solar power parking lot

Product Description

Double Row Solar Carport Mounting Racks Adjustable PV Panel Support System



Solar carports and canopies can be looked at as really, really tall ground-mounts. They are very common in commercial settings, especially at schools and business campuses. Reinforced concrete foundations hold large steel beams that support solar panels overhead. Carports can be designed to cover one row of parking spots, span over two rows or be as large as a project needs. Many carports can be equipped with electric vehicle charging stations for an extra bonus to cars sheltering underneath.



Quick Details:



Application: Private, Government and Enterprise’s Parking Lot
Panel array: Landscape
Rows: 4/5/6
Span(E-W): 5000mm
Standard ground clearance: 2500mm
Surface Treatment: Hot-Dipped Galvanization or Anodizing
Warranty: 10 years
Duration: More than 25 years



Product Parameter :



  Wind Load   30m/s~60m/s
  Snow Load   0.5KN-1.5KN
  Material   Q235 hot dip galvanizing Coating over 65um
  Fastener   Stainless steel SS304
  Tilt Angle   5~15 degree
  Lowest height H   2.5m
  Width of space   2.5~3m
  Length of space   6m



Features:



Engineered for open filed projects. Both aluminum series and galvanized series are available.
The engineering team ensures us the special design is also available. which are a strong and reliable solution.
All components are highly pre-assembled, ensure the mounting system fast installation and saving labor cost.



☀ Long-term benefits

This carport is long life as the solar panel, for 25 years. After the cost is recovered, you can enjoy the pure income brought by the photovoltaic carport.



☀ Superb Quality
All raw materials of components are made of aluminum (anodized 6005-T5) and stainless steel (SUS304), which reach the maximum degree of product's weather resistance and the stability of the structure.
It can defeat strong wind(60m/s) and the high snow load(1.4KN/m2) and can be corrosion resistant(the carport are hot- galvanized finished).



☀ Strong practicality

Not only can it prevent the car from being exposed to the sun and rain, but it can also provide a steady stream of green power for charging new energy vehicles and enterprises.



☀ Professional customized design
Products were designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.



☀ Extraordinarily Environment-friendly Performance
All materials can be 100% recycled, and no waste is generated, which fully embodies the concept of energy saving and environmental protection of the solar photovoltaic power generating system.


Installation:

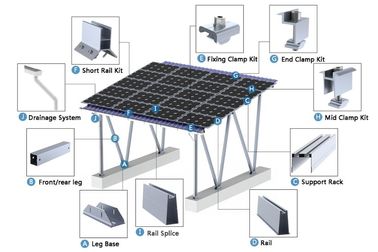

Double Row Solar Car Parking SS304 Carport Solar Mounting Structure Waterproof Adjustable Metal PV Panel Support System 0

Application:

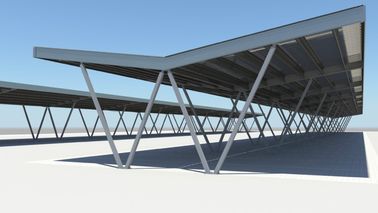

Double Row Solar Car Parking SS304 Carport Solar Mounting Structure Waterproof Adjustable Metal PV Panel Support System 1



Packaging & Shipping:



Double Row Solar Car Parking SS304 Carport Solar Mounting Structure Waterproof Adjustable Metal PV Panel Support System 2





Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface

► Port: Tianjin, Shanghai, Qingdao

► Payment Terms: L/C,D/A,D/P,T/T

Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits



Our Certificates:



Double Row Solar Car Parking SS304 Carport Solar Mounting Structure Waterproof Adjustable Metal PV Panel Support System 3

Double Row Solar Car Parking SS304 Carport Solar Mounting Structure Waterproof Adjustable Metal PV Panel Support System 4
