Ground Adjustable Mounting System Easy Installation High Pre - Assembly Components

Minimum Order Quantity : 5 set Price : USD800-2000/set
Packaging Details : standard export packing Delivery Time : 15-25 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 30MW/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Adjustable Mounting System

Detail Information

Name: Solar Panel Structures Systems Material: Q235,Q345,6063,6005
Size: Customized Applicable Site: Open Ground/roof
Applicable Module: Framed Or Frameless Orientation: Landscape Or Portrait
High Light:

solar rooftop system

,

flat roof mounting system

Product Description

Ground Adjustable Mounting Easy Installation Solar Panel Structures Systems



The Solar Mounting structure is used to fix the solar pv panels and gives a support and inclination to the system. They are made by galvanized steel, anodized aluminum alloy & stainless steel which featured with lightweight, high strength and recyclable material. They can be mounted on a concrete foundation or ground screws.Customized tilt angles meet the complex requirements of the construction site and use effectively energy of the sun. Pre-assembled beam saves labor time, reduces cost and makes installation quick



The fixed adjustable solar tracking system makes solar power muchmore cost-effective as it increases overall power collection efficiency. The angle will be adjusted according to the season or the project maintenance circle. The solar output increase up 6%~10% compared to fixed angle mounting system.



Product feature:



► Changeable inclination of modules improves the efficiency of generated energy so as to improve the benefits from solar plant.

► High pre-assembly components makes the installation work at site very easy.

► Flexible design makes it have a wide application.

► 15-year warranty and 30 years of service life is provided.



Product Parameter:



 Type

 Ground solar mounting

 Color

 Natural or Customized

 Treatment

 Anodized, Galvanized

 Structural materials

 Aluminum Alloy,Hot-Galvanized Steel, Stainless Steel

 Install Angle

 0-60 degree

 Ground Clearance

 ≥0.15m

 Max Building Height

 20 m

 Wind load

 130mph(60m/s)

 Snow Load

 30psf(1.4kN/m2)

 Applicable Module

 Framed, frame-less

 Module Orientation

 Portrait, landscape

 Array Layout

 According to the actual situation

 Warranty

 10 years

 Duration

 More than 25 years



Installation:

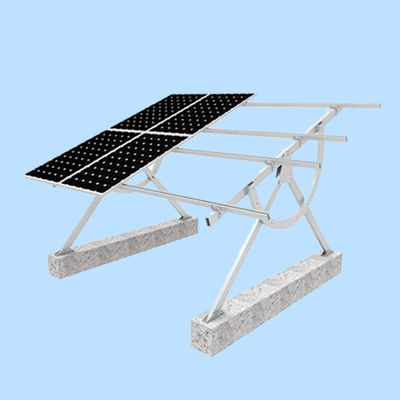

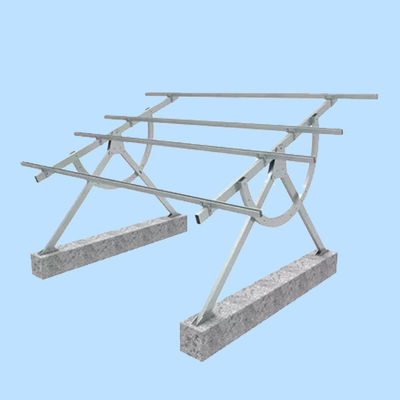

Ground Adjustable Mounting System Easy Installation High Pre - Assembly Components 0

Ground Adjustable Mounting System Easy Installation High Pre - Assembly Components 1



Packaging & Delivery:

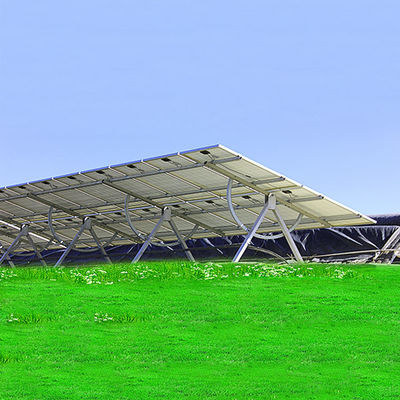

Ground Adjustable Mounting System Easy Installation High Pre - Assembly Components 2



► Port: Tianjin, Shanghai, Qingdao

► Payment Terms: L/C,D/A,D/P,T/T



Installation:

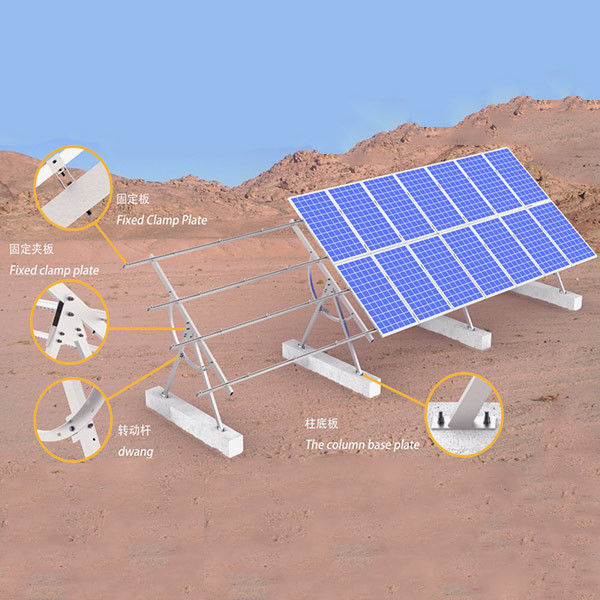

Ground Adjustable Mounting System Easy Installation High Pre - Assembly Components 3

Ground Adjustable Mounting System Easy Installation High Pre - Assembly Components 4
