Framed Or Frameless Panel Safety Adjustable Mounting System for Ground PV Panel Support Installation
Contact Person : Zhang
| Minimum Order Quantity : | 5 set | Price : | USD800-2000/set |
|---|---|---|---|
| Packaging Details : | standard export packing | Delivery Time : | 15-25 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 30MW/month |
| Place of Origin: | CHINA | Brand Name: | TIANFON |
|---|---|---|---|
| Certification: | SGS,ISO 9001,ISO 14001,OHSAS 18000 | Model Number: | Adjustable Mounting System |
|
Detail Information |
|||
| Install Site: | Open Ground | Tilt Angle: | 10-60° |
|---|---|---|---|
| Max. Wind Speed: | 60m/s | Max. Snow Load: | 1.4KN/m2 |
| Material: | Al 6005-T5 & SUS 304 & Hot Galvanized Steel | Warranty: | 10 Years |
| High Light: | solar rooftop system,solar panel racking system |
||
Product Description
Adjustable Solar Mounting Bracket Aluminium Solar Panel Mounting Structure Solar Panel Mounting Rail

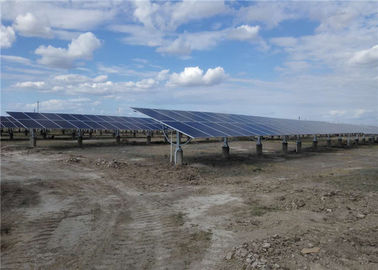

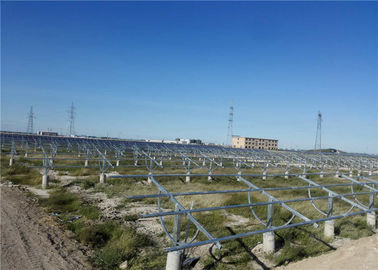

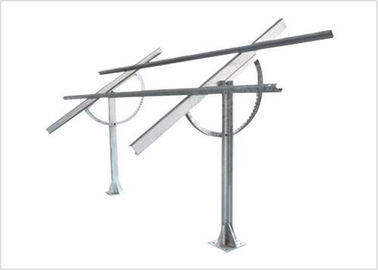

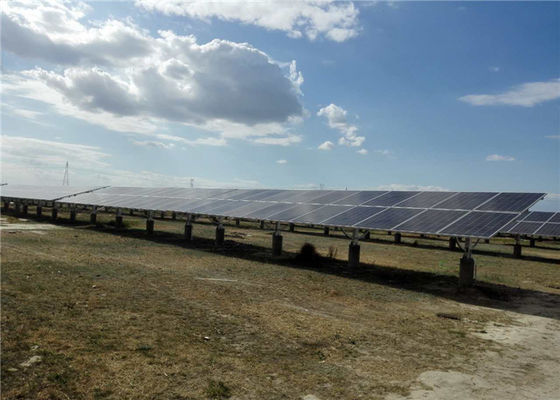

The seasonal adjustable ground mounting systems can be adjusted manually from 5 ° to 45 ° to improve the efficiency of the generated energy. Different from other seasonal adjustable mounts, it is
adjusted the angle by bearing which is safe and efficient. The column foundation makes the installation work very easy in order to save your installation time and labor.
Feature:
☼ Durable, anti-corrosion
☼ Lower cost, Incomparable value
☼ Faster/ Quick/secure installation, saving schedule
☼ Flexible attachment
☼ Compatible with a variety of foundation and most module types
☼ Complete structural analysis
☼ Complete documentation and system drawings
☼ Load design, Safety Guarantee
☼ High reliability, 10-year quality Assurance
☼ Complete technical support
Product Parameter :
Type | Ground solar mounting |
Color | Natural or Customized |
Treatment | Anodized, Galvanized |
Structural materials | Aluminum Alloy,Hot-Galvanized Steel, Stainless Steel |
Install Angle | 0-60 degree |
Ground Clearance | ≥0.15m |
Max Building Height | 20 m |
Wind load | 130mph(60m/s) |
Snow Load | 30psf(1.4kN/m2) |
Applicable Module | Framed, frame-less |
Module Orientation | Portrait, landscape |
Array Layout | According to the actual situation |
Warranty | 10 years |
Duration | More than 25 years |
