Adjustable Aluminum Solar Panel Mounting Kit Systems , PV Solar Mounting Systems
Contact Person : Hanna
Phone Number : 86-18702773499
WhatsApp : +8618702773499
| Minimum Order Quantity : | 5 set | Price : | USD800-2000/set |
|---|---|---|---|
| Packaging Details : | standard export packing | Delivery Time : | 15-25 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 30MW/month |
| Place of Origin: | CHINA | Brand Name: | TIANFON |
|---|---|---|---|
| Certification: | SGS,ISO 9001,ISO 14001,OHSAS 18000 | Model Number: | Adjustable Mounting System |
|
Detail Information |
|||
| Name: | Seasonal Adjustable Solar Mounting System | Applicable Site: | Open Ground/roof |
|---|---|---|---|
| Applicable Module: | Framed Or Frameless | Module Orientation: | Landscape Or Portrait |
| Wind Load: | Up To130mph(60m/s) | Snow Load: | Up To 30psf(1.4KN/m2) |
| High Light: | solar rooftop system,flat roof mounting system |
||
Product Description

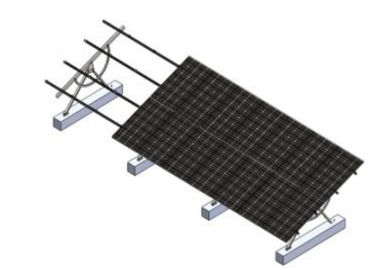

Adjustable Tilt Photovoltaic Fixing Bracket Support Ground Mounting System
The seasonal adjustable ground mounting systems can be adjusted manually from 5 ° to 45 ° to improve the efficiency of the generated energy. Different from other seasonal adjustable mounts, it is
adjusted the angle by bearing which is safe and efficient. The column foundation makes the installation work very easy in order to save your installation time and labor.
The fixed adjustable solar tracking system makes solar power muchmore cost-effective as it increases overall power collection efficiency. The angle will be adjusted according to the season
or the project maintenance circle. The solar output increase up 6%~10% compared to fixed angle mounting system.
Product Feature:
1. Changeable inclination of modules improves the efficiency of generated energy so as to improve the benefits from solar plant.
2. High pre-assembly components makes the installation work at site very easy.
Easy angle adjustment
3. Flexible design makes it have a wide application.
4. 15-year warranty and 30 years of service life is provided.
Product Parameter :
|
Type |
Ground solar mounting |
|
Color |
Natural or Customized |
|
Treatment |
Anodized, Galvanized |
|
Structural materials |
Aluminum Alloy,Hot-Galvanized Steel, Stainless Steel |
|
Install Angle |
0-60 degree |
|
Ground Clearance |
≥0.15m |
|
Max Building Height |
20 m |
|
Wind load |
130mph(60m/s) |
|
Snow Load |
30psf(1.4kN/m2) |
|
Applicable Module |
Framed, frame-less |
|
Module Orientation |
Portrait, landscape |
|
Array Layout |
According to the actual situation |
|
Warranty |
10 years |
|
Duration |
More than 25 years |
