1600mm Screw Driven Ground Piles Photovoltaic Installation PV Solar Panel

1600mm Screw Driven Ground Piles Photovoltaic Installation PV Solar Panel

Brand Name: TIANFON
Model Number: Ground Screw Piles
MOQ: 5 set
Price: USD800-2000/set
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30MW/month
Detail Information
Place of Origin:
CHINA
Certification:
SGS,ISO 9001,ISO 14001,OHSAS 18000
Type:
On/off Grid
Size:
As Required
Wind Load:
60m/s
Snow Load:
1.4KN/㎡
Feature:
Easy & Quick Installation
Engineering Service:
Acceptable
Packaging Details:
standard export packing
Supply Ability:
30MW/month
Highlight:

screw driven ground piles

,

foundation screw anchors

Product Description

Photovoltaic Installation PV Panel Ground Screw 1600mm Helical Piles Foundation



The ground screw & anchor are designed and engineered for each customer's site-specific conditions to minimize the field installation labor and require no field welding, drilling, or other on-site fabrication.



It is the intelligent alternative fixing method for all types of installations requiring a solid footing. Tests conducted in different consistency soil showed a clear advantage in all aspects, from wind loads and lateral pull, to horizontal load and lift, compared to concrete footings which are held in the ground mostly by their own weight.



Product feature:

• Install site: All types of Soil
• Pipe Material: Steel Q235B
• Pipe Diameters: 76 mm~200 mm
• Pipe Length: 500~2500 mm

• Pipe Thickness: 3~3.5mm
• Anticorrosive: High-class hot dip galvanized
• Warranty: 10 years warranty
• Duration: More than 20 years



Name

Size(mm)

Thickness(mm)

Material

Surface treatment

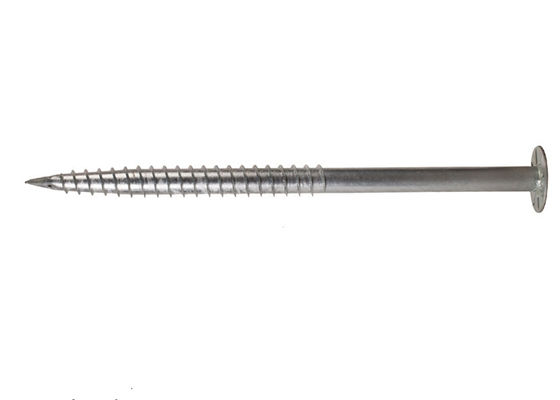

Piles with flange

φ 76/89,1000-2000mm(Length)

4

Q235B

Hot-Dip Galvanizing

1600mm Screw Driven Ground Piles Photovoltaic Installation PV Solar Panel 0

Piles without flange

φ 76/89,1000-2000mm(Length)

4

Q235B

Hot-Dip Galvanizing

1600mm Screw Driven Ground Piles Photovoltaic Installation PV Solar Panel 1

Steel pipe piles

φ 76/89,1000-2000mm(Length)

4

Q236B

Hot-Dip Galvanizing

1600mm Screw Driven Ground Piles Photovoltaic Installation PV Solar Panel 2



Products can be customized according to customer requirement.
