Ground Galvanized Steel Profile Solar Panel Mounting Structure Single Section HDG Steel

Minimum Order Quantity : 2000 pcs Price : USD50-300/pcs
Packaging Details : standard export packing Delivery Time : 15-25 work days
Supply Ability : 200000 pcs/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Galvanized Steel Profile

Detail Information

Grade: Q235,Q345 Application: PV Mounting Structure
Technique: Hot Rolled Steel Channel Surface Treatment: Galvanized Coated
Certificates: ISO Size: As Required
High Light:

galvanised steel profiles

,

steel extrusion profiles

Product Description

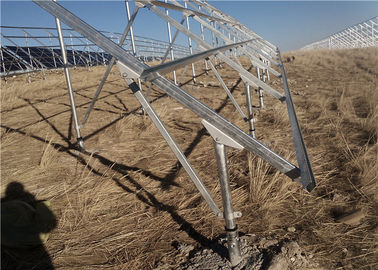

Solar Panel Mounting Structure Single Section HDG Steel Ground Solar Mount



As the main structure of the pv mounting system,the galvnized steel are made by good quality Q235B and Q345B.The performance of load-bearing,wind resistance and seismic resistance has been given sufficient consideration,which will ensure the safety of the system.



We adopt advanced galvanized technology, make the appearance of beautiful, has the property of anti corrosivewear-resisting,increasing the utilization rate of the product and service life.



Application :



1) Living house and home building.

2) Commercial building, factory, shopping mall, school, stadium etc.

3) Power station, field operation and some huge engineer construction.





Name



Size(mm)



Thickness(mm)



Material



Surface treatment



Photo 1



Photo 2



C type steel

C40*40*10

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

Ground Galvanized Steel Profile Solar Panel Mounting Structure Single Section HDG Steel 0

Ground Galvanized Steel Profile Solar Panel Mounting Structure Single Section HDG Steel 1

C60*40*15

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

C80*40*15

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

C100*50*15

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

C120*50*20

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

U type steel

U41*21

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

Ground Galvanized Steel Profile Solar Panel Mounting Structure Single Section HDG Steel 2

Ground Galvanized Steel Profile Solar Panel Mounting Structure Single Section HDG Steel 3

U41*41

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

U52*41

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

U62*41

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

U72*41

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

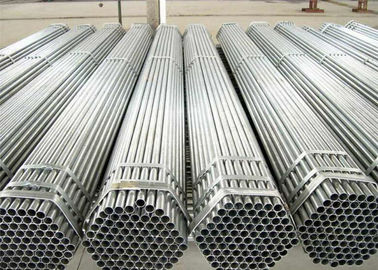

Round tube

φ60

2.5

Q235B/Q345B

Hot-Dip Galvanizing

Ground Galvanized Steel Profile Solar Panel Mounting Structure Single Section HDG Steel 4

Ground Galvanized Steel Profile Solar Panel Mounting Structure Single Section HDG Steel 5

φ60

3.0

Q235B/Q345B

Hot-Dip Galvanizing

φ76

4.0

Q235B/Q345B

Hot-Dip Galvanizing

φ89

4.0

Q235B/Q345B

Hot-Dip Galvanizing

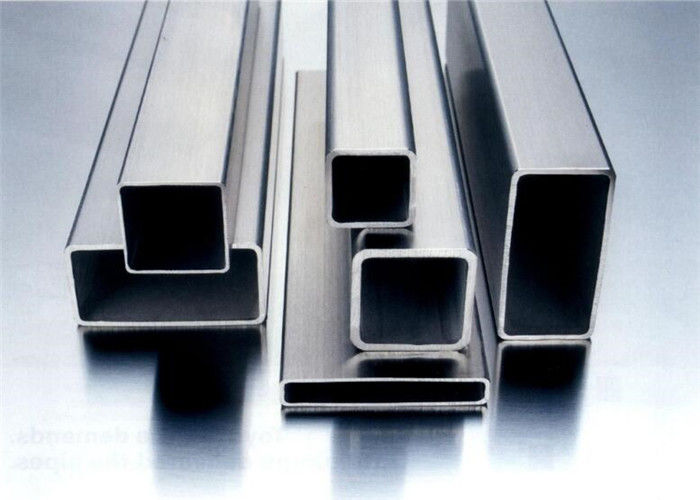

Square tube

40*40

2.0-2.5

Q235B/Q345B

Hot-Dip Galvanizing

Ground Galvanized Steel Profile Solar Panel Mounting Structure Single Section HDG Steel 6

Ground Galvanized Steel Profile Solar Panel Mounting Structure Single Section HDG Steel 7

Rectangular tube



60*40

2.0-3.0

Q235B

Hot-Dip Galvanizing

Ground Galvanized Steel Profile Solar Panel Mounting Structure Single Section HDG Steel 8

Ground Galvanized Steel Profile Solar Panel Mounting Structure Single Section HDG Steel 9

80*40

2.0-3.0

Q235B

Hot-Dip Galvanizing



Products can be customized according to customer requirement.
