Framed Solar PV Mounting Systems High Pre - Assembly Parts Optional Tilt Angle

Minimum Order Quantity : 1000 Watt/Watts Price : US $0.05-0.18 / Watts
Packaging Details : 1.Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safety and waterproof. 2.Customized packing Delivery Time : within 15-25 work days after receipt deposit
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100000 Watt/Watts per Week
Place of Origin: China Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18001 Model Number: Solar Panel Ground Mounting Systems

Detail Information

Name: Ground Solar PV Mounting Supports Size: Customized
Applicable Site: Open Ground Color: Natural Or Customized
Tilt Angle: 10/15/20/30/ Customized Warranty: 10 Years
High Light:

solar panel power system


solar panel mounting system

Product Description

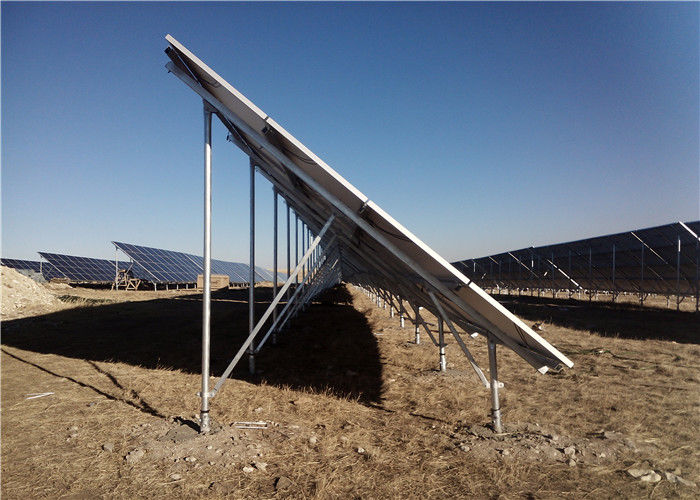

Ground Solar PV Mounting Supports Mounting Systems Mounting Brackets


The Solar Mounting structure is used to fix the solar pv panels and gives a support and inclination to the system. They are made by galvanized steel, anodized aluminum alloy & stainless steel which featured with lightweight, high strength and recyclable material. They can be mounted on a concrete foundation or ground screws. Customized tilt angles meet the complex requirements of the construction site and use effectively energy of the sun. Pre-assembled beam saves labor time, reduces cost and makes installation quick.




►Suited for both framed and unframed PV modules.

►The variable inclination of 0-45 deg and fixed.

►Set on both ground screw foundation and concrete foundation.

►Configuration for both portrait and landscape.




►Easy Installation

Parts have been high pre-assembly on the factory to save your installation time.


►Flexibility and Adjustable

Smart design reduce the difficulty of the installation on the most condition.


►Maximum Lifespan

All components are made of quality extruded aluminum, C-steel and stainless steel.

The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.





 Type  Ground solar mounting
 Color  Natural or Customized
 Treatment  Anodized, Galvanized
 Structural materials  Aluminum Alloy, Hot-Galvanized Steel, Stainless Steel
 Install Angle  0-60 degree
 Ground Clearance  ≥0.15m
 Wind load  130mph(60m/s)
 Snow Load  30psf(1.4kN/m2)
 Applicable Module  Framed, frameless
 Module Orientation  Portrait, landscape


Framed Solar PV Mounting Systems High Pre - Assembly Parts Optional Tilt Angle 0
