100KW Solar Power Mounting Systems Hot Dip Galvanized Steel Ground Plant Pile

Minimum Order Quantity : 100 KW Price : Negotiable
Packaging Details : 1.Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safety and waterproof. 2.Customized packing Delivery Time : within 15-25 work days after receipt deposit
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100MW/month
Place of Origin: China Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000, TÜA, CE Model Number: Solar Panel Ground Mounting Systems

Detail Information

Name: Solar Panel Ground Mounting Systems Installation Angle: 10-60 °
Color: Natural Or Customized Type: On/off Grid
Warranty: 10 Years Duration: More Than 25 Years
High Light:

solar panel power system

,

solar panel mounting system

Product Description

100KW Hot Dip Galvanized Steel Solar Panel Ground Mounting Systems Ground Plant Pile



Solar Ground Mounting System is suitable for both small and large-scale solar plants .with a flexible connection, it can be installed onto the concrete base, and also the earth ground, even the slope can also be workable.
This system is designed to engineer with a minimum amount of installed footing at greatly reduce labor. The special tilt-in module, the clamp, and the system can be modified to be installed that make the installation easy and quick. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.



 Quick Information:



Type: Ground solar mounting
Surface Treatment: Hot Dip Galvanizing & Anodized
Ground Clearance: ≥0.15m
Max Building Height: 20m
Purline: C steel
Span: As required
Column: Hot rolled plain steel
Beam: C steel
Applicable Module: Framed or Frameless
Module Orientation: Portrait or landscape
Module type: Any type of PV moduels
Installation Site: Open Field/ Ground / Earth / Concrete Ground



 Advantages:



► Complete technical support

► Lower cost, Incomparable value

► Faster/ Quick/secure installation, saving schedule

► Flexible attachment

► Load design, Safety Guarantee

► High reliability, 10-year quality Assurance



 Parameter:

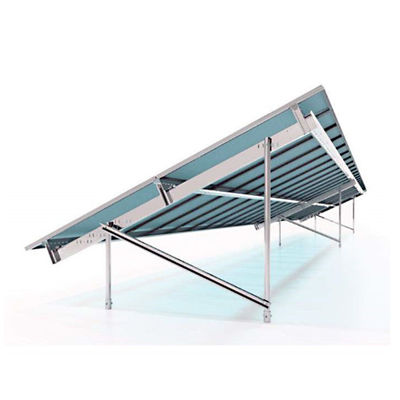

 Product Name  Solar Ground Mounting System  100KW Solar Power Mounting Systems Hot Dip Galvanized Steel Ground Plant Pile 0
 Treatment  Anodized, Galvanized
 Wind Speed  60m/s
 Snow Load  1.4KN/m2
 Material  Steel Q235, Q245, Aluminum 6005-T5
 Color  Silver Or Customized
 Module Angle  10-60 Degrees According to Your Requirement or  Latitude
 Warranty  10 Years
 Service Life  25 Years
 Array Layout  According to the actual situation


 Benefits:



Widely application

The mounting system suitable for various kinds of project, including residential project, commercial project, utility project and so on.



► Professional customized design

Products were designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.



► Easy installation

The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.



► Safety

The racking systems can stand up to the extreme weather condition. The main support components have also been tested to guarantee its structure and load-carrying capacity.



► Great Compatibility

The Tianfon mounting system compatible with most of the major framed and frameless PV modules on the market.



► Super quality

All products are made by experienced skilled staffs to operate quality. With strictly full inspected and controlled by Qc department.

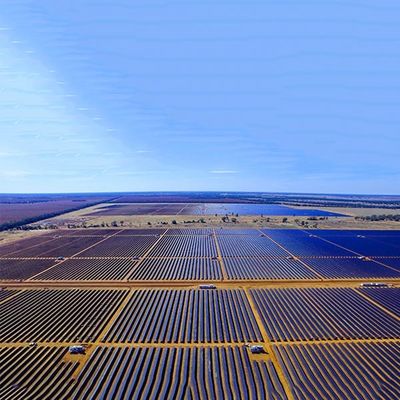

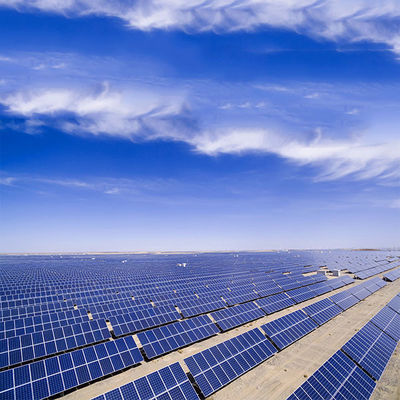

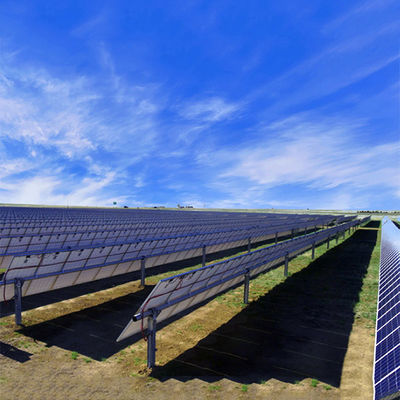

 Project Case:



100KW Solar Power Mounting Systems Hot Dip Galvanized Steel Ground Plant Pile 1

100KW Solar Power Mounting Systems Hot Dip Galvanized Steel Ground Plant Pile 2



Solar Power Generation Project 81.24MW, Located in Pakistan



 Packaging & Delivery:



100KW Solar Power Mounting Systems Hot Dip Galvanized Steel Ground Plant Pile 3



► Port: Tianjin, Shanghai, Qingdao

► Payment Terms: L/C,D/A,D/P,T/T



 Certification:



100KW Solar Power Mounting Systems Hot Dip Galvanized Steel Ground Plant Pile 4

100KW Solar Power Mounting Systems Hot Dip Galvanized Steel Ground Plant Pile 5
