Original Carbon Steel Solar Carport Mounting System Waterproof
Contact Person : Hanna
Phone Number : 86-18702773499
WhatsApp : +8618702773499
|Minimum Order Quantity :||5 set||Price :||USD500-1000/set|
|Packaging Details :||Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safty and waterproof.||Delivery Time :||15-25 work days|
|Payment Terms :||L/C, D/A, D/P, T/T, Western Union, MoneyGram||Supply Ability :||30MW/month|
|Place of Origin:||CHINA||Brand Name:||TIANFON|
|Certification:||SGS,ISO 9001,ISO 14001,OHSAS 18000||Model Number:||Carport Solar Systems|
|Name:||BIPV Carport Solar Systems||Type:||On/off Grid|
|Feature:||Easy & Quick Installation||Engineering Service:||Acceptable|
Multi Solar PV Carport,
Single Solar PV Carport,
42m/s carport pv system
Easy Installation Thickness 0.5mm-15mm Single Multi Solar PV Carport Mounting Systems

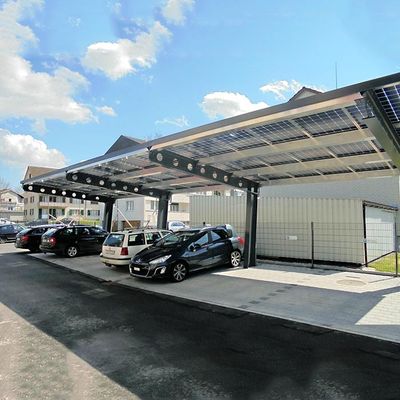

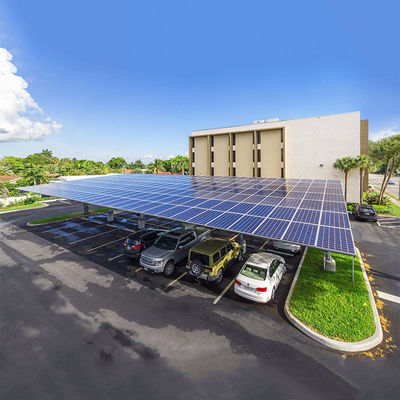

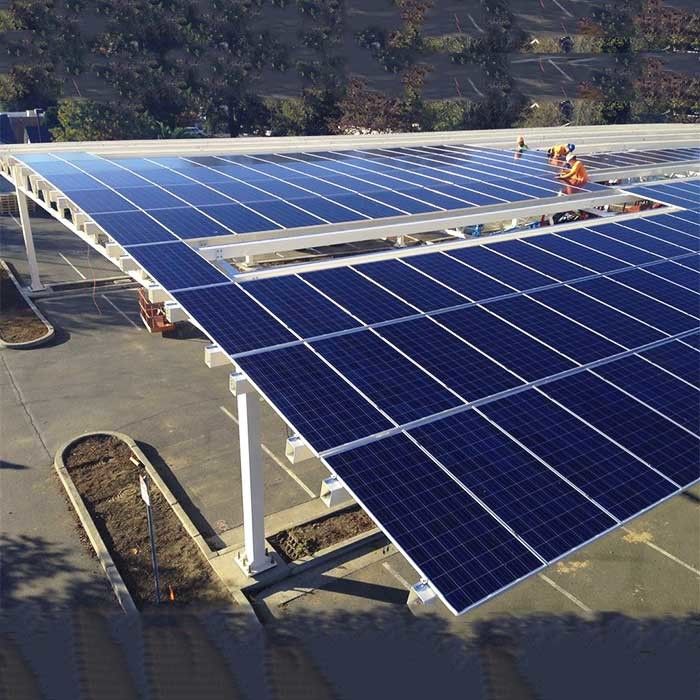

Photovoltaic carport is a new type of power generation method, and it is also a development trend in the future. It is mainly composed of a bracket system, a battery component array, a lighting and control inverter system, a charging device system, and a lightning protection and grounding system.
The system adopts a modular design to provide single parking spaces, double parking spaces, and even rows of parking spaces, which are easy to adjust.
The bracket system mainly includes support columns, inclined beams fixed between the support columns, purlins connected to the inclined beams to support the solar cell module array, and fasteners for fixing the battery module array.
Product Parameter :
Support system: columns, inclined beams, purlins
Material: Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. / Q235 hot dip galvanizing Coating over 65um
Surface Treatment: Hot-Dipped Galvanization or Anodizing
Fastener: Stainless steel SS304
Lowest height: 2.5m
Width of space: 2.5~3m
Length of space: 6m
Application: Private, Government and Enterprise’s Parking Lot
|Max Wind Speed:||Up to 42m/s|
|Max Snow Load:||Up to 1.4KN/m2|
|Standard ground clearance:||2500mm|
☀ Easy Installation
The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.
☀ Flexible and Stable
With the adjustable design, maximally absorbs the size error caused by the construction, and guarantees the stability and beauty of the solar mounting structure.
☀ Extraordinarily Environment-friendly Performance
All materials can be 100% recycled, and no waste is generated, which fully embodies the concept of energy saving and environmental protection of the solar photovoltaic power generating system.
☀ Superb Quality
All raw materials of components are made of aluminum (anodized 6005-T5) and stainless steel (SUS304), which reach the maximum degree of product's weather resistance and the stability of the structure.
Packaging & Shipping:
► Port: Tianjin, Shanghai, Qingdao
► Package: strong and long distance transportation package
► Payment Terms: L/C,D/A,D/P,T/T
► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits
