Concrete Base Double Pole PV Panel Mounting Brackets

Minimum Order Quantity : 5 set Price : USD50-80/set
Packaging Details : standard export packing,pallet and carton Delivery Time : 20-25 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 30MW/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18001 Model Number: Ground mounting system

Detail Information

Name: Solar Panel Ground Mounting Systems Material: Q235B,Q345B Steel
Specification: As Required Application: Industrial,Commercial,Residential
Tilt Angle: 10/15/20/30 Degree Color: As Required
High Light:

Q235B PV Panel Mounting Brackets


Q345B PV Panel Mounting Brackets

Product Description

Double Pole Type PV Mounting Bracket Concrete Base Solar Panel Ground Mounting Systems


Solar Ground Mounting System is applicable to flat concrete roof and a large array PV system in open terrain. This system is designed to engineer with a minimum amount of installed footing at greatly reduce labor. The special tilt-in module, the clamp, and the system can be modified to be installed that make the installation easy and quick. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.
Depends on the field conditions we come up different foundation design, use the suitable racking post to provide high strength and withstand wind and snow loads and save the labor cost.

Short Description:
Min.Order Quantity: 5 Set
►Supply Ability: 30MW/month
►Port: Tianjin, Shanghai, Qingdao
►Payment Terms: L/C,D/A,D/P,T/T
Product Parameter :

  Module Orientation   Portrait, landscape
  Color   Natural or Customized
  Array Layout   According to the actual situation
  Structural materials   Aluminum Alloy, Hot-Galvanized Steel, Stainless Steel
  Install Angle   0-60 degree
  Ground Clearance   ≥ 0.15m
  Max Building Height   20m
  Wind load   130mph(60m/s)
  Snow Load   30psf(1.4kN/m2)
  Applicable Module   Framed, frameless
  Treatment   Anodized, Galvanized
Type: Ground solar mounting
Application: Mountain, Plain, Highland, Desert
Module type: Any type of PV moduels
Ground Clearance: ≥0.15m
Max Building Height: 20m
Purline: C steel
Span: As required
Column: Hot rolled plain steel
Surface Treatment: Hot Dip Galvanizing & Anodized
Warranty: 10 years warranty and 25 years duration

Product Feature:

► Most parts use steel structure part, tremendous decrease the cost;

► Each part is professional design, with good adaptation;

► The racking systems can stand up to the extreme weather condition;

► The flexibility of screw foundation-ground screw or concrete foundation;

► Use standard tighten part connect, easy to fix;

► Galvanization material, excellent performance of rust protection;

► Adaptation to various complicated terrains.

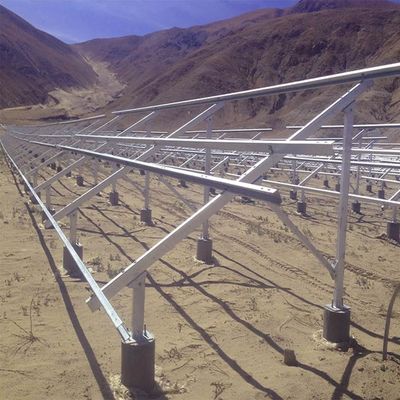

Concrete Base Double Pole PV Panel Mounting Brackets 0

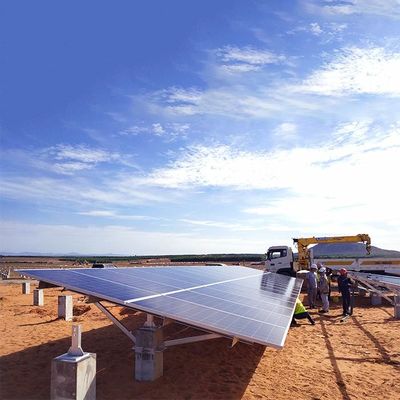

Concrete Base Double Pole PV Panel Mounting Brackets 1
Packaging & Delivery:

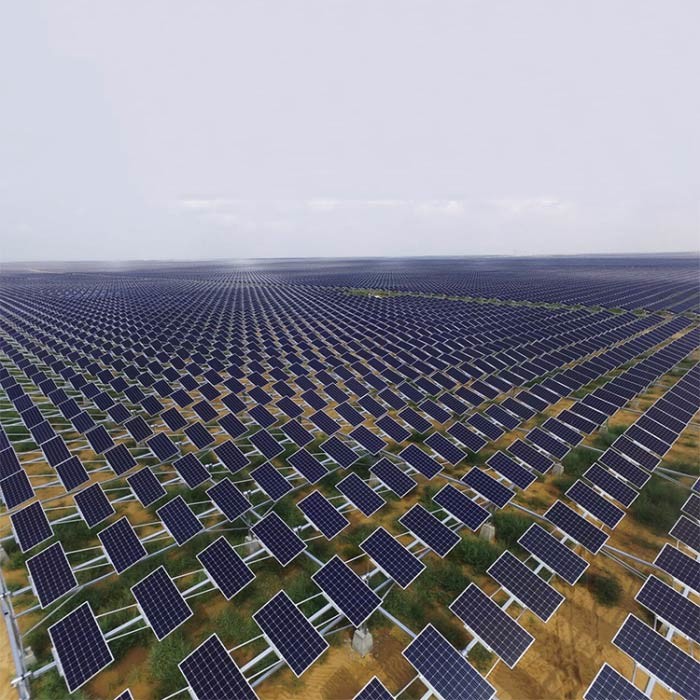

Concrete Base Double Pole PV Panel Mounting Brackets 2

► Place of loading: Basic Seaport, China

► Package: strong and long distance transportation package
Our Certificate:
Concrete Base Double Pole PV Panel Mounting Brackets 3
Concrete Base Double Pole PV Panel Mounting Brackets 4
