Flexible Anodized Solar Panel Ground Mounting Systems

Minimum Order Quantity : 5 set Price : USD50-80/set
Packaging Details : standard export packing,pallet and carton Delivery Time : 20-25 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 30MW/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18001 Model Number: Solar Panel Ground Mounting Systems

Detail Information

Name: Solar Panel Ground Mounting Systems Color: Customized
Application: Solar Plant Tilt Angle: Customized
Size: Customized Material: Galvanized Q235B,Q345B
High Light:

130mph Solar Panel Ground Mounting Systems

,

Anodized Solar Panel Ground Mounting Systems

Product Description

Flexible Anodized Solar Panel Ground Mounting Systems Module Support Power Generation PV Mounting Brackets





Short Description:



Type: Ground solar mounting
Color: Natural or Customized
Treatment: Anodized, Galvanized
Applicable Module: Framed, frameless
Module Orientation: Portrait, landscape
Array Layout: According to the actual situation



Product Feature:



Our solar Ground Mounting System is made by galvanized steel, anodized aluminum alloy & stainless steel which featured with lightweight, high strength and recyclable material.
It is suitable for both small and large-scale solar plants .with a flexible connection, it can be installed onto the concrete base, and also the earth ground, even the slope can also be workable.
Solar Ground Mounting System is applicable to flat concrete roof and a large array PV system in open terrain. This system is designed to engineer with a minimum amount of installed footing at greatly reduce labor. The special tilt-in module, the clamp, and the system can be modified to be installed that make the installation easy and quick. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.



Product Parameter :



 Structural materials  Aluminum Alloy, Hot-Galvanized Steel, Stainless Steel
 Install Angle  0-60 degree
 Ground Clearance  ≥0.15m
 Max Building Height  20m
 Wind load  130mph(60m/s)
 Snow Load  30psf(1.4kN/m2)
 Packing  Strong and long distance transportation package
 Duration  More than 25 years



Benifits:



Professional customized design

Products were designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.



► Easy installation

The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.



► Flexible and Stable
Its fully adjustable design, maximumly absorbs the size error caused by the construction, and guarantees the stability and beauty of PV matrix structure .



► Safety

The racking systems can stand up to the extreme weather condition. The main support components have also been tested to guarantee its structure and load-carrying capacity.



► Widely application

The mounting system suitable for various kinds of project, including residential project, commercial project, utility project and so on.

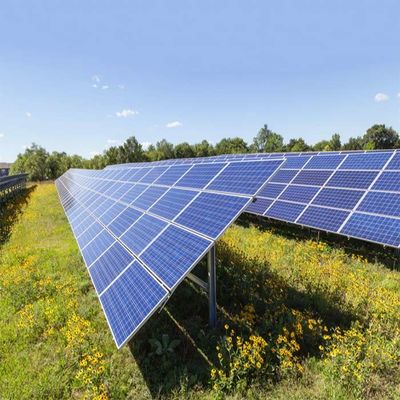

Flexible Anodized Solar Panel Ground Mounting Systems 0



Packaging & Shipping:



Flexible Anodized Solar Panel Ground Mounting Systems 1



Our Certificates:



Flexible Anodized Solar Panel Ground Mounting Systems 2

Flexible Anodized Solar Panel Ground Mounting Systems 3
