Thickness 0.5mm C Type Solar PV Module Mounting Structure

Minimum Order Quantity : 1000 Watt/Watts Price : US $0.05-0.18 / Watts
Packaging Details : 1.Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safety and waterproof. 2.Customized packing Delivery Time : within 15-25 work days after receipt deposit
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100000 Watt/Watts per Week
Place of Origin: China Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18001 Model Number: Solar Panel Ground Mounting Systems

Detail Information

Name: Hot-dipped Galvanized C-type Steel Solar Ground Mounting Structure Type: On/off Grid
Surface Treatment: Galvanized,Anodized Feature: Easy & Quick Installation
Thickness: 0.5mm-15mm Engineering Service: Acceptable
High Light:

0.5mm PV Module Mounting Structure

,

SGS PV Module Mounting Structure

Product Description

C Type Solar Photovoltaic Mounting Structures, Hot Dipped Galvanized Solar Power Energy System





Quick details:



► Application: Mountain, Plain, Highland, Desert



► Module type: Any type of PV moduels



► Material: Q235,Q345,6063,6005



► Size: customized



► Applicable site: open ground/roof



► Applicable Module: framed or frameless panel



► Module Orientation: landscape or portrait(vertical&horizental)



► Wind load: Up to130mph(60m/s)



► Snow load: Up to 30psf(1.4KN/m2)



► Components Parts: Leg Cap; Front/Rear Leg; Fix Ring; Cross Pipe; U Connector; Rail; Mid Clamp; End Clamp;Enforcement Pipe



► Array Layout: According to the actual situation



  Install Angle   0-60 degree
  Module Orientation   Portrait or landscape
  Color   Natural (Natural Silver White) or Customized
  Surface Treatment   Hot Dip Galvanizing & Anodized
  Ground Clearance   ≥ 0.15m
  Max Building Height   20m
  Span   As required
  Purline   C steel
  Column   Hot rolled plain steel
  Beam   C steel
  Warranty   10 years
  Duration   More than 25 years



Features:



We are committed to maintaining a friendly long-term relationship with our clients, and we always provide our products with high-quality service, excellent quality and the most favorable price.


The ground mounting system is a general adjustable angle column installation system. The patented track has good component compatibility and convenient installation, which saves users installation time and costs, and strict quality control to ensure product performance and lifespan, the system can be compatible with most photovoltaic brackets on the market.


Solar mounting system is designed by professional engineer team.


Widely use for MW ground mounting solar system, fast installation and save labor cost.



Benefits:



1. Professional customized design
Products with stable structure and mature technology were designed by experienced designers, can reduce the difficulty of the installation on the most conditions.



2. Customized
According to the needs needs of the project, adjust the light transmission rate, and make full use of the land.


3. High quality materials
The structure was verified by wind load and snow load test. High quality materials AL6005 and SUS304. Structural validation JIS/DIN.



4. Easy installation
The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.



5. Safety
The racking systems can stand up to the extreme weather condition. The main support components have also been tested to guarantee its structure and load-carrying capacity.



Application:

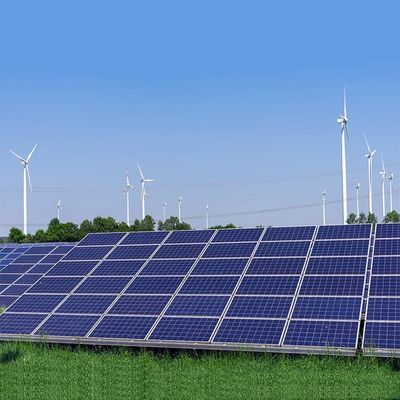

Thickness 0.5mm C Type Solar PV Module Mounting Structure 0



Packaging and delivery:



Thickness 0.5mm C Type Solar PV Module Mounting Structure 1



Our Certificates:



Thickness 0.5mm C Type Solar PV Module Mounting Structure 2

Thickness 0.5mm C Type Solar PV Module Mounting Structure 3
