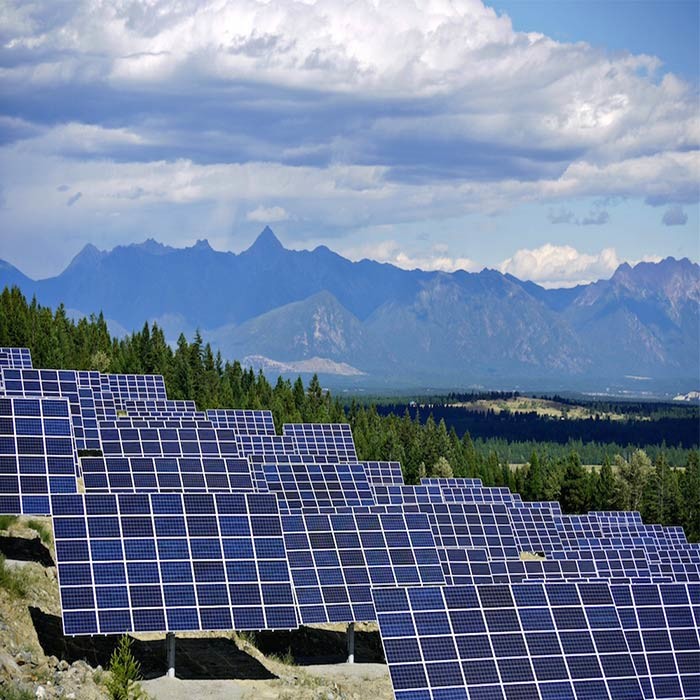

Metal Photovoltaic Mounting Structures,Galvanized Base Ground Mounted Solar PV Systems

Metal Photovoltaic Mounting Structures,Galvanized Base Ground Mounted Solar PV Systems

Brand Name: TIANFON
Model Number: Solar Panel Ground Mounting Systems
MOQ: 1000 Watt/Watts
Price: US $0.05-0.18 / Watts
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 Watt/Watts per Week
Detail Information
Place of Origin:
China
Certification:
SGS,ISO 9001,ISO 14001,OHSAS 18001
Name:
Solar Panel Ground Mounting Systems Structure
Thickness:
0.5mm-15mm
Color:
Natural Or Customized
Engineering Service:
Acceptable
Installation Time:
7~15working Days (1MW Project)
Duration:
More Than 25 Years
Packaging Details:
1.Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safety and waterproof. 2.Customized packing
Supply Ability:
100000 Watt/Watts per Week
Highlight:

Q345B Steel PV Mounting Structure

,

15mm PV Mounting Structure

Product Description

Metal Photovoltaic Mounting Structures,Galvanized Base Ground Mounted Solar PV Systems



Ground mounting systems which are made of Q235B or Q345B steel will be hot dip galvanized, with an average thickness of 65-80 microns (µ). They have the advantages of light weight, high strength, and recyclability.
It provides easy installation and long-term durability, setting a solid foundation for successful photovoltaic installation projects
With the continuous changes in market demand, our professional R&D department continues to improve and design new solar installation systems to meet different needs



Brief introduction:



Structural materials: Aluminum Alloy, Hot-Galvanized Steel, Stainless Steel
Max Building Height: 20m
Application: Mountain, Plain, Highland, Desert
Feature: Super quality;Great Compatibility; Quick Installation
Model Number: Solar Ground Mounts
Usage: Support Solar Modules
Capacity: Strong



Parameter:


 Type  Ground solar mounting
 Color  Natural or Customized
 Surface Treatment  Hot Dip Galvanizing & Anodized
 Array Layout  According to the actual situation
 Install Angle  0-60 degree
 Ground Clearance  ≥0.15m
 Wind load  130mph(60m/s)
 Snow Load  30psf(1.4kN/m2)
 Applicable Module  Framed, frameless
 Module Orientation  Portrait, landscape
 Duration  More than 20 years


Advantages:



► Customized
According to the needs of the project, the light transmittance should be adjusted to make full use of the land.



► High quality materials
High quality materials AL6005 and SUS304. Structural validation JIS/DIN.



► Easy to Install
Parts have been high pre-assembly on the factory to save your installation time.



► Flexible and Adjustable
Intelligent design reduces the difficulty of installation in most cases.



► Maximum Lifespan
All parts are made of high quality extruded aluminum, carbon steel and stainless steel
The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.



Projects:



Metal Photovoltaic Mounting Structures,Galvanized Base Ground Mounted Solar PV Systems 0



Metal Photovoltaic Mounting Structures,Galvanized Base Ground Mounted Solar PV Systems 1



Real projects that we provided for our customer, Solar Power Generation Project 81.24MW Located in Pakistan



Packaging and delivery:



Metal Photovoltaic Mounting Structures,Galvanized Base Ground Mounted Solar PV Systems 2
