Rustproof Reusable Solar PV Flat Roof Mounting Systems

Minimum Order Quantity : 5 set Price : US $0.05-0.18 / Watts
Packaging Details : standard export packing Delivery Time : 15-25 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 30MW/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Solar Panel Roof Mounting Systems

Detail Information

Height Clearance: 8' To 15' Typical Space-to-Column Ratio: 3:1 Or 4:1 Typical
Roof Inclination: 0° To 15° Typical Engineering Service: Acceptable
Installation Time: 7~15working Days (1MW Project) Depth: Unlimited
High Light:

PV Flat Roof Mounting Systems


Rustproof Flat Roof Mounting Systems


Reusable Photovoltaic Mounting System

Product Description

Easy and quick Installation Photovoltaic Mounting System, Durable Solar Panel Flat Roof Mounting Kits



The related products of solar energy support system are made of carbon steel and stainless steel. The surface of carbon steel is galvanized by hot dip galvanizing. It has been used outdoors for 30 years without rust. The solar photovoltaic support system is characterized by no welding, no drilling, 100% adjustable and 100% reusable.
The design of metal roof installation system is flexible and can be applied to commercial and residential roof solar systems. It is suitable for steel roofs from 10 degrees to 60 degrees. To simplify the brackets mounting, we have designed rails that can put into clamp fixture block easily.
The solar roof mounting system offers easy installation for most current PV modules. You can choose panels arrangement according to your roof size.


Roof mount/ bracket/ racking system:


Types: Roof solar mounting

Panel direction: Vertical or landscape
Structural materials Aluminum Alloy, Hot-Galvanized Steel, Stainless Steel
Color: Natural or Customized
Surface treatment: Anodized/HDG
Ground Clearance: ≥0.15m
Module Orientation: Portrait, landscape
Array Layout: According to the actual situation
Shape: According to drawing and sample
Specifications: According to your design drawings and your samples
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000, TÜA, CE


  Mount Type   Solar mounting bracket/ pv solar panel roof mount/ bracket/ racking system
  Installation Site   Roof
  Application   Framed solar panel for any size
  Structural materials   aluminum, stainless steel
  Survival wind speed   Up to130mph(60m/s)
  Design snow pressure   Up to 30psf(1.4KN/m2)
  Inclination   0 degree (the same angle as roof)
  Panel direction   vertical or landscape
  Warranty   Design Life for 25 years, quality assurance for 10 years




1. Professional customized design
The product is designed by experienced designers, with stable structure and mature technology, which can reduce installation difficulty in most cases


2. Enables easy,fast and cost-effective installation
The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.


3. Great quality
High quality material in galvanized steel and SUS 304, highly corrosion resistant surface treatment.


4. Safety
The racking systems can stand up to the extreme weather condition. The main support components have also been tested to guarantee its structure and load-carrying capacity.


5. Flexible and Stable
The flexibility of screw foundation-ground screw or concrete foundation.
The PV-Terrain A, with its fully adjustable design, maximumly absorbs the size error caused by the construction, and guarantees the stability and beauty of PV matrix structure .


6. Widely application
The mounting system suitable for various kinds of project, including residential project, commercial project, utility project and so on.

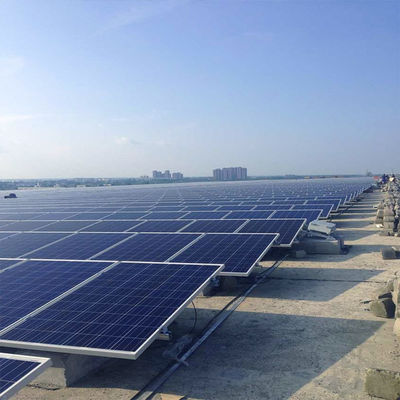

Rustproof Reusable Solar PV Flat Roof Mounting Systems 0


Packaging & Shipping:

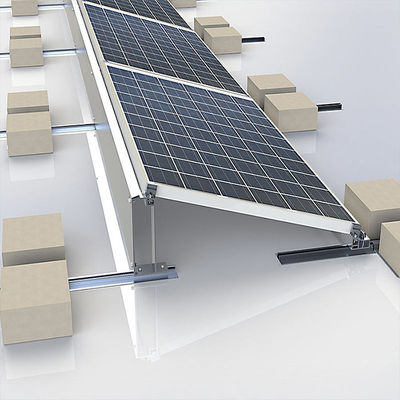

Rustproof Reusable Solar PV Flat Roof Mounting Systems 1


Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface

► Port: Tianjin, Shanghai, Qingdao

► Payment Terms: L/C,D/A,D/P,T/T

Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits


Our Certificates:

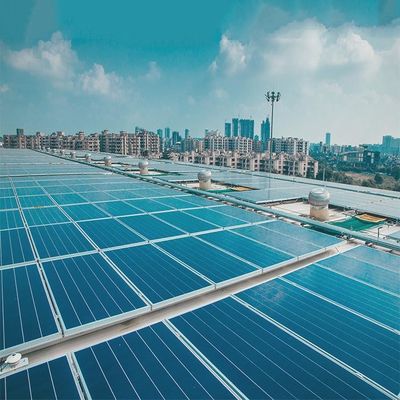

Rustproof Reusable Solar PV Flat Roof Mounting Systems 2

Rustproof Reusable Solar PV Flat Roof Mounting Systems 3
