Galvanized Stainless Steel Greenhouse Solar Mounting Structure
Contact Person : Hanna
Phone Number : 86-18702773499
WhatsApp : +8618702773499
| Minimum Order Quantity : | 5 set | Price : | USD1500-2000/set |
|---|---|---|---|
| Packaging Details : | 1.Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safty and waterproof. 2.Customized packing | Delivery Time : | 15-25 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 30MW/month |
| Place of Origin: | CHINA | Brand Name: | TIANFON |
|---|---|---|---|
| Certification: | SGS,ISO 9001,ISO 14001,OHSAS 18000 | Model Number: | Greenhouse Solar System |
|
Detail Information |
|||
| Install Site: | Open Ground | Tilt Angle: | 10-60° |
|---|---|---|---|
| Max. Wind Speed: | 60m/s | Max. Snow Load: | 1.4KN/m2 |
| Anticorrosive: | Anodized Aluminum & Galvanized & Stainless Steel | Material: | Al 6005-T5 & SUS 304 & Hot Galvanized Steel |
Product Description
Rust Protection Anodized Integrated PV Panel Mounting Systems Greenhouse Thin Film Module Support Structure
Agricultural Greenhouse Power Station System is a highly pre-installed agricultural power station system suitable for agricultural greenhouse vegetable cultivation and photovoltaic power generation.
The use of roof power generation can not only meet the electricity demand of agricultural greenhouses, Sell the remaining electricity to the grid and increase revenue.
Flexible to customize according to different project situation. According to the project needs, adjust the light transmission rate, and make full use of the land. Optimization material use, structure verification approval by wind load and snow load testing. High quality materials AL6005 and SUS304. Structural validation JIS/DIN.
Parameter:
Quick details:
1. Galvanization material, excellent performance of rust protection.
2. Thickness:2.0mm/2.5mm or customization.
3. Length: 4m, 6m or 9.6m or customization.
4. Pipe dimension customized as your requirement.
5. Economical and Practical.
6. Widely used in Multi-span Greenhouse and Single Span, Glass cover greenhouse, PC sheet cover greenhouse, and film cover greenhouse.
Specs:
| Module array | Two vertical or customized |
| Installation Angle | 5-30° |
| Application | Farm/Vegetable and crop plantation |
| Base | Static pressure tube pile |
| Thickness | 2.0mm/2.5mm or customization |
| Length | 4m, 6m or 9.6m or customization |
| Column Space | 4m/8m |
| Material | Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. / Galvanization material |
| Surface Treatment | Hot-Dipped Galvanization or Anodizing |
| Color | As per customer demand / Natural or Customized |
| Span | 6.4-12m |
| Tilt angle | 10-60° |
| Heating System | Heating Boiler, Garden heating, Customized |
| Frame structure | Galvanized steel |
| Wind Load | ≤ 60m/s |
| Snow Load | ≤ 1.4KN/m² |
| Attached Equipment | External/Internal Shading System |
| Panel type | Frame/ Frameless |
| Specification | Customize |

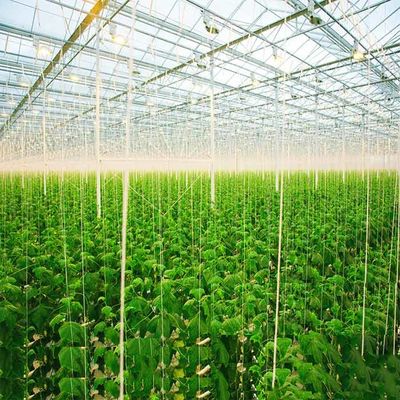

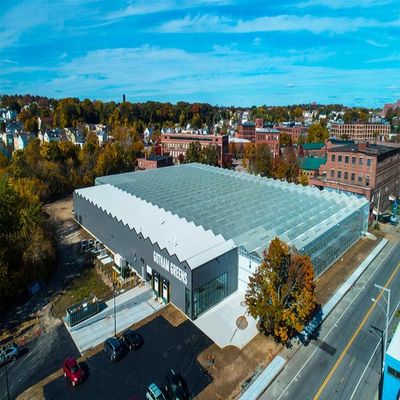

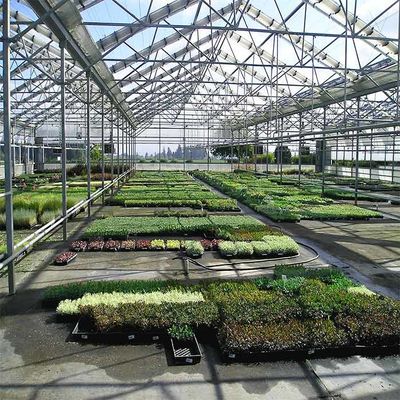

Project Case:
Agricultural Greenhouse Project, Located in Hainan Province
Packaging & Delivery:
► Port: Tianjin, Shanghai, Qingdao
► Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface
► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits
► Payment Terms: L/C,D/A,D/P,T/T
Certificates:
