On Off Grid Galvanized Steel Profile Customized Color Wind Seismic Resistance For Solar Panel Mounting Structures

Minimum Order Quantity : 2000 pcs Price : USD50-300/pcs
Packaging Details : standard export packing Delivery Time : 15-25 work days
Supply Ability : 200000 pcs/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Galvanized Steel Profile

Detail Information

Name: Universal Beam For Solar Mounting System Color: Natural Or Customized
Surface Treatment: Galvanized,Anodized Type: On/off Grid
Duration: More Than 25 Years Warranty: 10 Years

Product Description

On Off Grid Structural Steel Carbon Steel Universal Beam for Solar Mounting System



As the main structure of the photovoltaic installation system, the galvnized steel are made by good quality Q235B and Q345B.The performance of load-bearing,wind resistance and seismic resistance has been given sufficient consideration,which will ensure the safety of the system.

The galvanized steel bracket has stable performance, mature manufacturing process and high bearing capacity. Therefore, it is mainly used in power plants with strength requirements, such as large ground power stations. The bracket made of this material is currently widely used in photovoltaic support.



Specs:



Name



Size(mm)



Thickness(mm)



Material



Surface treatment



Photo 1



Photo 2



C type steel

C40*40*10

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

On Off Grid Galvanized Steel Profile Customized Color Wind Seismic Resistance For Solar Panel Mounting Structures 0

On Off Grid Galvanized Steel Profile Customized Color Wind Seismic Resistance For Solar Panel Mounting Structures 1

C60*40*15

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

C80*40*15

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

C100*50*15

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

C120*50*20

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

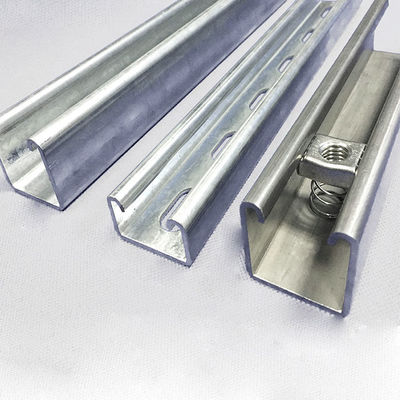

U type steel

U41*21

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

On Off Grid Galvanized Steel Profile Customized Color Wind Seismic Resistance For Solar Panel Mounting Structures 2

On Off Grid Galvanized Steel Profile Customized Color Wind Seismic Resistance For Solar Panel Mounting Structures 3

U41*41

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

U52*41

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

U62*41

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

U72*41

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

Round tube

φ60

2.5

Q235B/Q345B

Hot-Dip Galvanizing

On Off Grid Galvanized Steel Profile Customized Color Wind Seismic Resistance For Solar Panel Mounting Structures 4

On Off Grid Galvanized Steel Profile Customized Color Wind Seismic Resistance For Solar Panel Mounting Structures 5

φ60

3.0

Q235B/Q345B

Hot-Dip Galvanizing

φ76

4.0

Q235B/Q345B

Hot-Dip Galvanizing

φ89

4.0

Q235B/Q345B

Hot-Dip Galvanizing

Square tube

40*40

2.0-2.5

Q235B/Q345B

Hot-Dip Galvanizing

On Off Grid Galvanized Steel Profile Customized Color Wind Seismic Resistance For Solar Panel Mounting Structures 6

On Off Grid Galvanized Steel Profile Customized Color Wind Seismic Resistance For Solar Panel Mounting Structures 7

Rectangular tube



60*40

2.0-3.0

Q235B

Hot-Dip Galvanizing

On Off Grid Galvanized Steel Profile Customized Color Wind Seismic Resistance For Solar Panel Mounting Structures 8

On Off Grid Galvanized Steel Profile Customized Color Wind Seismic Resistance For Solar Panel Mounting Structures 9

80*40

2.0-3.0

Q235B

Hot-Dip Galvanizing



Products can be customized according to customer requirement.



Product feature:



1. Manufactured from high tensile galvanized steel.


2. All components are highly pre-assembled, ensure the mounting system fast installation and saving labor cost.


3. C purlin may be used in single spans and continuous spans in multi-bay buildings.


4. High quality & reasonable Price, no need welding and punching, can use repeatedly, wide usage range, flexible for installation.


5. Products can be customized according to customer requirement.



On Off Grid Galvanized Steel Profile Customized Color Wind Seismic Resistance For Solar Panel Mounting Structures 10



Packaging & Shipping:



► Package: strong and long distance transportation package

► Place of loading: Basic Seaport, China

► Payment Terms: L/C,D/A,D/P,T/T

Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits



On Off Grid Galvanized Steel Profile Customized Color Wind Seismic Resistance For Solar Panel Mounting Structures 11



Our Certificates:



On Off Grid Galvanized Steel Profile Customized Color Wind Seismic Resistance For Solar Panel Mounting Structures 12

On Off Grid Galvanized Steel Profile Customized Color Wind Seismic Resistance For Solar Panel Mounting Structures 13
