Building or Construction HDG Perforated Galvanized U Channel, PV Mounting Structure Cold Formed Channel for Solar System

Minimum Order Quantity : 2000 pcs Price : USD50-300/pcs
Packaging Details : standard export packing Delivery Time : 15-25 work days
Supply Ability : 200000 pcs/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Galvanized Steel Profile

Detail Information

Name: Galvanized Steel Profile Color: Silver
Shape: U Channel Application: PV Mounting Structure
Technique: Hot Rolled Steel Channel Material: Q235,Q345

Product Description

Building or Construction HDG Perforated Galvanized U Channel, PV Mounting Structure Cold Formed Channel for Solar System



The C purlin is made of high-quality galvanized steel or hot rolled black finish steel, rolled to a certain length with holes punched to your specification.It is available in different sizes and material strengths to match the design specification of your project.


It’s thin with light weight, has cross section excellent performance and high strength. Compared with the traditional channel,it can save 30% with the same strength.


As the main structure of the pv mounting system,the galvnized steel are made by good quality Q235B and Q345B.The performance of load-bearing,wind resistance and seismic resistance has been given sufficient consideration,which will ensure the safety of the system.



Product Parameters:





Name



Size(mm)



Thickness(mm)



Material



Surface treatment



Photo 1



Photo 2

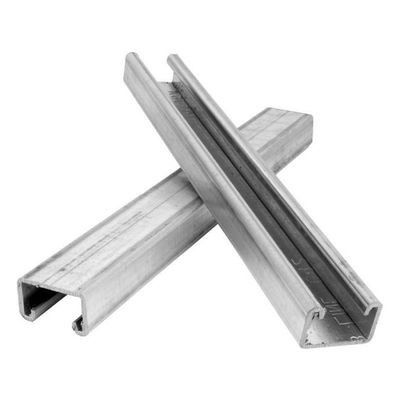

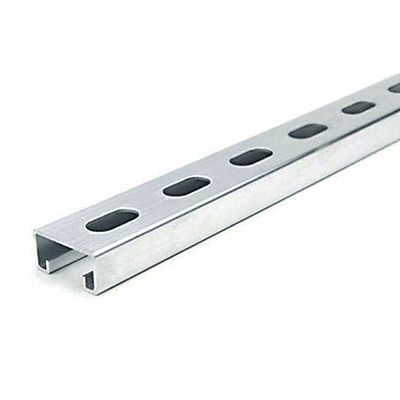

C type steel

C40*40*10

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

Building or Construction HDG Perforated Galvanized U Channel, PV Mounting Structure Cold Formed Channel for Solar System 0

Building or Construction HDG Perforated Galvanized U Channel, PV Mounting Structure Cold Formed Channel for Solar System 1

C60*40*15

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

C80*40*15

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

C100*50*15

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

C120*50*20

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

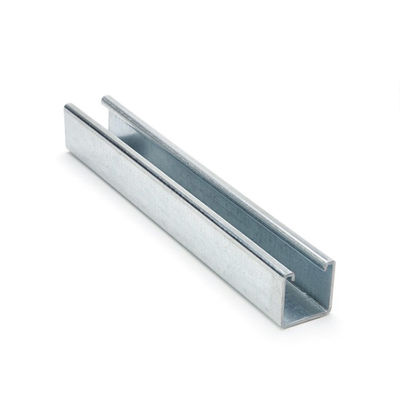

U type steel

U41*21

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

Building or Construction HDG Perforated Galvanized U Channel, PV Mounting Structure Cold Formed Channel for Solar System 2

Building or Construction HDG Perforated Galvanized U Channel, PV Mounting Structure Cold Formed Channel for Solar System 3

U41*41

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

U52*41

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

U62*41

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

U72*41

1.5-2.5

Q235B/Q345B

Hot-Dip Galvanizing

Round tube

φ60

2.5

Q235B/Q345B

Hot-Dip Galvanizing

Building or Construction HDG Perforated Galvanized U Channel, PV Mounting Structure Cold Formed Channel for Solar System 4

Building or Construction HDG Perforated Galvanized U Channel, PV Mounting Structure Cold Formed Channel for Solar System 5

φ60

3.0

Q235B/Q345B

Hot-Dip Galvanizing

φ76

4.0

Q235B/Q345B

Hot-Dip Galvanizing

φ89

4.0

Q235B/Q345B

Hot-Dip Galvanizing

Square tube

40*40

2.0-2.5

Q235B/Q345B

Hot-Dip Galvanizing

Building or Construction HDG Perforated Galvanized U Channel, PV Mounting Structure Cold Formed Channel for Solar System 6

Building or Construction HDG Perforated Galvanized U Channel, PV Mounting Structure Cold Formed Channel for Solar System 7

Rectangular tube



60*40

2.0-3.0

Q235B

Hot-Dip Galvanizing

Building or Construction HDG Perforated Galvanized U Channel, PV Mounting Structure Cold Formed Channel for Solar System 8

Building or Construction HDG Perforated Galvanized U Channel, PV Mounting Structure Cold Formed Channel for Solar System 9

80*40

2.0-3.0

Q235B

Hot-Dip Galvanizing



Products can be customized according to customer requirement.



Product Feature:



1. Manufactured from high tensile galvanized steel


2. Pre-punched holes based on detail design


3. C purlin may be used in single spans and continuous spans in multi-bay buildings


4. Uniform wall thickness and the excellent section performance


5. All components are highly pre-assembled, ensure the mounting system fast installation and saving labor cost


6. Custom-made service of cold formed steel according to customer's requirement



Application:



Building or Construction HDG Perforated Galvanized U Channel, PV Mounting Structure Cold Formed Channel for Solar System 10



Packaging & Shipping:



Building or Construction HDG Perforated Galvanized U Channel, PV Mounting Structure Cold Formed Channel for Solar System 11



► Payment Terms: L/C,D/A,D/P,T/T

Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface

► Port: Tianjin, Shanghai, Qingdao

Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits



Our Certificates:



Building or Construction HDG Perforated Galvanized U Channel, PV Mounting Structure Cold Formed Channel for Solar System 12

Building or Construction HDG Perforated Galvanized U Channel, PV Mounting Structure Cold Formed Channel for Solar System 13
