Flexible 5deg-15deg 2.5~3m Width Single Multi Carport Solar Systems

Minimum Order Quantity : 5 set Price : USD500-1000/set
Packaging Details : Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safty and waterproof. Delivery Time : 15-25 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 30MW/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Carport Solar Systems

Detail Information

Name: BIPV Carport Solar Systems Type: On/off Grid
Surface Treatment: Galvanized,Anodized Feature: Easy & Quick Installation
Engineering Service: Acceptable Thickness: 0.5mm-15mm
High Light:

3m Width Carport Solar Systems


2.5m Width Carport Solar Systems


ISO 14001 Carport Solar Systems

Product Description

Flexible 5deg-15deg 2.5~3m Width Single Multi Solar Carport
Photovoltaic carport is a new type of power generation method, and it is also a development trend in the future. It is mainly composed of a bracket system, a battery component array, a lighting and control inverter system, a charging device system, and a lightning protection and grounding system.
The system adopts a modular design to provide single parking spaces, double parking spaces, and even rows of parking spaces, which are easy to adjust.
The bracket system mainly includes support columns, inclined beams fixed between the support columns, purlins connected to the inclined beams to support the solar cell module array, and fasteners for fixing the battery module array.
Product Parameter :

 Installation Angel 5deg-15deg
 Application Private, Government and Enterprise’s Parking Lot
 Max Wind Speed Up to 42m/s
 Max Snow Load Up to 1.4KN/m2
 Fastener Stainless steel SS304
 Span(E-W) 5000mm
 Standard ground clearance 2500mm
 Panel array Landscape
 Rows 4/5/6

Material: Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. / Q235 hot dip galvanizing Coating over 65um
Surface Treatment: Hot-Dipped Galvanization or Anodizing
Lowest height: 2.5m
Width of space: 2.5~3m
Length of space: 6m
Support system: columns, inclined beams, purlins

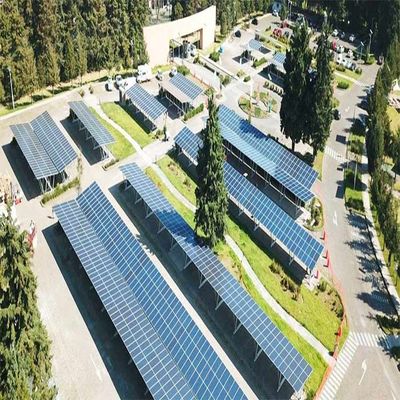

Flexible 5deg-15deg 2.5~3m Width Single Multi Carport Solar Systems 0
Flexible and Stable
With the adjustable design, maximally absorbs the size error caused by the construction, and guarantees the stability and beauty of the solar mounting structure.
Superb Quality
All raw materials of components are made of aluminum (anodized 6005-T5) and stainless steel (SUS304), which reach the maximum degree of product's weather resistance and the stability of the structure.
Easy Installation
The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.

Extraordinarily Environment-friendly Performance
All materials can be 100% recycled, and no waste is generated, which fully embodies the concept of energy saving and environmental protection of the solar photovoltaic power generating system.

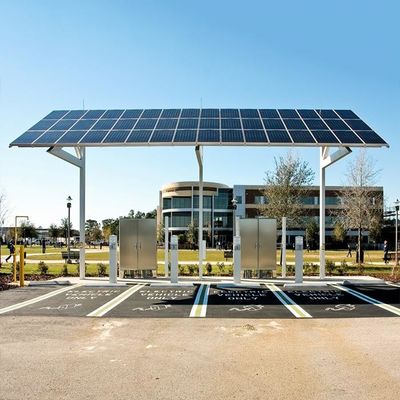

Flexible 5deg-15deg 2.5~3m Width Single Multi Carport Solar Systems 1

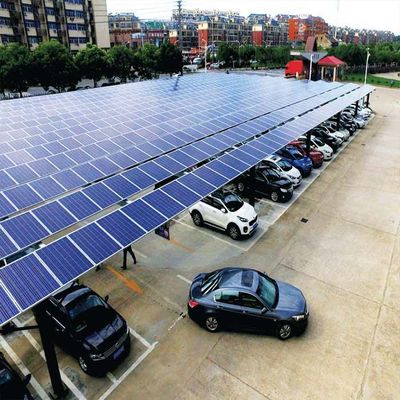

Flexible 5deg-15deg 2.5~3m Width Single Multi Carport Solar Systems 2
Flexible 5deg-15deg 2.5~3m Width Single Multi Carport Solar Systems 3


Packaging & Shipping:


Flexible 5deg-15deg 2.5~3m Width Single Multi Carport Solar Systems 4


► Payment Terms: L/C,D/A,D/P,T/T


► Port: Tianjin, Shanghai, Qingdao


► Package: strong and long distance transportation package


Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits
