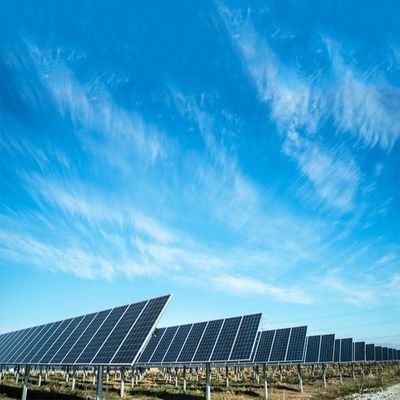

0-60 Degree Framed Or Frameless Ground Mounted PV Systems

Minimum Order Quantity : 1000 Watt/Watts Price : US $0.05-0.18 / Watts
Packaging Details : 1.Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safety and waterproof. 2.Customized packing Delivery Time : within 15-25 work days after receipt deposit
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100000 Watt/Watts per Week
Place of Origin: China Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18001 Model Number: Solar Panel Ground Mounting Systems

Detail Information

Name: Galvanized Steel Solar Panel Ground Mounting Systems Surface Treatment:: Galvanized,Anodized
Thickness: 0.5mm-15mm Engineering Service: Acceptable
Installation Time: 7~15working Days (1MW Project) Feature: Easy & Quick Installation
High Light:

Frameless Ground Mounted PV Systems

,

60 Degree Ground Mounted PV Systems

,

Framed Solar Pv Ground Mounting Systems

Product Description



0-60 degree Framed or Frameless Solar Panel Ground Mounting Systems



The Solar Mounting structure is used to fix the solar PV panels and provide support and inclination to the system.


Our ground solar mounting system can be used in desert, glass lands, gobi, ceramic, macadam, shallow sea beach(less than 5m), and other geological environments, the install quality doesn't affect by groundwater.


Depends on the field conditions we come up different foundation design, use the suitable racking post to provide high strength and withstand wind and snow loads and save the labor cost.



Short description:



Place of Origin: Hennan, China

Capacity: Strong

Array Layout: According to the actual situation

Type: Ground solar mounting

Usage: Support Solar Modules

Material: Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement.


Parameter:



 Treatment  Anodized, Galvanized
 Color  Silver Or Customized
 Structural materials  Aluminum Alloy, Hot-Galvanized Steel, Stainless Steel
 Install Angle  0-60 degree
 Ground Clearance  ≥ 0.15m
 Wind load  130mph(60m/s)
 Snow Load  30psf(1.4kN/m2)
 Applicable Module  Framed or Frameless
 Module Orientation  Portrait, landscape
 Warranty  10 years
 Treatment  Anodized, Galvanized



Benefits:



► The Tianfon mounting system compatible with most of the major framed and frameless PV modules on the market.



► Products were designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.



► The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.



► Reduced installatin times due to high pre-fabrication leve; MInimized assembly time and effort (up to 40%).



► The racking systems can withstand extreme weather condition. The main supporting components have also been tested to ensure their structure and bearing capacity.



► The mounting system suitable for various kinds of project, including residential project, commercial project, utility project and so on.


Application:

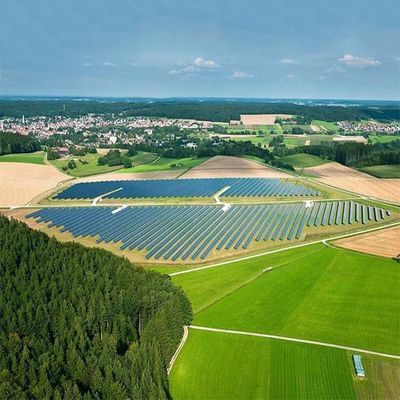

0-60 Degree Framed Or Frameless Ground Mounted PV Systems 0



Packaging and delivery:

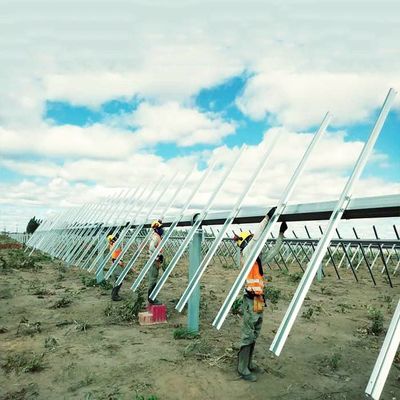

0-60 Degree Framed Or Frameless Ground Mounted PV Systems 1



► Package: strong and long distance transportation package

► Place of loading: Basic Seaport, China

► Payment Terms: L/C,D/A,D/P,T/T



Our Certificates:



0-60 Degree Framed Or Frameless Ground Mounted PV Systems 2

0-60 Degree Framed Or Frameless Ground Mounted PV Systems 3
