10 15 20 30 Angle Concrete Rooftop Solar Panel Mounting Systems

Minimum Order Quantity : 5 set Price : USD 50-80/set
Packaging Details : standard export packing Delivery Time : 15-25 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 30MW/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Solar Panel Roof Mounting Systems

Detail Information

Name: Solar Panel Roof Mounting Systems Specification: As Required
Application: Industrial,Commercial,Residential Material: HDG. Steel,Aluminum Alloy & Stainless Steel
Tilt Angle: 10/15/20/30/ Customized Color: Natural Or Custom
High Light:

30 Angle Rooftop Solar Panel Mounting Systems

,

15 Angle Rooftop Solar Panel Mounting Systems

,

1.4KN/m2 PV Roof Mounting Systems

Product Description



10/15/20/30/ Customized Angle Concrete Rooftop Solar Panel Mounting Systems



Short Description:



Flat roof mounting system is engineered for the maximum flexibility possible in designing for the commercial and residential solar roof system. It is applicable to large-scale flat roof module installation. The special design also makes the installation easy and fast.



Surface Treatment: Hot Dip Galvanizing



Ground Clearance: ≥0.15m


Applicable Module: Framed, Frameless


Module Orientation: Portrait, Landscape


Array Layout: According to the actual situation

Wind Load: ≤45m/s


Snow Load: ≤50cm


Material: Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement


Product Specifications:



   Installation Site    Rooftop
   Application    Roof of High Buildings and Large Mansions
   Color    Silver Or Customized
   Wind Speed    60m/s
   Snow Load    1.4KN/m2
   Material    Steel Q235, Q245, Aluminum 6005-T5
   Module Angle    10-60 Degrees According to Your Requirement or Latitude
   Warranty    10 Years
   Service Life    25 Years
   Installation Angle    5-40 Degree
   Components Parts    Leg Cap; Front / Rear Leg; Fix Ring; Cross Pipe; U Connector; Rail; Mid Clamp; End Clamp; Enforcement Pipe
   Advantages    Easy Installation;
   Safety And Reliability;
   10 -Year Warranty:



Product feature:

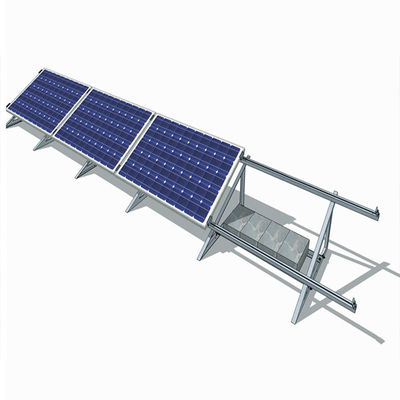

The adjustable weight-bearing box is installed on the underframe, there are cement block and stones placed on;



Suit any specifications crystalline silicon and part thin film components;



Design installation degree according to actual requirements;



Protect the original waterproof layer, no need waterproofing work.



10 15 20 30 Angle Concrete Rooftop Solar Panel Mounting Systems 0

Packaging & Delivery:



10 15 20 30 Angle Concrete Rooftop Solar Panel Mounting Systems 1



► Min.Order Quantity: 5 Set



► Payment Terms: L/C,D/A,D/P,T/T



► Supply Ability: 50000 Set/Sets per Month



► Port: Tianjin, Shanghai, Qingdao



Certification:



10 15 20 30 Angle Concrete Rooftop Solar Panel Mounting Systems 2

10 15 20 30 Angle Concrete Rooftop Solar Panel Mounting Systems 3
