No Drilling Frameless Aluminum Mid End Solar Panel Clamps Mounting Kits

Minimum Order Quantity : 2000 set Price : USD5-50/set
Packaging Details : standard export packing Delivery Time : 15-25 work days
Supply Ability : 200000 set/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Solar Panel Clamps

Detail Information

Color: Silver Material: AL 6005 T5
Type: Solar End Clamp Installation Site: Roof & Ground
Max Wind Load: 60m/s Max Snow Load: 1.4 KN/m2
High Light:

Aluminum Mid End Solar Panel Clamps

,

AL 6005 T5 Mid End Solar Panel Clamps

,

No Drilling Frameless Solar Panel Clamps

Product Description

No drilling Frameless Aluminum Mid End Solar Panel Clamps Mounting Kits



Short Description:


The clamps are made of anodized aluminum/galvanized steel with the quality of corrosion-resistance and strong intensity. It can be used for different PV kits and different PV arrangements whichcan be interchange randomly.



Product Feature:



Flexibility: roof mount, pole mount, ground mount, ballasted mount, etc both for on grid and off-grid systems, for framed and frameless panels.



Easy Installation: All kits are highly assembled in factory. The tilt in module can be located in any location of rails.



MOQ: Sample orders are allowed.



Delivery Time: 7-15 days when orders are confirmed.





Name



Size



Material



Surface treatment



Photo 1



Photo 2

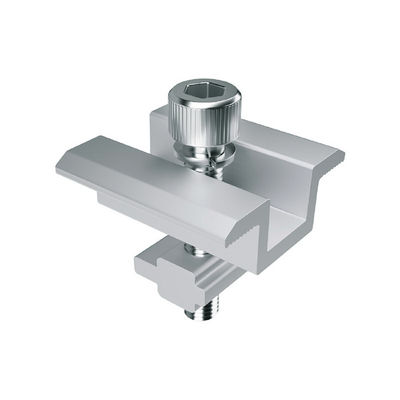

Middel clamp

35/40/45/50mm

Aluminum 6063-T5

Anodizing

No Drilling Frameless Aluminum Mid End Solar Panel Clamps Mounting Kits 0

No Drilling Frameless Aluminum Mid End Solar Panel Clamps Mounting Kits 1

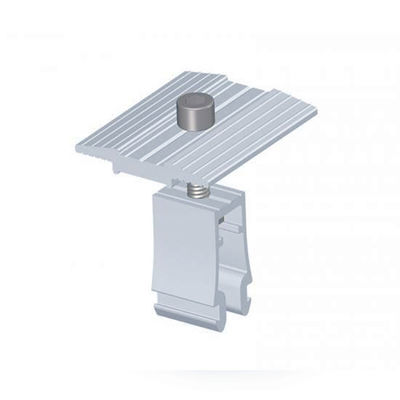

End clmap

35/40/45/50mm

Aluminum 6063-T5

Anodizing

No Drilling Frameless Aluminum Mid End Solar Panel Clamps Mounting Kits 2

No Drilling Frameless Aluminum Mid End Solar Panel Clamps Mounting Kits 3

Middle clamp for thin module

80/100/120mm

Aluminum 6063-T5

Anodizing

No Drilling Frameless Aluminum Mid End Solar Panel Clamps Mounting Kits 4

No Drilling Frameless Aluminum Mid End Solar Panel Clamps Mounting Kits 5

End clamp for thin module

80/100/120mm

Aluminum 6063-T5

Anodizing

No Drilling Frameless Aluminum Mid End Solar Panel Clamps Mounting Kits 6

No Drilling Frameless Aluminum Mid End Solar Panel Clamps Mounting Kits 7

Trapezoidal clamp

345mm

Aluminum 6063-T5

Anodizing

No Drilling Frameless Aluminum Mid End Solar Panel Clamps Mounting Kits 8



Lysaght clamp

345mm

Aluminum 6063-T5

Anodizing

No Drilling Frameless Aluminum Mid End Solar Panel Clamps Mounting Kits 9



Standing seam roof clamp

345mm

Aluminum 6063-T5

Anodizing

No Drilling Frameless Aluminum Mid End Solar Panel Clamps Mounting Kits 10





Application:



No Drilling Frameless Aluminum Mid End Solar Panel Clamps Mounting Kits 11



Our Certificates:



No Drilling Frameless Aluminum Mid End Solar Panel Clamps Mounting Kits 12

No Drilling Frameless Aluminum Mid End Solar Panel Clamps Mounting Kits 13



Packaging & Shipping:



► Place of loading: Basic Seaport, China



► Package: strong and long distance transportation package



► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits



► Payment Terms: L/C,D/A,D/P,T/T



No Drilling Frameless Aluminum Mid End Solar Panel Clamps Mounting Kits 14
