Q345 6063 PV Mounting Systems For Open Ground Carport

Minimum Order Quantity : 5 set Price : USD500-1000/set
Packaging Details : Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safty and waterproof. Delivery Time : 15-25 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 30MW/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Carport Solar Systems

Detail Information

Name: KW Scale Carport Structure System Design Material: Q235,Q345,6063,6005
Size: Customized Applicable Site: Open Ground
Applicable Module: Framed Or Frameless Panel Module Orientation: Vertical&horizental
High Light:

Q345 PV Mounting Systems


Open Ground Carport PV Mounting Systems


6063 Carport Solar Systems

Product Description


Open Ground Horizontal and vertical Parking Lot Q345 6063 PV Mounting Systems For Carport


Photovoltaic carport is a new way of power generation, and it is also a future trend of the society development, early installation and early benefit.


It is mainly composed of bracket system, solar panel array, lighting and control inverter system, charging device system and lightning protection and grounding system.


The system adopts high-strength carbon steel material photovoltaic support, and the surface is treated with high-quality hot-dip galvanizing, which has strong corrosion resistance and is suitable for various natural environments.


The system adopts a modular design to provide single parking spaces, double parking spaces, and even rows of parking spaces, which are easy to adjust.


Product Parameter :


Application: Private, Government and Enterprise’s Parking Lot

Material: Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. / Q235 hot dip galvanizing Coating over 65um


Fastener: Stainless steel SS304

Surface Treatment: Hot-Dipped Galvanization or Anodizing

Length of space: 6m

Lowest height: 2.5m

Width of space: 2.5~3m


Standard ground clearance: 2500mm

Warranty: 10 years

Duration: More than 25 years


 Intallation Angel  5deg-15deg
 Span(E-W)  5000mm
 Standard ground clearance  2500mm
 Max Wind Speed  Up to 42m/s
 Max Snow Load  Up to 1.4KN/m2
 Rows  4/5/6
 Panel array

 Horizontal and vertical




1. Easily to adapt to most ground mounting


2. Available to match various solar panels


3. Pre-assembled components designed for easy & fast installation


4. Vertical and horizontal installation solutions are available


5. Supports high wind and snow loads

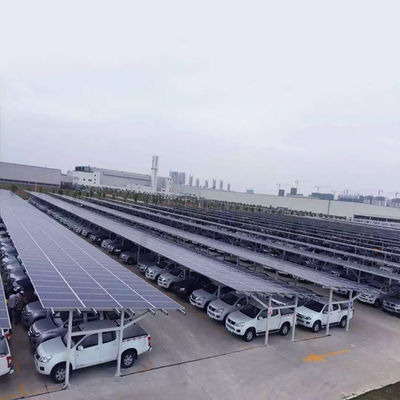

Q345 6063 PV Mounting Systems For Open Ground Carport 0

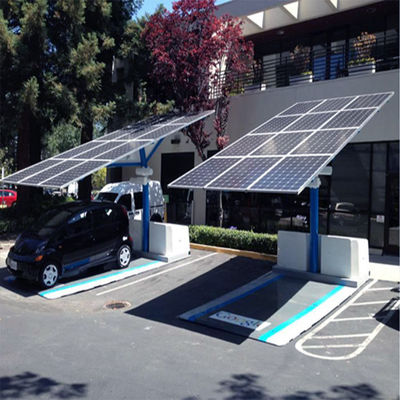

Q345 6063 PV Mounting Systems For Open Ground Carport 1


Our Certificates:

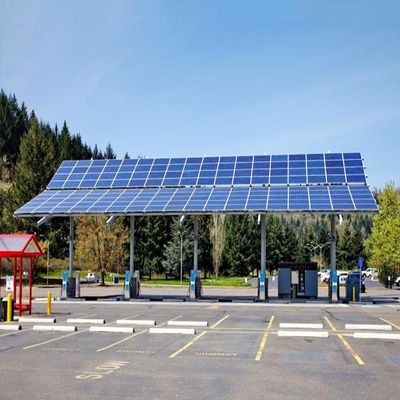

Q345 6063 PV Mounting Systems For Open Ground Carport 2

Q345 6063 PV Mounting Systems For Open Ground Carport 3


Packaging and delivery:


Q345 6063 PV Mounting Systems For Open Ground Carport 4


► Payment Terms: L/C,D/A,D/P,T/T


Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface


► Place of loading: Basic Seaport, China


Delivery Detail: Delivery time: 7--25 days after receiving customer’s deposits
