Galvanized SS Solar Ground Mounting Systems Snow Load 30psf

Minimum Order Quantity : 1000 Watt/Watts Price : US $0.05-0.18 / Watts
Packaging Details : 1.Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safety and waterproof. 2.Customized packing Delivery Time : within 15-25 work days after receipt deposit
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100000 Watt/Watts per Week
Place of Origin: China Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18001 Model Number: Solar Panel Ground Mounting Systems

Detail Information

Name: Solar Panel Ground Mounting Systems Structure Thickness: 0.5mm-15mm
Installation Time: 7~15working Days (1MW Project) Duration: More Than 25 Years
Color: Natural Or Customized Engineering Service: Acceptable
High Light:

Galvanized SS Solar Ground Mounting Systems

,

Solar Ground Mounting Systems OHSAS 18001

,

pv racking system snow load 30psf

Product Description

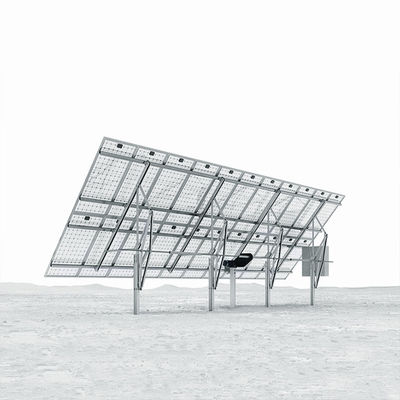

Mountain Plain Customized Galvanized Stainless Steel Solar Ground Mounting Systems



Ground mounting systems which are made of Q235B or Q345B steel will be hot dip galvanized, with an average thickness of 65-80 microns (µ). They have the advantages of light weight, high strength, and recyclability.


It provides easy installation and long-term durability, setting a solid foundation for successful photovoltaic installation projects
With the continuous changes in market demand, our professional R&D department continues to improve and design new solar installation systems to meet different needs.



Short introduction:



Usage: Support Solar Modules

Model Number: Solar Ground Mounts

Max Building Height: 20m

Structural materials: Aluminum Alloy, Hot-Galvanized Steel, Stainless Steel

Feature: Super quality;Great Compatibility; Quick Installation



Parameters:


 Type  Ground solar mounting
 Color  Natural or Customized
 Surface Treatment  Hot Dip Galvanizing & Anodized
 Array Layout  According to the actual situation
 Install Angle  0-60 degree
 Ground Clearance  ≥0.15m
 Wind load  130mph(60m/s)
 Snow Load  30psf(1.4kN/m2)
 Applicable Module  Framed, frameless
 Module Orientation  Portrait, landscape
 Duration  More than 20 years


Advantages:



► Customized
According to the needs of the project, the light transmittance should be adjusted to make full use of the land.



► Flexible and Adjustable
Intelligent design reduces the difficulty of installation in most cases.



► High quality materials
High quality materials AL6005 and SUS304. Structural validation JIS/DIN.



► Easy to Install
Parts have been high pre-assembly on the factory to save your installation time.



► Maximum Lifespan
All parts are made of high quality extruded aluminum, carbon steel and stainless steel
The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.



Real Projects:

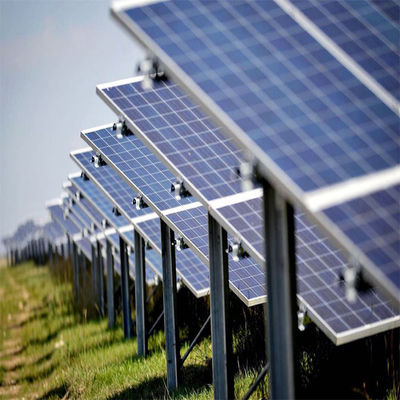

Galvanized SS Solar Ground Mounting Systems Snow Load 30psf 0

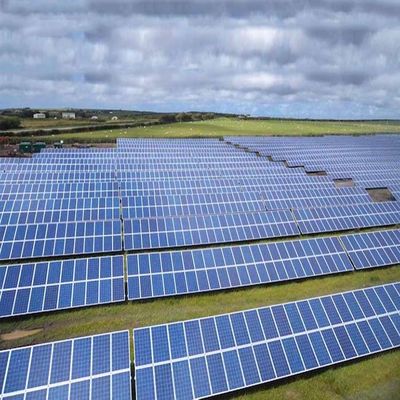

Galvanized SS Solar Ground Mounting Systems Snow Load 30psf 1



Real projects that we provided for our customer, Solar Power Generation Project 81.24MW Located in Pakistan



Packaging and delivery:



► Port: Tianjin, Shanghai, Qingdao



► Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface



► Payment Terms: L/C,D/A,D/P,T/T



► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits



Galvanized SS Solar Ground Mounting Systems Snow Load 30psf 2



Our Certificates:



Galvanized SS Solar Ground Mounting Systems Snow Load 30psf 3

Galvanized SS Solar Ground Mounting Systems Snow Load 30psf 4
