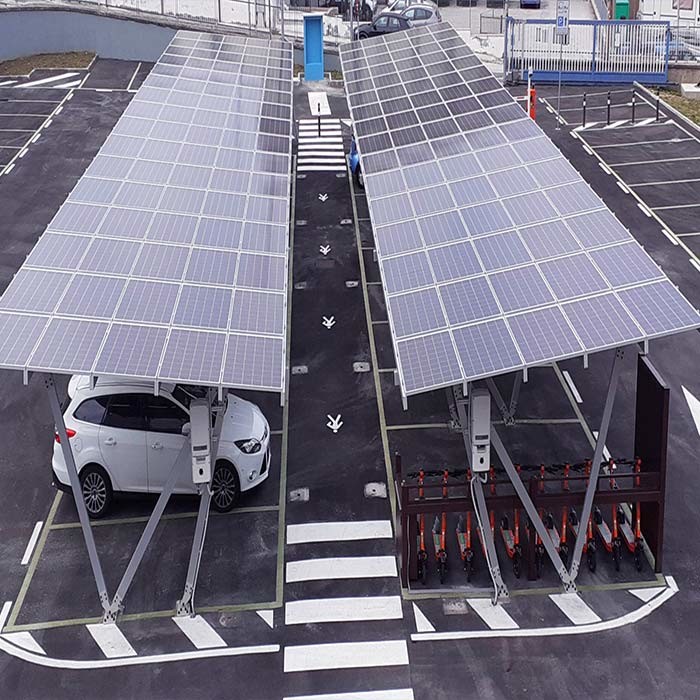

5deg 10deg 15deg Galvanized Residential Solar Carport Structures

Minimum Order Quantity : 5 set Price : USD500-1000/set
Packaging Details : Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safty and waterproof. Delivery Time : 15-25 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 30MW/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Carport Solar Systems

Detail Information

Name: Carport Mounting Brackets Structure Type: On/off Grid
Surface Treatment: Galvanized,Anodized Warranty: 10 Years
Duration: More Than 25 Years Tilt Angle: 10/15/20/30/ Customized
High Light:

Galvanized Residential Solar Carport Structures


15deg Residential Solar Carport Structures


5deg residential solar carport kit

Product Description


5deg-15deg Galvanized Residential PV Carport Mounting Structures


Photovoltaic carport is a highly versatile and economical ground carport photovoltaic support system suitable for the construction of commercial power stations and the needs of various enterprises and institutions for this type of electricity.

The system adopts a modular design to provide single parking spaces, double parking spaces, and even rows of parking spaces, which are easy to adjust.

Generally, a steel structure bracket is used, which is simple, generous, stylish and beautiful, and is a clean and environmentally friendly new energy source, which effectively relieves social environmental and energy pressure.


Product Parameter :


 Installation Angel  5deg-15deg
 Max Wind Speed  up to 42m/s
 Max Snow Load  up to 1.4KN/m2
 Span(E-W)  5000mm
 Standard ground clearance  2500mm
 Panel array  Landscape
 Rows  4/5/6


Application: Private, Government and Enterprise’s Parking Lot
Lowest height: 2.5m
Width of space: 2.5~3m
Length of space: 6m
Support system: columns, inclined beams, purlins
Fastener: Stainless steel SS304
Material: Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. / Q235 hot dip galvanizing Coating over 65um
Surface Treatment: Hot-Dipped Galvanization or Anodizing
Warranty: 10 years
Duration: More than 25 years




► Professional customized design

Products were designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.


► Easy installation

The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.


► Widely application

The mounting system suitable for various kinds of project, including residential project, commercial project, utility project and so on.


► Super quality

All products are made by experienced skilled staffs to operate quality. With strictly full inspected and controlled by Qc department


► Safety

The racking systems can stand up to the extreme weather condition. The main support components have also been tested to guarantee its structure and load-carrying capacity.




5deg 10deg 15deg Galvanized Residential Solar Carport Structures 0

5deg 10deg 15deg Galvanized Residential Solar Carport Structures 1


Packaging & Delivery:


5deg 10deg 15deg Galvanized Residential Solar Carport Structures 2


► Port: Tianjin, Shanghai, Qingdao

► Payment Terms: L/C,D/A,D/P,T/T




5deg 10deg 15deg Galvanized Residential Solar Carport Structures 3

5deg 10deg 15deg Galvanized Residential Solar Carport Structures 4
