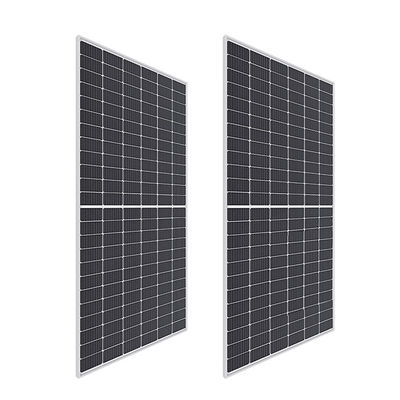

TPT Backsheet ERA 440W 445W 450W Monocrystalline PV Module

Payment Terms : L/C, T/T Supply Ability : 1000 Watt/Watts
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Solar Panels

Detail Information

Cell Type: MBB Half-cut Solar Cell Size: 2094x1038x40mm
Weight: 24 Kg Backsheet (color): TPT In White
Company Certificate: ISO9001,ISO14001,ISO18001 Front Cover (material / Thickness): Low-iron Tempered Glass / 3.2mm
Cell (quantity / Material / Dimensions): 144(6x24) / Monocrystalline Silicon Frame (material / Color): Aluminum Hollow-chamber Frame On Each Side Anodized Aluminum Alloy / Silver
Cables & Plug Connectors (protection Degree): 4mm 2 , 300mm In Length,length Can Be Customized Payment Terms: L/C, T/T
High Light:

TPT Backsheet Monocrystalline PV Module


450W Monocrystalline PV Module


ERA Mono PV Solar Panels

Product Description


ERA 440W-450W Monocrystalline PV Module





Module type: ESPHSC 440M 445M 450M
Maximum Power(Wp) 440W 445W 450W
Open circuit Voltage(Voc) 48.9V 49.1V 49.3V
Short circuit Current(Isc) 11.46A 11.53A 11.60A
Maximum Power Voltage(Vm) 41.1V 41.3V 41.5V
Maximum Power Current(Im) 10.71A 10.78A 10.85A
Module efficiency 20.24% 20.47% 20.70%
Maximum Series Fuse 20A
Watts positive tolerance 0~+5%
Number of Diode 3
Standard Test Conditions 1000W/M²,25°C,AM1.5
Maximum System Voltage +1000/1500 V/DC
Temperature-Coefficient Isc -0.049%/°C
Temperature-Coefficient Voc -0.271%/°C
Temperature-Coefficient Pmpp -0.352%/°C
Normal Operating Cell Temperature -40°C...+85°C
Load Capacity for the cover of the module (glass) 5400Pa(IEC61215)(snow)
Load Capacity for the front & back of the module 2400Pa(IEC61215)(wind)
Product Certificate TUV(IEC 61215,IEC 61730),CE,
Company Certificate ISO9001,ISO14001,ISO18001


Key Features:


► MBB Half-cut Solar Cell:

120 cells( 6X20); 9 busbar solar cell


►Higher Module Conversion Efficiency:

Higher module output up to 380W with module efficiency up to 20.85%


► Low-light Performance:

Advanced glass and surface texturing allow for excellent performance in low-light environments


► Lower operating temperature:
Ensure the operating security; better for hot region


► Reduced hot spot risk:
With optimized electrical design and lower operating current


Advantages of Solar Energy:


1. Solar energy is kind of universal, decentralized and no -polluting energy.


2. Solar energy is the energy of the sun, which reaches earth in the form of short wave radiation visible light and near ultraviolet light.


3. Solar energy helps considerably in maintaining the ecological balance through the process of photosynthesis and green house effect.


4. Solar energy is bound to achieve great economic importance in future because of depletion trend of convention energy sources.


We have paced the whole nation in the field of PV industry, not only on its product lines, but also upon its innovation.


We serves global customers with high-quality products and professional services. The modules can be installed on residential and commercial rooftops, ground-mounted power plants, as floating arrays, and much more.


Other than our competitive prices for pv modules and related solar energy products, we also offer the most comprehensive and accessible customer support for you.

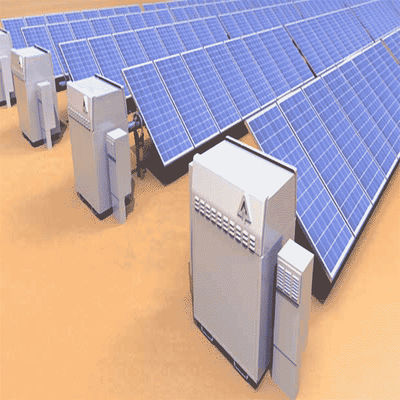

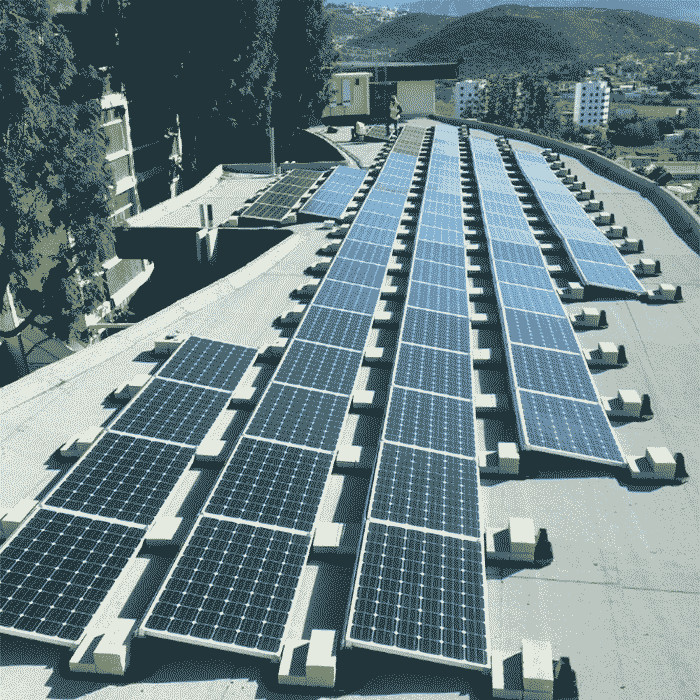

Project Reference:


TPT Backsheet ERA 440W 445W 450W Monocrystalline PV Module 0


Packaging and delivery:


Container Size Units/Pallet(PCS) Weight/Pallet(KG) Pallet Measurment(mm) Units/Container (PCS)
20GP 50(26+24) 1114 2150x1120x2220 250
40HQ 26 634 2150x1120x1170 616
30 730 2150x1130x1345


TPT Backsheet ERA 440W 445W 450W Monocrystalline PV Module 1


► Package: strong and long distance transportation package


► Place of loading: Basic Seaport, China


► Payment Terms: L/C,D/A,D/P,T/T


► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits


Our Certificates:


TPT Backsheet ERA 440W 445W 450W Monocrystalline PV Module 2

TPT Backsheet ERA 440W 445W 450W Monocrystalline PV Module 3
