120 Cell ERA All Black Mono Solar Panel With TPT Backsheet Solar System Components

Payment Terms : L/C, T/T Supply Ability : 1000 Watt/Watts
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Solar Panels

Detail Information

Cell Type: 60 / Monocrystalline Silicon Size: 1665x1002x35mm
Weight: 19kg Backsheet (color): TPT In White
Company Certificate: ISO9001,ISO14001,ISO18001 Front Cover (material / Thickness): Low-iron Tempered Glass / 3.2mm
Cell (quantity / Material / Dimensions): 72 / Monocrystalline Silicon / 158.75x158.75mm Frame (material / Color): Aluminum Hollow-chamber Frame On Each Side Anodized Aluminum Alloy / Silver
Cables & Plug Connectors (protection Degree): 2x900mm / 4mm 2 & MC4 Compatible Payment Terms: L/C, T/T
High Light:

120 Cell ERA Mono Solar Panel

,

TPT Backsheet Mono Solar Panel

,

TPT Backsheet ERA Solar Panel

Product Description



ERA 120-Cell Series 315W-335W All Black Mono Solar Panel



We have paced the whole nation in the field of PV industry, not only on its product lines, but also upon its innovation.



We serves global customers with high-quality products and professional services. The modules can be installed on residential and commercial rooftops, ground-mounted power plants, as floating arrays, and much more.



Other than our competitive prices for pv modules and related solar energy products, we also offer the most comprehensive and accessible customer support for you.



Specifications:



Module type: ESPHSC 315M 320M 325M 330M 335M
Maximum Power(Wp) 315W 320W 325W 330W 335W
Open circuit Voltage(Voc) 41.95V 41.24V 41.44V 41.66V 41.88V
Short circuit Current(Isc) 9.8A 9.88A 9.96A 10.04A 10.12A
Maximum Power Voltage(Vm) 33.41V 33.68V 33.93V 34.17V 34.4V
Maximum Power Current(Im) 9.43A 9.51A 9.58A 9.66A 9.74A
Module efficiency 18.88% 19.18% 19.48% 19.78% 20.08%
Maximum Series Fuse 15A
Watts positive tolerance 0~+3%
Number of Diode 3
Standard Test Conditions 1000W/M²,25°C,AM1.5
Maximum System Voltage 1000V/DC
Temperature-Coefficient Isc +0.08558%/°C
Temperature-Coefficient Voc -0.29506%/°C
Temperature-Coefficient Pmpp -0.38001%/°C
Normal Operating Cell Temperature -40°C...+85°C
Load Capacity for the cover of the module (glass) 5400Pa(IEC61215)(snow)
Load Capacity for the front & back of the module 2400Pa(IEC61215)(wind)
Product Certificate TUV(IEC 61215,IEC 61730),CE,
ROHS,PID Resisitant,INMETRO
Company Certificate ISO9001,ISO14001,ISO18001


Key Features:



► 5 Busbar Solar Cell
5 busbar solar cell adopts new technology to improve the efficiency of
modules , offers a better aesthetic appearance, making it perfect for
rooftop installation.



► High Power Output
Higher module output up to 335W with Passivated Emmiter Rear Contact
(PERC)technology.



► Low-light Performance
Advanced glass and surface texturing allow for excellent performance in
low-light environments.



► Reliabale Warranty
12 years' product warranty.
Power warranty of 90% up to 12 years and 80% up to 25 years.



Advantages of Solar Energy:



1. Solar energy is kind of universal, decentralized and no -polluting energy.



2. Solar energy is the energy of the sun, which reaches earth in the form of short wave radiation visible light and near ultraviolet light.



3. Solar energy helps considerably in maintaining the ecological balance through the process of photosynthesis and green house effect.



4. Solar energy is bound to achieve great economic importance in future because of depletion trend of convention energy sources.

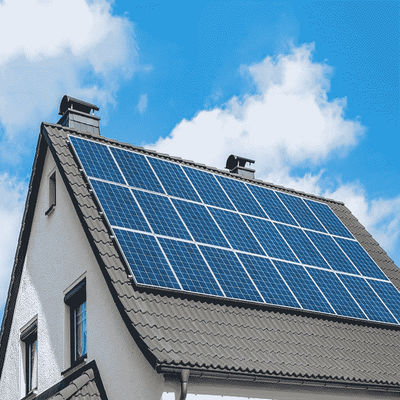

Project Reference:



120 Cell ERA All Black Mono Solar Panel With TPT Backsheet Solar System Components 0



Packaging and delivery:



Container Size Units/Pallet(PCS) Weight/Pallet(KG) Pallet Measurment(mm) Units/Container (PCS)
20GP 30 590 1700x1120x1120 360
40HQ 30 590 1710x1120x1135 938
37 686 1710x1120x1400



120 Cell ERA All Black Mono Solar Panel With TPT Backsheet Solar System Components 1



► Package: strong and long distance transportation package



► Place of loading: Basic Seaport, China



► Payment Terms: L/C,D/A,D/P,T/T



► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits



Our Certificates:



120 Cell ERA All Black Mono Solar Panel With TPT Backsheet Solar System Components 2

120 Cell ERA All Black Mono Solar Panel With TPT Backsheet Solar System Components 3
