ERA 380 385 390 395 400W 72 Cell Mono Photovoltaic Solar Panels

Payment Terms : L/C, T/T Supply Ability : 1000 Watt/Watts
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: Solar Panels

Detail Information

Size: 1979x1002x40mm Weight: 22.5 Kg
Backsheet (color): TPT In White Company Certificate: ISO9001,ISO14001,ISO18001
Front Cover (material / Thickness): Low-iron Tempered Glass / 3.2mm Cell (quantity / Material / Dimensions): 72 / Monocrystalline Silicon / 158.75x158.75mm
Frame (material / Color): Aluminum Hollow-chamber Frame On Each Side Anodized Aluminum Alloy / Silver Cables & Plug Connectors (protection Degree): 2x900mm / 4mm 2 & MC4 Compatible
Payment Terms: L/C, T/T
High Light:

ERA Mono Photovoltaic Solar Panels


400W Photovoltaic Solar Panels


ERA 380W Mono PV Solar Panels

Product Description

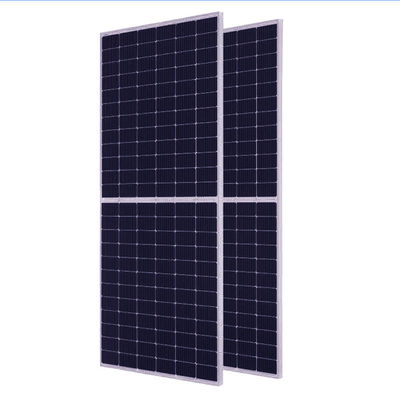

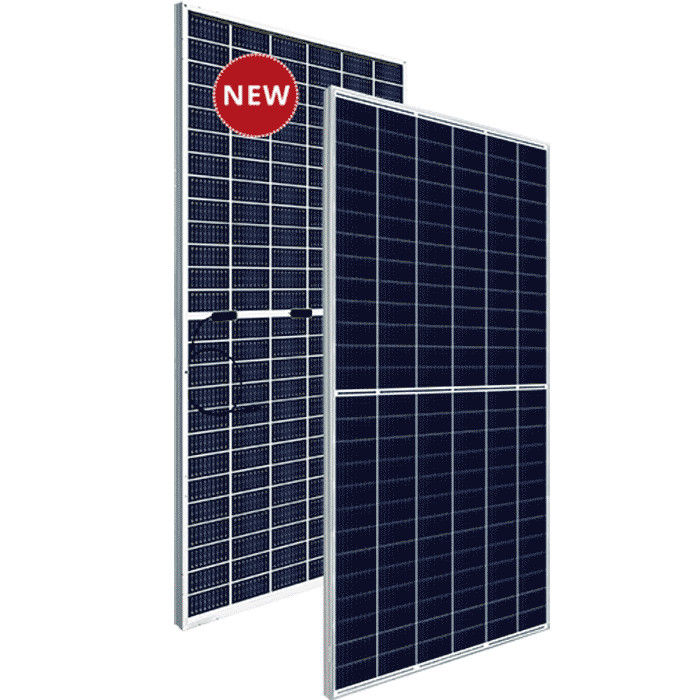

ERA 380W-400W 72 Cell Series Mono Solar Panel


We have paced the whole nation in the field of PV industry, not only on its product lines, but also upon its innovation.


We serves global customers with high-quality products and professional services. The modules can be installed on residential and commercial rooftops, ground-mounted power plants, as floating arrays, and much more.


Other than our competitive prices for pv modules and related solar energy products, we also offer the most comprehensive and accessible customer support for you.




Module type: ESPHSC 380W 385W 390W 395W 400W
Maximum Power(Wp) 380W 385W 390W 395W 400W
Open circuit Voltage(Voc) 48.9V 49.1V 49.3V 49.5V 49.8V
Short circuit Current(Isc) 9.75A 9.92A 10.12A 10.23A 10.36A
Maximum Power Voltage(Vm) 40.5V 40.8V 41.1V 41.4V 41.7V
Maximum Power Current(Im) 9.39A 9.44A 9.49A 9.55A 9.60A
Module efficiency 19.16% 19.42% 19.67% 19.92% 20.17%
Maximum Series Fuse 15A
Watts positive tolerance 0~+3%
Number of Diode 3
Standard Test Conditions 1000W/M²,25°C,AM1.5
Maximum System Voltage 1000V/DC
Temperature-Coefficient Isc +0.08558%/°C
Temperature-Coefficient Voc +0.29506%/°C
Temperature-Coefficient Pmpp -0.38001%/°C
Normal Operating Cell Temperature -40°C...+85°C
Load Capacity for the cover of the module (glass) 5400Pa(IEC61215)(snow)
Load Capacity for the front & back of the module 2400Pa(IEC61215)(wind)
Product Certificate TUV(IEC 61215,IEC 61730),CE,
Company Certificate ISO9001,ISO14001,ISO18001


Key Features:


► 5 Busbar Solar Cell:
5 busbar solar cell adopts new technology to improve the efficiency of
modules , offers a better aesthetic appearance, making it perfect for
rooftop installation


► Higher Module Conversion Efficiency:

Higher module output up to 400W with module efficiency up to 20.31%


► Low-light Performance:

Advanced glass and surface texturing allow for excellent performance in low-light environments


Advantages of Solar Energy:


1. Solar energy is kind of universal, decentralized and no -polluting energy.


2. Solar energy is the energy of the sun, which reaches earth in the form of short wave radiation visible light and near ultraviolet light.


3. Solar energy helps considerably in maintaining the ecological balance through the process of photosynthesis and green house effect.


4. Solar energy is bound to achieve great economic importance in future because of depletion trend of convention energy sources.

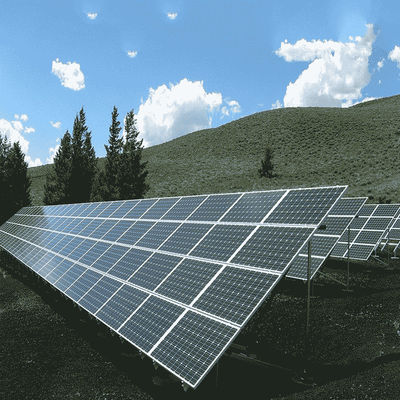

Project Reference:


ERA 380 385 390 395 400W 72 Cell Mono Photovoltaic Solar Panels 0


Packaging and delivery:


Container Size Units/Pallet(PCS) Weight/Pallet(KG) Pallet Measurment(mm) Units/Container (PCS)
20GP 26 615 2010x1120x1135 260
40HQ 26 615 2010x1120x1135 638
32 730 2010x1120x1400


ERA 380 385 390 395 400W 72 Cell Mono Photovoltaic Solar Panels 1


► Package: strong and long distance transportation package


► Place of loading: Basic Seaport, China


► Payment Terms: L/C,D/A,D/P,T/T


► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits


Our Certificates:


ERA 380 385 390 395 400W 72 Cell Mono Photovoltaic Solar Panels 2

ERA 380 385 390 395 400W 72 Cell Mono Photovoltaic Solar Panels 3
