10-12um Aluminum Slotted Rail Extruded Roof Mounting Stucture Silver Anodizing 6005-T5 Solar Support Brackets
Contact Person : Zhang
Minimum Order Quantity : | 100pcs | Price : | USD0.19-0.22/W |
---|---|---|---|
Packaging Details : | Packing unit: 31pcs/box,number of modules per 40‘HQ container :930pcs | Payment Terms : | L/C, T/T |
Supply Ability : | 1000 Watt/Watts |
Place of Origin: | CHINA | Brand Name: | TIANFON |
---|---|---|---|
Certification: | TUV,SGS,CE, ISO 9001,ISO 14001,OHSAS 18001 | Model Number: | Solar Panels |
Detail Information |
|||

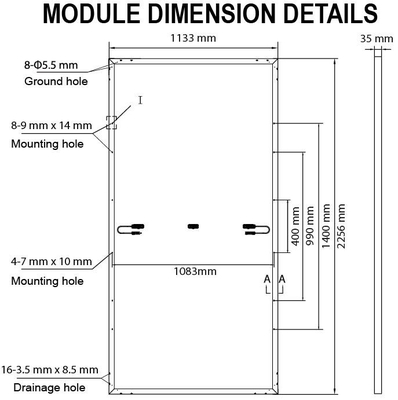

Outer Dimensions: | 2256 X 1133 X 35 Mm | Weight: | 27.2 Kg |
---|---|---|---|
Company Certificate: | TUV,SGS,CE, ISO 9001,ISO 14001,OHSAS 18001 | Front Glass Thickness: | 3.2mm |
Cell (quantity / Material): | 144 / Monocrystalline Silicon | Frame Technology: | Aluminum, Silver Anodized |
Cable Length(IEC/UL): | Portrait:300mm, Landscape: 1400mm | Cable Diameter(IEC/UL): | 4mm2/12AWG |
Maxmum Mechanical Test Load: | 5400pa(front)/2400pa(back) | Connector Type (IEC/UL): | HCB40 / MC4-EVO2 ( Optional) |
Payment Terms: | L/C, T/T | ||
High Light: | Monocrystalline Silicon Solar Panels 530WP,Monocrystalline Silicon Solar Panels 535WP,540WP Photovoltaic Solar Panels |
Product Description

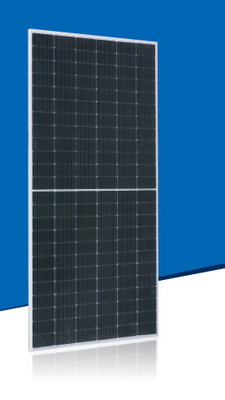

Factory supplies CHNT 530WP 535WP 540WP 545WP 550WP monocrystalline silicon high efficiency solar panels
530W-550w monocrystalline PV module, CHSM72M-HC182 series, it has the following key features:
► OUTPUT POSITIVE TOLERANCE:
Guaranteed 0~+5W positive tolerance to ensure power output.
► INNOVATIONAL HALF-CUT&MULTI-BUSBAR TECHNOLOGY:
Lower risk of microcrack, better shading tolerance, higher reliability.
► NON-DESTRUCTIVE CUTTING:
Higher bending strength of cells and mechanical properties of modules.
►HIGH CUSTOMER VALUE:
Up to 25% additional power gain , lower BOS cost and LCOE.
► SUPER PERC+ CELL TECHNOLOGY:
Higher module power and module efficiency, lower power degradation.
► ANTI-PID:
Excellent anti-PID performance.
We are offer you competitive price on PV modules, also give you good warranty, 12 years warranty for materials and processing, 25years wattanty for extra linear power output.
And about specification, you can reference below form:

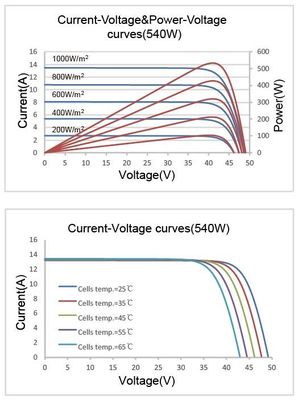

Specification:
STC rated output (P mpp /Wp)
|
530 Wp | 535 Wp | 540 Wp | 545 Wp | 550 Wp |
Rated voltage (V mpp /V) at STC
|
41.43V | 41.60V | 41.76V | 41.93V | 42.10V |
Rated current (l mpp /A) at STC
|
12.79A | 12.86A | 12.93A | 13.00A | 13.06A |
Open circuit voltage (V oc /V) at STC
|
49.30V | 49.50V | 49.70V | 49.90V | 50.10V |
Short circuit current (I sc /A) at STC
|
13.52A | 13.61A | 13.72A | 13.81A | 13.90A |
Module efficiency
|
20.7% | 20.9% | 21.1% | 21.3% | 21.5% |
Rated output (P mpp /Wp) at NMOT
|
396.1 Wp | 399.8 Wp | 403.5 Wp | 407.3 Wp | 411.0 Wp |
Rated voltage (V mpp /V) at NMOT
|
38.61 V | 38.77 V | 38.92 V | 39.08 V | 39.24V |
Rated current (l mpp /A) at NMOT
|
10.26 A | 10.31 A | 10.37 A | 10.42 A | 10.48 A |
Open circuit voltage (V oc /V) at NMOT
|
46.59 V | 46.78 V | 46.97 V | 47.16 V | 47.34 V |
Short circuit current (I sc /A) at NMOT
|
10.97 A | 11.04 A | 11.13 A | 11.20 A | 11.27 A |
Temperature coefficient (P mpp )
|
- 0.35%/° C | ||||
Temperature coefficient (I sc )
|
+ 0.045%/° C | ||||
Temperature coefficient (V oc )
|
- 0.27%/° C | ||||
Nominal module operating temperature (NMOT)
|
41±2° C | ||||
Maximum system voltage (IEC/UL)
|
1500V DC | ||||
Number of diodes
|
3 | ||||
Junction box IP rating
|
IP 68 | ||||
Maximum series fuse rating
|
25 A |
Advantages of Solar Energy:
1. Solar energy has the advantages of universality, harmlessness, large reserves and long-term use.
2. Solar energy is a kind of clean energy, does not cause any harm to the environment, use the solar energy is an inevitable trend in current.
3. The application of solar energy is not limited by mining, transportation and storage conditions.
4. Solar engerge is the largest potential energy which can be developed in the world, the rediate energy reach the earth's surface is euqal to 130 trillion tons standard coal every year
Project Reference:
Packaging and delivery:
Module Weight | 27.2 kg |
Packing unit | 31 pcs / box |
Weight of packing unit (for 17.5M flat car) | 882 kg |
Number of modules per 17.5M flat car | 930 pcs |
► Package: strong and long distance transportation package
► Place of loading: Tianjin or Shanghai port, China
► Payment Terms: L/C,D/A,D/P,T/T
► Delivery Detail: Delivery time:10--25 days after receiving customer’s deposits
