10-12um Aluminum Slotted Rail Extruded Roof Mounting Stucture Silver Anodizing 6005-T5 Solar Support Brackets
Contact Person : Zhang
Minimum Order Quantity : | 100pcs | Price : | 0.285/W-0.292/W |
---|---|---|---|
Packaging Details : | Packing unit: 36pcs/box,number of modules per L 17.5m flat car :1440pcs | Payment Terms : | L/C, T/T |
Supply Ability : | 1000 Watt/Watts |
Place of Origin: | CHINA | Brand Name: | TIANFON |
---|---|---|---|
Certification: | TUV,SGS,CE, ISO 9001,ISO 14001,OHSAS 18001 | Model Number: | Solar Panels |
Detail Information |
|||
Outer Dimensions: | 1708 X 1133 X 30 Mm | Weight: | 21.5 Kg |
---|---|---|---|
Company Certificate: | ISO 9001,ISO 14001,OHSAS 18001,TUV,SGS,CE, | Front Glass Thickness: | 3.2mm |
Cell (quantity / Material): | 108 / Monocrystalline Silicon | Frame Technology: | Aluminum, Silver Anodized |
Cable Length(IEC/UL): | Portrait:300mm, Landscape: 1200mm | Cable Diameter(IEC/UL): | 4mm2/12AWG |
Maxmum Mechanical Test Load: | 5400pa(front)/2400pa(back) | Connector Type (IEC/UL): | HCB40 / MC4-EVO2 ( Optional) |
Payment Terms: | L/C, T/T | Fireproofing Grade(IEC/UL): | Class C (IEC) Or Type 4 (UL) |
High Light: | 395WP Solar Energy Panels,390WP Solar Energy Panels,CHNT Monocrystalline Silicon Solar Panels |
Product Description

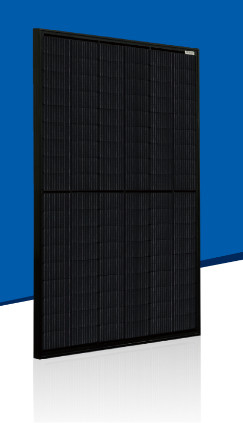

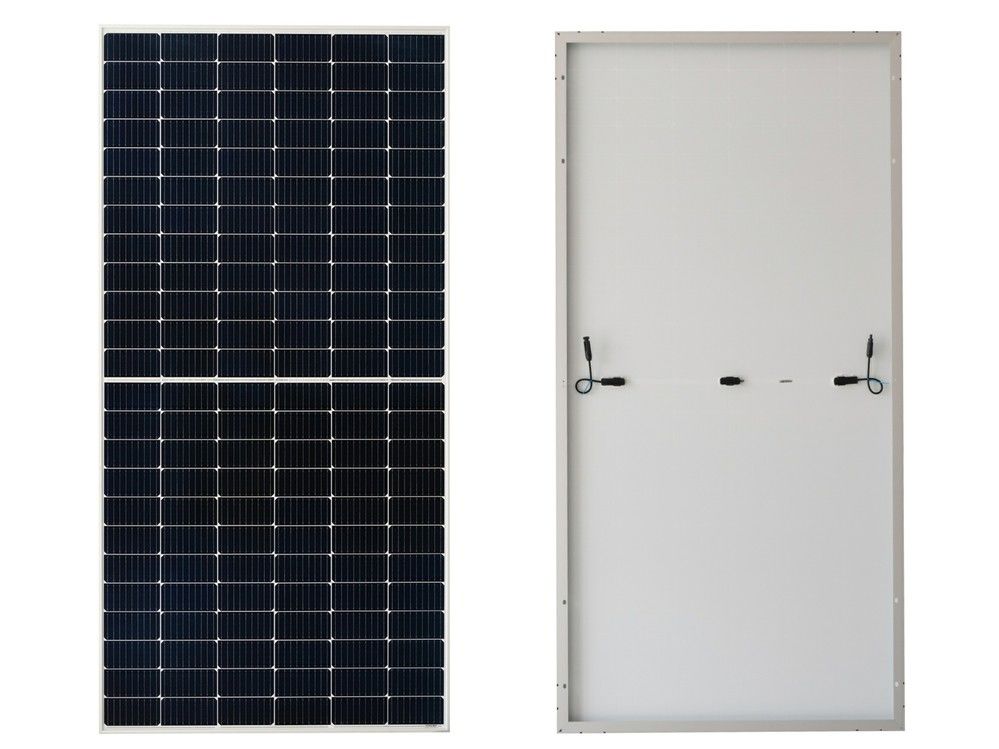

Factory supplies CHNT 390WP 395WP 400WP 405WP monocrystalline silicon solar energy panels
390W-405W monocrystalline PV module, CHSM54M(BL)-HC series (182), it has the following key features:
► OUTPUT POSITIVE TOLERANCE:
Guaranteed 0~+5W positive tolerance to ensure power output.
► INNOVATIONAL HALF-CUT TECHNOLOGY:
Lower shadow impact, higher reliability.
► NON-DESTRUCTIVE CUTTING:
Higher bending strength of cells and mechanical properties of modules.
►BEAUTIFUL DESIGN
All-black componets that blend more aesthetically into the building, realize the integration of architecture.
►REVOLUTIONARY MULTI-BUSBAR TECHNOLOGY
Higher light utilization rate, lower hidden crack risk.
► ANTI-PID:
Excellent anti-PID performance.
We are offer you competitive price on solar plates, also keep good warranty, 12 years warranty for materials and processing, 25years wattanty for extra linear power output.
And please reference below specification about the module:

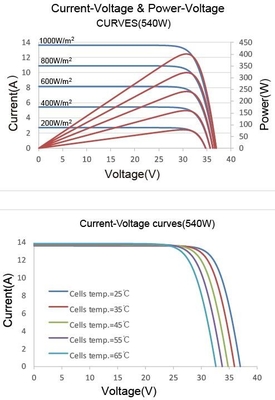

Specification:
STC rated output (P mpp /Wp) |
390 Wp | 395 Wp | 400 Wp | 405 Wp |
Rated voltage (V mpp /V) at STC |
30.76V | 30.92V | 31.09V | 31.26V |
Rated current (l mpp /A) at STC |
12.68A | 12.77A | 12.86A | 12.96A |
Open circuit voltage (V oc /V) at STC |
36.60V | 36.80V | 37.00V | 37.20V |
Short circuit current (I sc /A) at STC |
13.40A | 13.52A | 13.65A | 13.76A |
Module efficiency |
20.2% | 20.4% | 20.7% | 20.9% |
Rated output (P mpp /Wp) at NMOT |
291.5 Wp | 295.2 Wp | 298.9 Wp | 302.7 Wp |
Rated voltage (V mpp /V) at NMOT |
28.66 V | 28.82 V | 28.98 V | 29.13V |
Rated current (l mpp /A) at NMOT |
10.17A | 10.24 A | 10.32 A | 10.39 A |
Open circuit voltage (V oc /V) at NMOT |
34.59 V | 34.78 V | 34.97 V | 35.15 V |
Short circuit current (I sc /A) at NMOT |
10.87 A | 10.97 A | 11.107 A | 11.17 A |
Temperature coefficient (P mpp |
- 0.35%/° C | |||
Temperature coefficient (I sc ) |
+ 0.045%/° C | |||
Temperature coefficient (V oc ) |
- 0.27%/° C | |||
Nominal module operating temperature (NMOT) |
41±2° C | |||
Maximum system voltage (IEC/UL) |
1000V DC | |||
Number of diodes |
3 | |||
Junction box IP rating |
IP 68 | |||
Maximum series fuse rating |
25 A |
Advantages of Solar Energy:
(1) Universal: the sun shines on the earth, no geographical restrictions, whether land or sea, whether mountains or islands... can be directly exploited and utilized, and do not need mining and transportation.
(2) Harmless: the development and utilization of solar energy will not pollute the environment, it is one of the cleanest energy, in today's increasingly serious environmental pollution, this is extremely valuable.
(3) Huge: the amount of solar radiation reaching the earth's surface every year is equivalent to about 13 trillion tons of coal, the largest amount of energy that can be exploited in the world today.
(4) Long: according to the current rate of nuclear energy generated by the sun, the storage of hydrogen is enough to maintain tens of billions of years, and the life of the Earth is also about billions of years. In this sense, it can be said that the energy of the sun is inexhaustible.

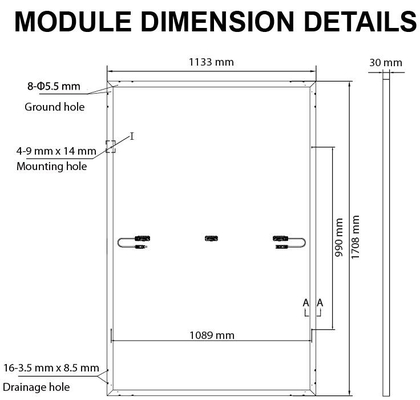

Mechanical specifications:
Outer dimensions (L x W x H) | 1708 x 1133 x 30 mm |
Frame technology | Black anodized aluminum profile |
Front glass thickness | 3.2 mm |
Cable length (IEC/UL) | Portrait: 300 mm Landscape : 1200 mm |
Cable diameter (IEC/UL) | 4 mm² / 12 AWG |
① Maximum mechanical test load | 5400 Pa ( ftont ) / 2400 Pa ( back ) |
Connector type (IEC/UL) | HCB40 / MC4 ( option ) |
Fire rating(IEC/UL) | Class C (IEC) or Type 4 (UL) |
Project Reference:
Packaging and delivery:
Module Weight | 21.5 kg |
Packing unit | 36 pcs / box |
Weight of packing unit (for 40‘HQ container) | 813 kg |
Number of modules per 40‘HQ container | 1440pcs |
► Package: strong and long distance transportation package
► Place of loading: Tianjin or Shanghai port, China
► Payment Terms: L/C,D/A,D/P,T/T
► Delivery Detail: Delivery time:10--25 days after receiving customer’s deposits
Our Certificates:
