Galvanized anodized Q235B Q345B solar panel support brackets PV mounting system solar bracket

Galvanized anodized Q235B Q345B solar panel support brackets PV mounting system solar bracket

Brand Name:	TIANFON
Model Number:	TF-G001
MOQ:	1000 Watt/Watts
Price:	US $0.05-0.18 / Watts
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000 Watt/Watts per Week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

SGS,ISO 9001,ISO 14001,OHSAS 18000

Application:

Private, Government And Enterprise’s Parking Lot

Surface Treatment:

Galvanized,Anodized

Thickness:

0.5mm-15mm

Type:

On/off Grid

Duration:

25 Years

Warranty:

10 Years

Installation Angle:

5~45°

Wind Load:

≤60m/s

Snow Load:

≤1.4KN/m²

Material:

Q235B, Q345B, Component Aluminum Alloy & Stainless Steel Etc., Customized Upon Requirement.

Port:

Tianjin, Shanghai, Qingdao

Payment Terms:

L/C,D/A,D/P,T/T

Packaging Details:

1.Carton box,wooden pallet 2.Customized packing

Supply Ability:

100000 Watt/Watts per Week

Highlight:

Q345B Solar Panel Support Brackets

Q235B Solar Panel Support Brackets

Anodized Solar PV Mounting Systems

Product Description

Factory supply Q235B, Q345B solar panel support brackets solar pv mounting systems

1. Technical Parameters :

Item	Parameter
Application	Mountain, Plain, Highland, Desert
Installation Angle	Fixed degree,5-45°
Wind Load	≤60m/s
Snow Load	≤1.4KN/m²
Applicable Module	Framed or Frameless
Material	Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement.
Module Orientation	portrait or landscape
Module type	Any type of PV moduels
Surface Treatment	Hot Dip Galvanizing & Anodized
Warranty	10 years warranty and 25 years duration

2. Detailed Introduction:

Galvanized anodized Q235B Q345B solar panel support brackets PV mounting system solar bracket 0

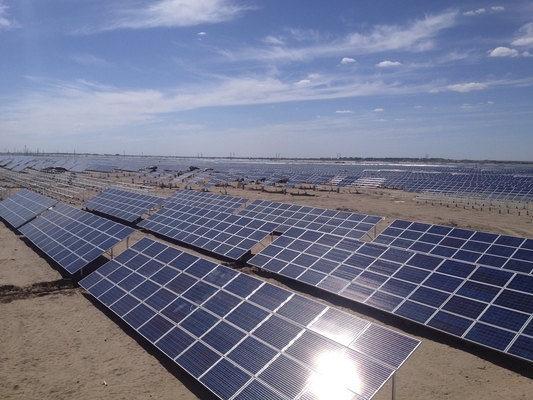

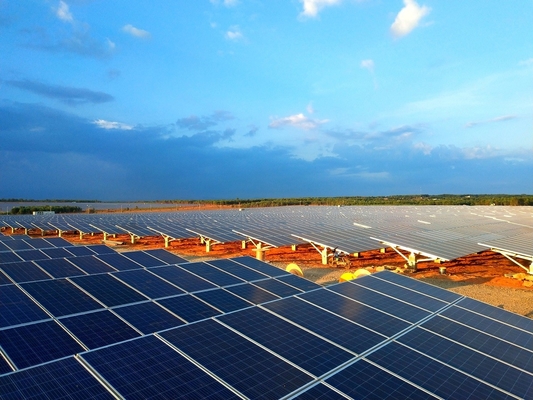

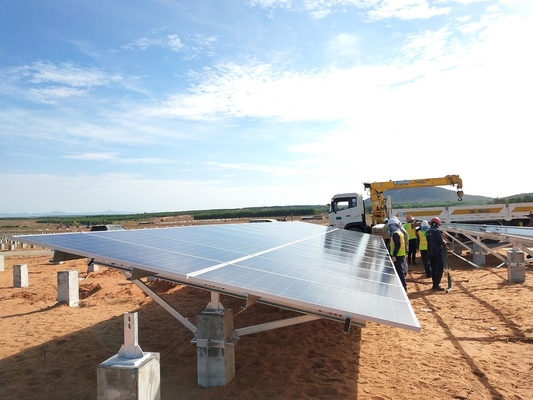

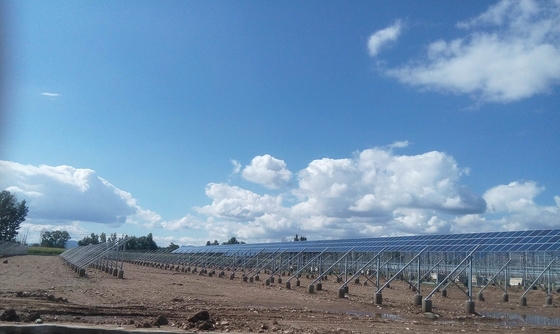

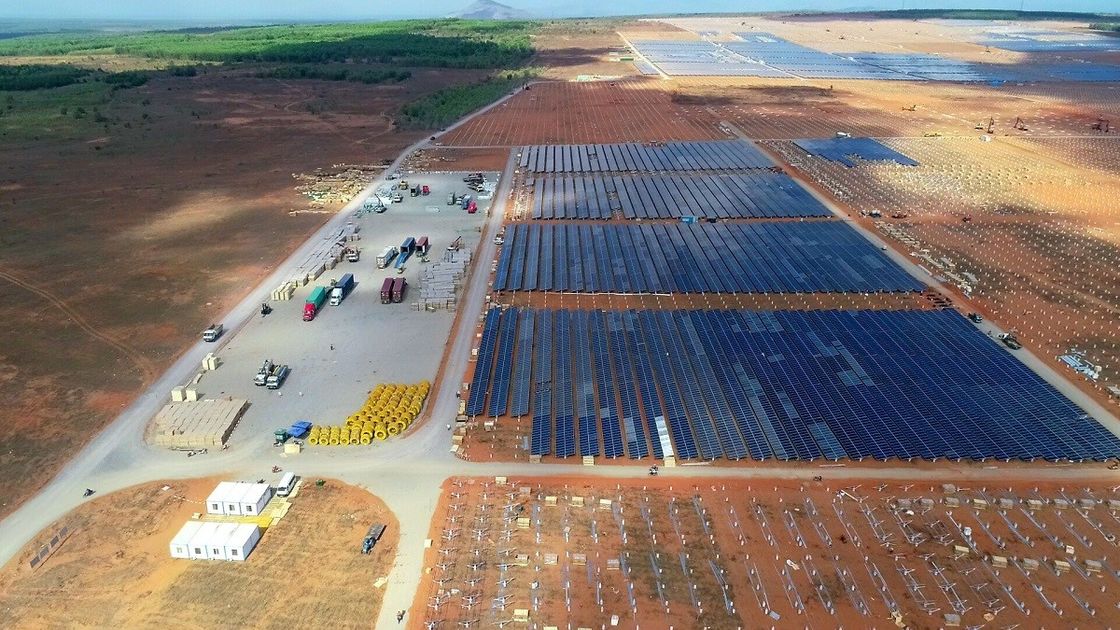

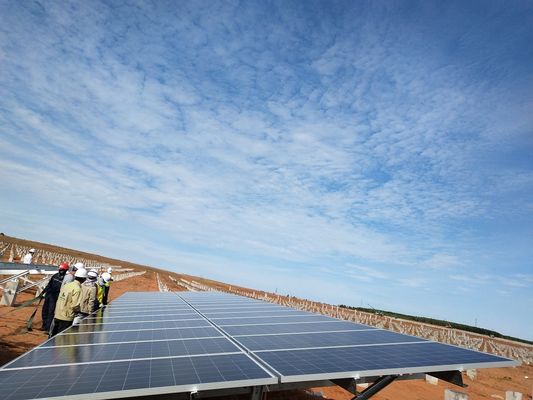

3. Project Display:

Galvanized anodized Q235B Q345B solar panel support brackets PV mounting system solar bracket 1

4. Company Introduction:

5. Main product:

Galvanized anodized Q235B Q345B solar panel support brackets PV mounting system solar bracket 8

6. Certificates:

7. Packing:

8. Necessary information:

No.	Item	Remarks
1	Location, Country of the Projects
2	What's Total Capacity of solar Project ?
3	Max Wind Speed m/s
4	Snow Load (KN/㎡)
5	which type landform the ground is ?
	A. Offshore Sea and island, coast, lake shore and desert area	YES / NO
	B. Fields, villages, jungles, hills and sparse houses and suburbs	YES / NO
	C. Urban areas with dense clusters of buildings	YES / NO
	D. Urban areas with dense buildings and high houses	YES / NO
6	Foundation Forms
	A. PHC Pile (pretensioned spun high-strength concrete pile)	YES / NO
	B. Ramming Pile;	YES / NO
	C. Concrete;	YES / NO
	D. Bored Pile;	YES / NO
	E. Others
7	Layout of Solar Panels
8	how many modules per array
9	Size of solar panels
10	Installation angle of solar panels
11	Panel Weight
12	Watts per Solar Panel
13	Requirements on Main Materials of Structure
14	Requirement on the lowest height between solar panels and ground	mm
15	How many arrays / units
16	other information
