SGS Open Field Solar Mounting Structure With concrete foundation solar bracket solar mounting system

Minimum Order Quantity : 5 set Price : USD50-80/set
Packaging Details : standard export packing,pallet and carton Delivery Time : 20-25 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 30MW/month
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18001 Model Number: Solar Panel Ground Mounting Systems

Detail Information

Name: Solar Panel Ground Mounting Systems Color: Customized
Application: Solar Plant Tilt Angle: Customized
Size: Customized Material: Galvanized Q235B,Q345B
High Light:

Open Field Solar Mounting Structure

,

SGS Solar Mounting Structure

,

Open Field Solar Mounting System

Product Description

 Open field Solar Mounting Structure Solar Bracket Aluminum Ground Mount By Designed Concrete Foundation



Short Description:

Our solar Ground Mounting System is made of galvanized steel, anodized aluminum alloy & stainless steel, with the characteristics of light weight, high strength and recyclable materials.


It is suitable for both small and large-scale solar plants .with a flexible connection, it can be installed onto the concrete base, and also the earth ground, even the slope can also be workable.


Solar Ground Mounting System is applicable to flat concrete roof and a large array PV system in open terrain. This system is designed to engineer with a minimum amount of installed footing at greatly reduce labor. The special tilt-in module, the clamp, and the system can be modified to be installed that make the installation easy and quick. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.


Product Feature:



Type: Ground solar mounting


Module Orientation: Portrait, landscape


Treatment: Anodized, Galvanized


Applicable Module: Framed, frameless


Array Layout: According to the actual situation


Color: Natural or Customized


Product Parameter :


 Structural materials  Aluminum Alloy, Hot-Galvanized Steel, Stainless Steel
 Install Angle  0-60 degree
 Ground Clearance  ≥0.15m
 Max Building Height  20m
 Wind load  130mph(60m/s)
 Snow Load  30psf(1.4kN/m2)
 Packing  Strong and long distance transportation package
 Duration  More than 25 years


Benifits:

► Professional customized design

Products were designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.


► Easy installation

The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.


► Flexible and Stable
Its fully adjustable design, maximumly absorbs the size error caused by the construction, and guarantees the stability and beauty of PV matrix structure.


► Safety
The racking systems can stand up to the extreme weather condition. The main support components have also been tested to guarantee its structure and load-carrying capacity.


► Widely application
The mounting system suitable for various kinds of project, including residential project, commercial project, utility project and so on.

Packaging & Shipping:



► Payment Terms: L/C,D/A,D/P,T/T

► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits

► Package: strong and long distance transportation package

► Port: Tianjin, Shanghai, Qingdao

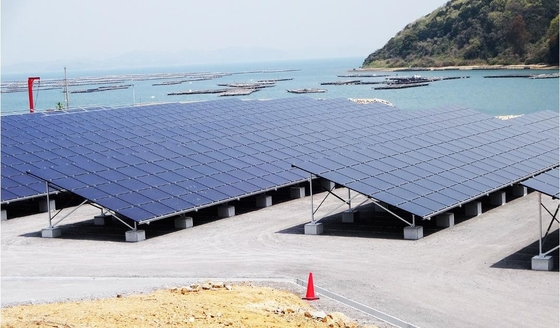

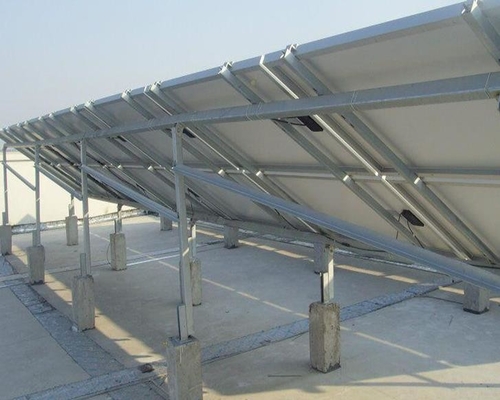

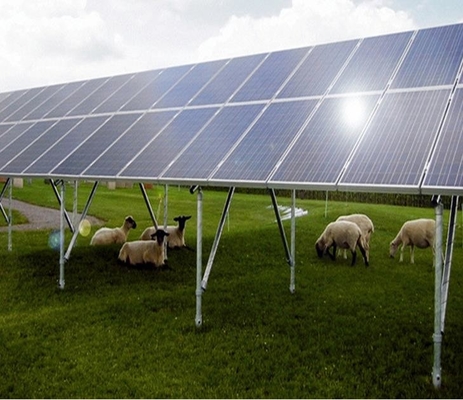

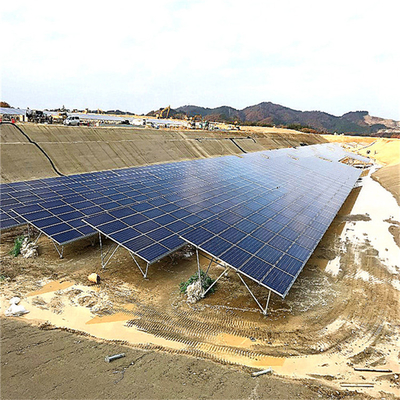

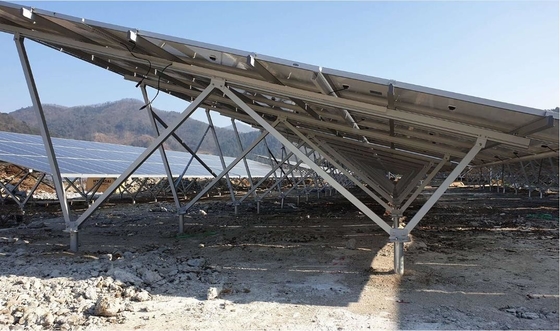

SGS Open Field Solar Mounting Structure With concrete foundation solar bracket solar mounting system 0SGS Open Field Solar Mounting Structure With concrete foundation solar bracket solar mounting system 1SGS Open Field Solar Mounting Structure With concrete foundation solar bracket solar mounting system 2SGS Open Field Solar Mounting Structure With concrete foundation solar bracket solar mounting system 3SGS Open Field Solar Mounting Structure With concrete foundation solar bracket solar mounting system 4SGS Open Field Solar Mounting Structure With concrete foundation solar bracket solar mounting system 5
