Framed Or Frameless Panel Safety Adjustable Mounting System for Ground PV Panel Support Installation
Contact Person : Zhang
| Minimum Order Quantity : | 5 set | Price : | USD50-80/set |
|---|---|---|---|
| Packaging Details : | standard export packing,pallet and carton | Delivery Time : | 20-25 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 30MW/month |
| Place of Origin: | CHINA | Brand Name: | TIANFON |
|---|---|---|---|
| Certification: | SGS,ISO 9001,ISO 14001,OHSAS 18001 | Model Number: | Solar Panel Ground Mounting Systems |
|
Detail Information |
|||
| Name: | Solar Panel Ground Mounting Systems | Color: | Customized |
|---|---|---|---|
| Application: | Solar Plant | Tilt Angle: | Customized |
| Size: | Customized | Material: | Galvanized Q235B,Q345B |
| High Light: | Q345B Solar Ground Mounting System,Q235B Solar Ground Mounting System,Q345B Solar Panel Mounting Bracket |
||
Product Description
PV Ground Support Structure Solar Panel Bracket Aluminum Ground Mounting System
Short Description:
Type: Ground solar mounting
Color: Natural or Customized
Treatment: Anodized, Galvanized
Applicable Module: Framed, frameless
Module Orientation: Portrait, landscape
Array Layout: According to the actual situation
Product Feature:
Our solar Ground Mounting System is made by galvanized steel, anodized aluminum alloy & stainless steel which featured with lightweight, high strength and recyclable material.
It is suitable for both small and large-scale solar plants .with a flexible connection, it can be installed onto the concrete base, and also the earth ground, even the slope can also be workable.
Solar Ground Mounting System is applicable to flat concrete roof and a large array PV system in open terrain. This system is designed to engineer with a minimum amount of installed footing at greatly reduce labor. The special tilt-in module, the clamp, and the system can be modified to be installed that make the installation easy and quick. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.
Product Parameter :
| Structural materials | Aluminum Alloy, Hot-Galvanized Steel, Stainless Steel |
| Install Angle | 0-60 degree |
| Ground Clearance | ≥0.15m |
| Max Building Height | 20m |
| Wind load | 130mph(60m/s) |
| Snow Load | 30psf(1.4kN/m2) |
| Packing | Strong and long distance transportation package |
| Duration | More than 25 years |
Benifits:
► Professional customized design
Products were designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.
► Easy installation
The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.
► Flexible and Stable
Its fully adjustable design, maximumly absorbs the size error caused by the construction, and guarantees the stability and beauty of PV matrix structure .
► Safety
The racking systems can stand up to the extreme weather condition. The main support components have also been tested to guarantee its structure and load-carrying capacity.
► Widely application
The mounting system suitable for various kinds of project, including residential project, commercial project, utility project and so on.

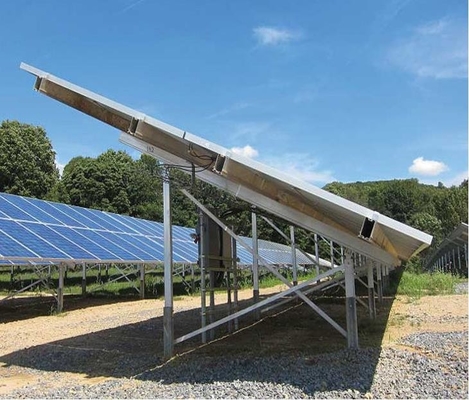

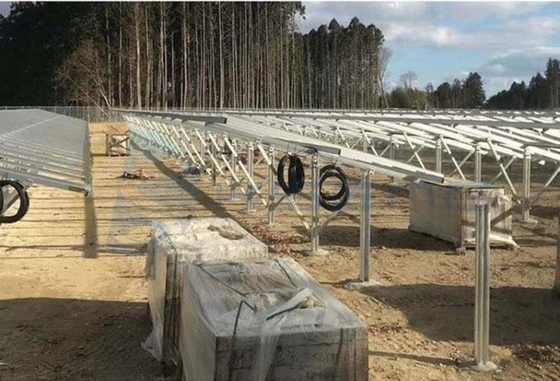

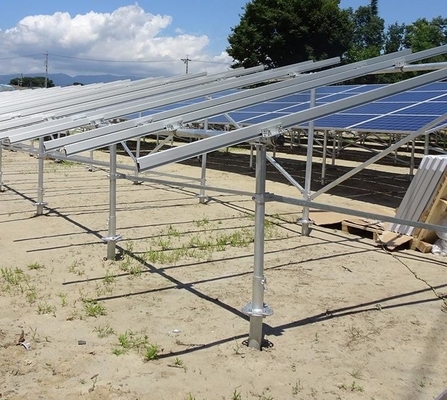

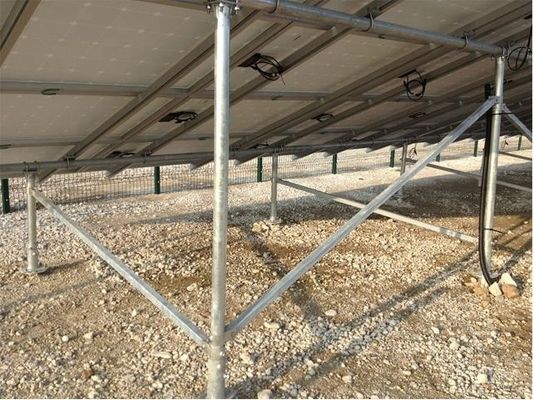

Application:
