Car Park Solar Panel Ground Mounting System Full Installation anodized carport solar bracket
Contact Person : Hanna
Phone Number : 86-18702773499
WhatsApp : +8618702773499
|Minimum Order Quantity :||1000 Watt/Watts||Price :||US $0.05-0.18 / Watts|
|Packaging Details :||1.Carton box,wooden pallet 2.Customized packing||Delivery Time :||within 15-25 work days after receipt deposit|
|Payment Terms :||L/C, D/A, D/P, T/T, Western Union, MoneyGram||Supply Ability :||100000 Watt/Watts per Week|
|Place of Origin:||CHINA||Brand Name:||TIANFON|
|Certification:||SGS,ISO 9001,ISO 14001,OHSAS 18000,TUV,CE||Model Number:||TF-G007|
|Application:||Private, Government And Enterprise's Parking Lot||Surface Treatment:||Hot Dip Galvanizing And Anodized|
|Thickness:||0.5mm-15mm||Type:||On Grid System, Off Grid System|
|Duration:||25 Years||Warranty:||10 Years|
|Installation Angle:||5~45°||Wind Load:||≤60m/s|
|Snow Load:||≤1.4KN/m²||Material:||Q235B, Q345B, Component Aluminum Alloy & Stainless Steel Etc., Customized Upon Requirement.|
|Port:||Tianjin, Shanghai, Qingdao,ningbo, Xiamen||Payment Terms:||L/C,D/A,D/P,T/T|
|Delivery Detail:||Delivery Time:7--25 Days After Receiving Customer’s Deposits|
Terrace Solar Panel Mounting Bracket,
Ground Terrace Solar Panel Mounting Bracket,
Q345B Solar Panel Mounting Kit
1. Simple construction ground terrace mounting system solar panel mounting bracket
The Solar Mounting structure is used to fix the solar PV panels and provide support and inclination to the system.
Our ground solar mounting system can be used in desert, glass lands, gobi, ceramic, macadam, shallow sea beach(less than 5m), and other geological environments, the install quality doesn't affect by groundwater.
Depends on the field conditions we come up different foundation design, use the suitable racking post to provide high strength and withstand wind and snow loads and save the labor cost.
► The Tianfon mounting system compatible with most of the major framed and frameless PV modules on the market.
► Products were designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.
► The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.
► Reduced installatin times due to high pre-fabrication leve; MInimized assembly time and effort (up to 40%).
► The racking systems can withstand extreme weather condition. The main supporting components have also been tested to ensure their structure and bearing capacity.
► The mounting system suitable for various kinds of project, including residential project, commercial project, utility project and so on.
3. Technical Parameters :
|Application||Mountain, Plain, Highland, Desert|
|Installation Angle||Fixed degree,5-45°|
|Applicable Module||Framed or Frameless|
|Material||Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement.|
|Module Orientation||portrait or landscape|
|Module type||Any type of PV moduels|
|Surface Treatment||Hot Dip Galvanizing & Anodized|
|Warranty||10 years warranty and 25 years duration|

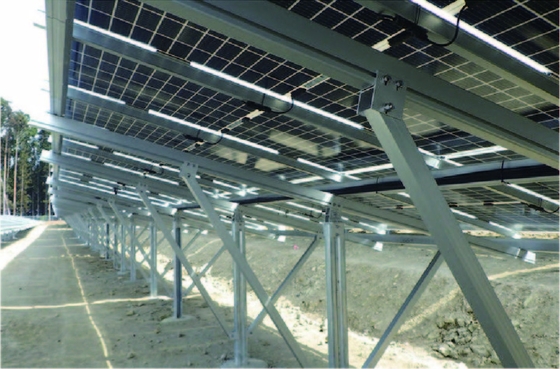

4. Detailed Introduction:

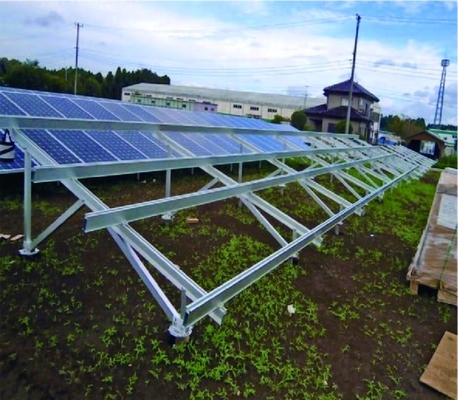

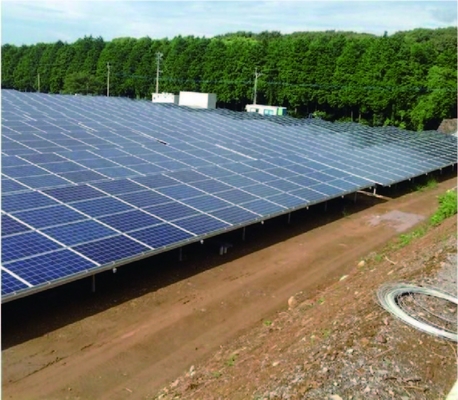

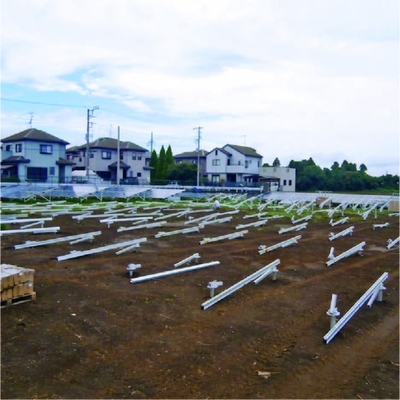

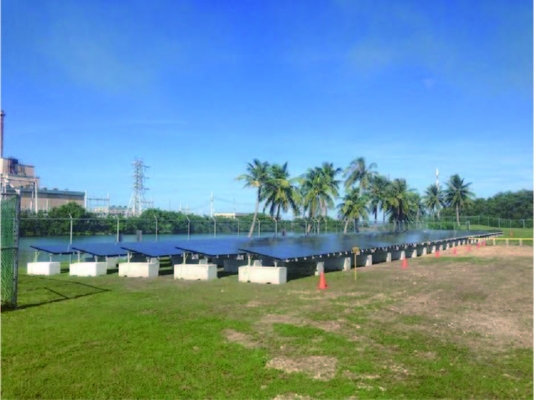

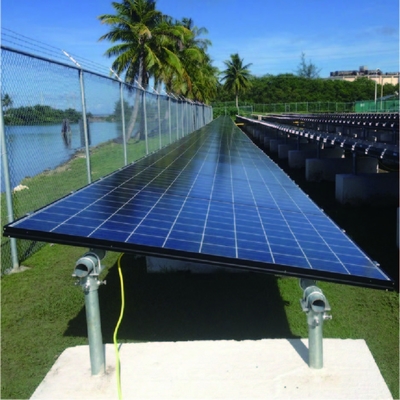

5. Project Display:
6. Company introduction:
7. Main products:
9.Packing and delivery:
► Place of loading: Basic Seaport, China
► Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface
► Payment Terms: L/C,D/A,D/P,T/T
► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits
10. Cooperate customers:
11. Projects Gallery:
12. Necessary information:
For the solution and quotation, we need some details as the following
|1||Location, Country of the Projects|
|2||What's Total Capacity of solar Project ?|
|3||Max Wind Speed m/s|
|4||Snow Load (KN/㎡)|
|5||which type landform the ground is ?|
|A. Offshore Sea and island, coast, lake shore and desert area||YES / NO|
|B. Fields, villages, jungles, hills and sparse houses and suburbs||YES / NO|
|C. Urban areas with dense clusters of buildings||YES / NO|
|D. Urban areas with dense buildings and high houses||YES / NO|
|A. PHC Pile (pretensioned spun high-strength concrete pile)||YES / NO|
|B. Ramming Pile;||YES / NO|
|C. Concrete;||YES / NO|
|D. Bored Pile;||YES / NO|
|7||Layout of Solar Panels|
|8||how many modules per array|
|9||Size of solar panels|
|10||Installation angle of solar panels|
|12||Watts per Solar Panel|
|13||Requirements on Main Materials of Structure|
|14||Requirement on the lowest height between solar panels and ground||mm|
|15||How many arrays / units|
