Framed Or Frameless Panel Safety Adjustable Mounting System for Ground PV Panel Support Installation
Contact Person : Zhang
| Minimum Order Quantity : | 1000 Watt/Watts | Price : | US $0.05-0.18 / Watts |
|---|---|---|---|
| Packaging Details : | 1.Carton box,wooden pallet 2.Customized packing | Delivery Time : | within 15-25 work days after receipt deposit |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 100000 Watt/Watts per Week |
| Place of Origin: | CHINA | Brand Name: | TIANFON |
|---|---|---|---|
| Certification: | SGS,ISO 9001,ISO 14001,OHSAS 18000,TUV,CE | Model Number: | TF-G011 |
|
Detail Information |
|||
| Application: | Private, Government And Enterprise's Parking Lot | Surface Treatment: | Hot Dip Galvanizing And Anodized |
|---|---|---|---|
| Thickness: | 0.5mm-15mm | Type: | On Grid System, Off Grid System |
| Duration: | 25 Years | Warranty: | 10 Years |
| Installation Angle: | 5~45° | Wind Load: | ≤60m/s |
| Snow Load: | ≤1.4KN/m² | Material: | Q235B, Q345B, Component Aluminum Alloy & Stainless Steel Etc., Customized Upon Requirement. |
| Port: | Tianjin, Shanghai, Qingdao,ningbo, Xiamen | Payment Terms: | L/C,D/A,D/P,T/T |
| Delivery Detail: | Delivery Time:7--25 Days After Receiving Customer’s Deposits | ||
| High Light: | Solar Power Plant Module Mounting Structure,Module Mounting Structure Brackets Kit,Pre Assembled Beam Ground Mounting System |
||
Product Description
1. solar power plant module mounting structure brackets kit ground mounting system
Description of Solar Panel Mounting Brackets
Solar Panel Mounting Brackets are made for photovoltaic ground systems which featured with light weight, high strength and recyclable material.
They can be mounted on concrete foundation or ground screws. Customized tilt angles meet complex requirements of construction site and use effectively energy of sun.
Pre-assembled beam saves labor time, reduces cost and makes installation quick.
2. Technical Parameters :
| Item | Parameter |
| Application | Mountain, Plain, Highland, Desert |
| Installation Angle | Fixed degree,5-45° |
| Wind Load | ≤60m/s |
| Snow Load | ≤1.4KN/m² |
| Applicable Module | Framed or Frameless |
| Material | Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. |
| Module Orientation | portrait or landscape |
| Module type | Any type of PV moduels |
| Surface Treatment | Hot Dip Galvanizing & Anodized |
| Warranty | 10 years warranty and 25 years duration |
3. Detailed Introduction:

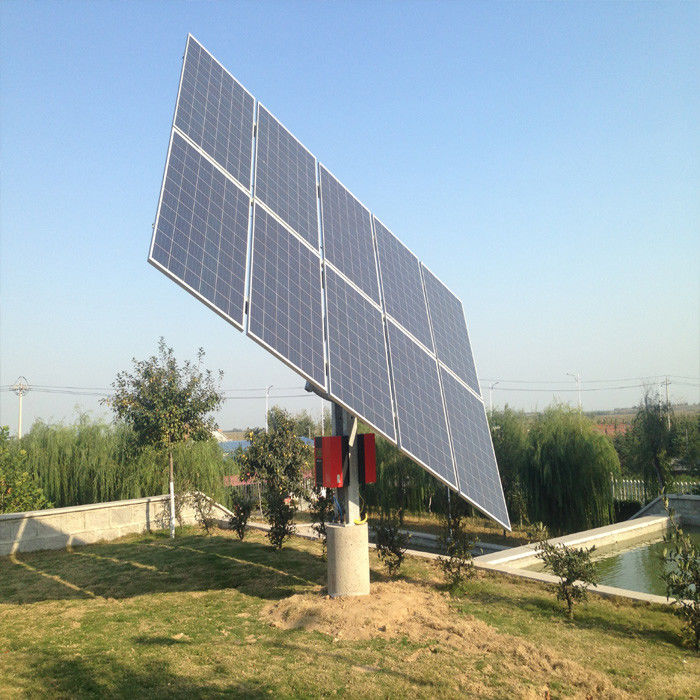

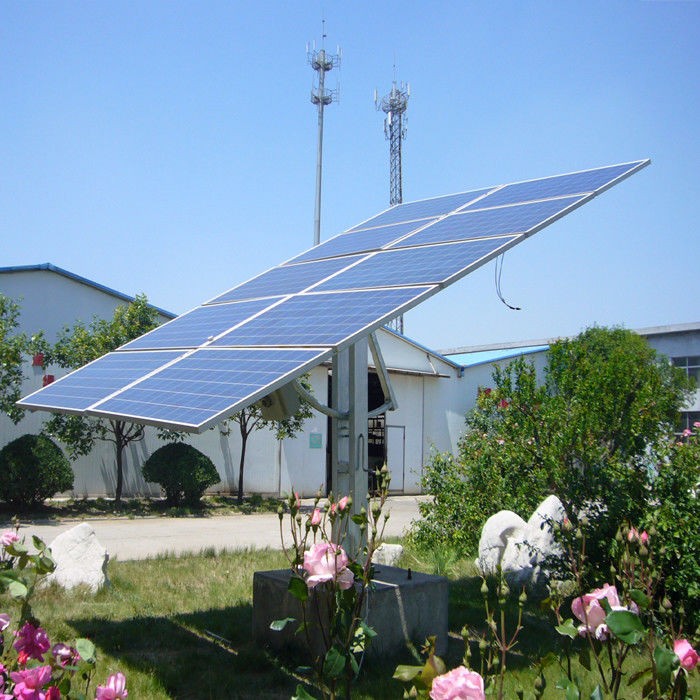

4. Project Display:
5. Company introduction:
6. Main products:
7. Certificates:
8.Packing and delivery:
► Place of loading: Basic Seaport, China
► Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface
► Payment Terms: L/C,D/A,D/P,T/T
► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits
9. Cooperate customers:
10. Projects Gallery:
11. Necessary information:
For the solution and quotation, we need some details as the following
| No. | Item | Remarks |
| 1 | Location, Country of the Projects | |
| 2 | What's Total Capacity of solar Project ? | |
| 3 | Max Wind Speed m/s | |
| 4 | Snow Load (KN/㎡) | |
| 5 | which type landform the ground is ? | |
| A. Offshore Sea and island, coast, lake shore and desert area | YES / NO | |
| B. Fields, villages, jungles, hills and sparse houses and suburbs | YES / NO | |
| C. Urban areas with dense clusters of buildings | YES / NO | |
| D. Urban areas with dense buildings and high houses | YES / NO | |
| 6 | Foundation Forms | |
| A. PHC Pile (pretensioned spun high-strength concrete pile) | YES / NO | |
| B. Ramming Pile; | YES / NO | |
| C. Concrete; | YES / NO | |
| D. Bored Pile; | YES / NO | |
| E. Others | ||
| 7 | Layout of Solar Panels | |
| 8 | how many modules per array | |
| 9 | Size of solar panels | |
| 10 | Installation angle of solar panels | |
| 11 | Panel Weight | |
| 12 | Watts per Solar Panel | |
| 13 | Requirements on Main Materials of Structure | |
| 14 | Requirement on the lowest height between solar panels and ground | mm |
| 15 | How many arrays / units | |
| 16 | other information |
